Bosch AdvancedDrill 18

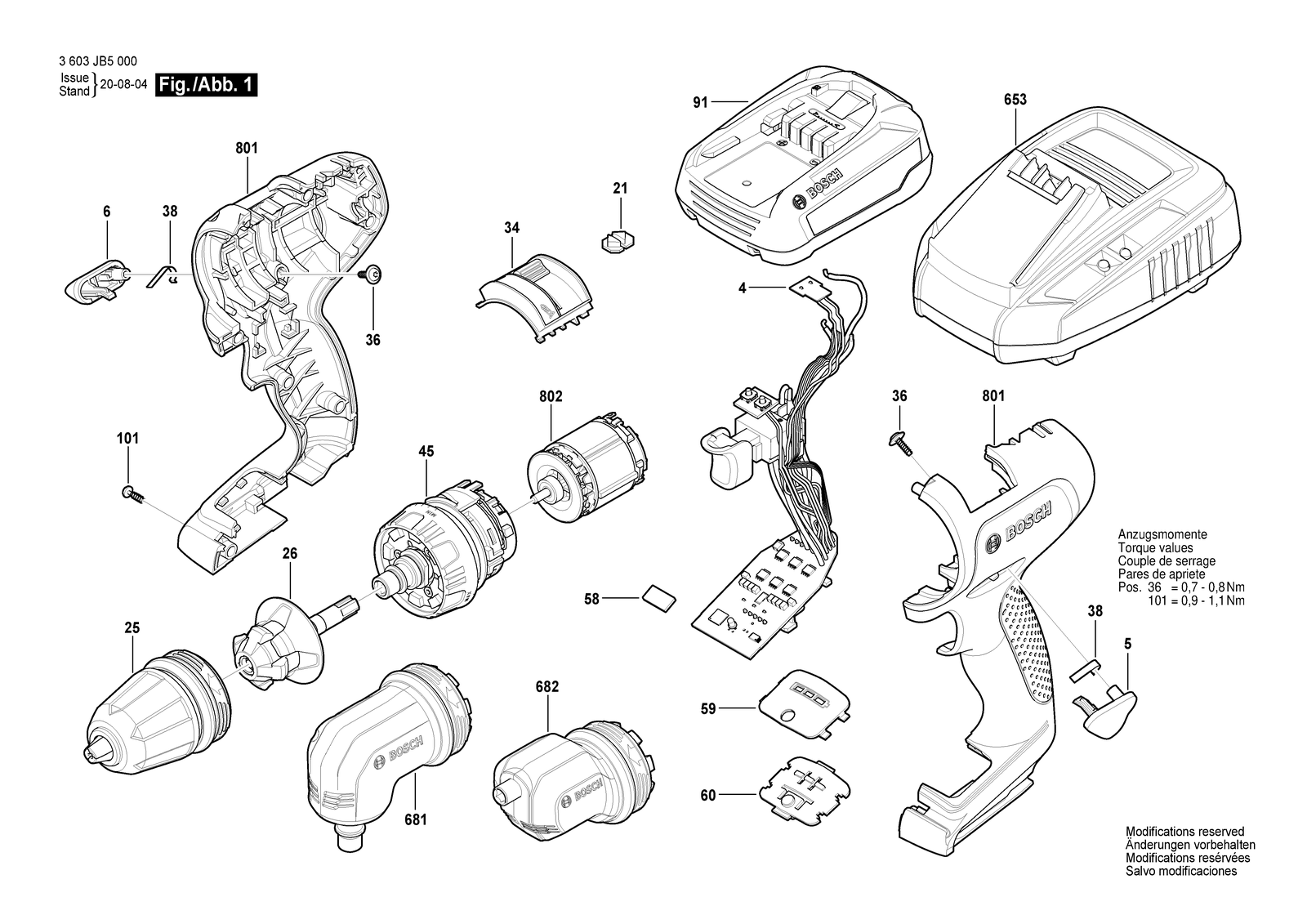

Bosch AdvancedDrill 18 cordless drill driver: exploded parts diagram, 1 sheet, 30 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AdvancedDrill 18: 30 positions on 1 sheet
Bosch AdvancedDrill 18 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 21 | 1600A0142S | Lens |
| 25 | 1600A012DH | Chuck attachment |
| 26 | 1600A0130R | Holding Device |
| 34 | 16055002FM | Housing Cover |
| 34 | 16055002HG | Housing Cover |
| 36 | 1600A00RD6 | Special Screw |
| 38 | 1600A018U7 | Retaining Element |
| 4 | 1600A013Z0 | Electronic Module |
| 4 | 1600A0220T | Electronic Module |
| 45 | 1600A00Z9S | Planetary Gear Train |
| 45 | 1600A022UZ | Planetary Gear Train |
| 5 | 1600A012KT | Changeover Lever |
| 5 | 1600A0220F | Changeover Lever |
| 58 | 1600A01134 | Magnet |
| 59 | 16055002EF | Cover |
| 59 | 16055002HT | Cover |
| 6 | 1600A012KU | Changeover Lever |
| 6 | 1600A0220G | Changeover Lever |
| 60 | 1600A0142R | Lens |
| 653 | 2607225965 | Fast Charger EU AL 1830 CV 230/14,4-18V 1H |
| 653 | 2607225967 | Charger Gb AL 1830 CV 230/14,4-18V 1H |
| 681 | 1600A003UA | Combi Angle Drive |
| 682 | 1600A0077F | Eccentric attachment |
| 801 | 1600A01E3L | Housing |
| 801 | 1600A02440 | Housing |
| 801 | 1600A029Z2 | Housing |
| 802 | 1600A01C44 | DC motor |
| 91 | 1607A350RU | Battery Pack PBA 18V 2,5AH W-b 45WH |
| 91 | 1617S01Y8B | Battery Pack |
