Bosch AdvancedCut 50

Bosch AdvancedCut 50 multi-saw: exploded parts diagram, 2 sheets, 42 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AdvancedCut 50: 42 positions on 2 sheets

Bosch AdvancedCut 50 parts list (2 sheets)

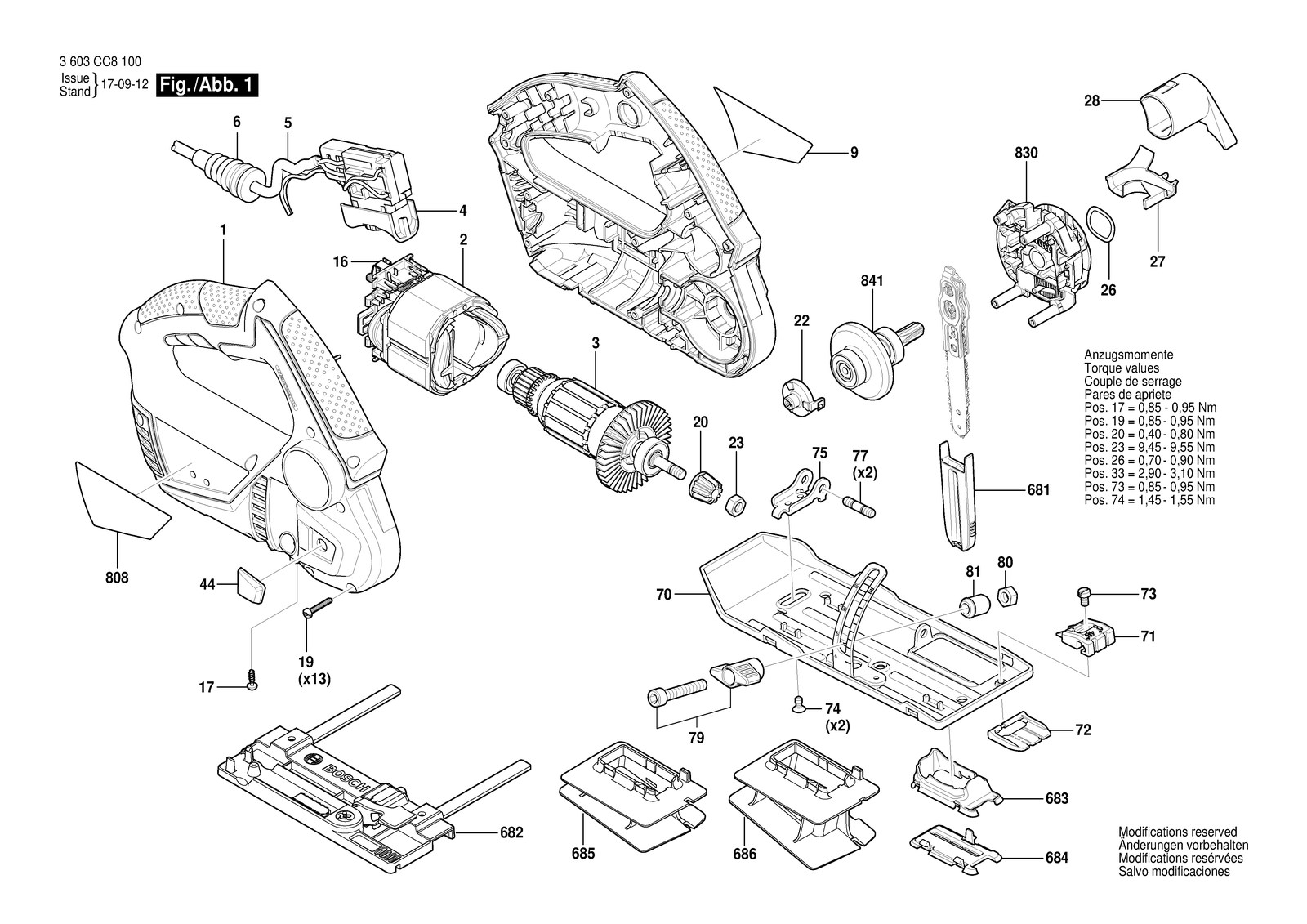

Bosch AdvancedCut 50 parts diagram, sheet 1Bosch AdvancedCut 50 parts diagram, sheet 2
No.Part numberPart name
11600A004K8Housing Assembly
161600A00H2KBrush Plate
172603490017Torx Oval-Head Screw 3X10
192609110201Torx Flat-Head Screw 3X16
22609002875Field 220-240V
201619P02825Bevel Gear
222605500138Adjusting Plate Black
232915011007Hex Nut DIN 934-M6-8-A
262609110294Spring Washer
271600A00875Channel
281600A008BZConnection Part
32609007826Armature
41607200323Switch
44160550029XCover
52604460243Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460259Power supply cord EU 230V 2,7M 2 X 0,75MM H05 Vv-F
52604460297Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F
62609005502Grommet Durchmesser 6,2-6,9
6811600A00J6ZChain Cover
6821600A007SHEdge Guide
6831600A003D8Hood
6841600A003D9Splintering Protector
6851600A004GZDepth gauge
6861600A008W6Depth gauge
701600A007SCBase Plate
711600A002M2Fixing Element
721600A007SBIndicator
732910001116Socket head cap screw DIN 84-M4X6-4.8
742910548118Countersunk-Head Screw
751600A007S9Hinge
771600A007RPBolt
791600A003PRWing Screw
802915011007Hex Nut DIN 934-M6-8-A
808160111A4A3Nameplate
808160111A4A5Nameplate
808160111A4A7Nameplate
808160111A51HNameplate
811600A00H88Rubber Buffer
8301600A00R7BHousing Set
8411607000CA2Shaft
8711607000CM7Service Kit
9160111C0Z3Manufacturer's nameplate Advancecut 50
