Bosch AdvancedCut 18

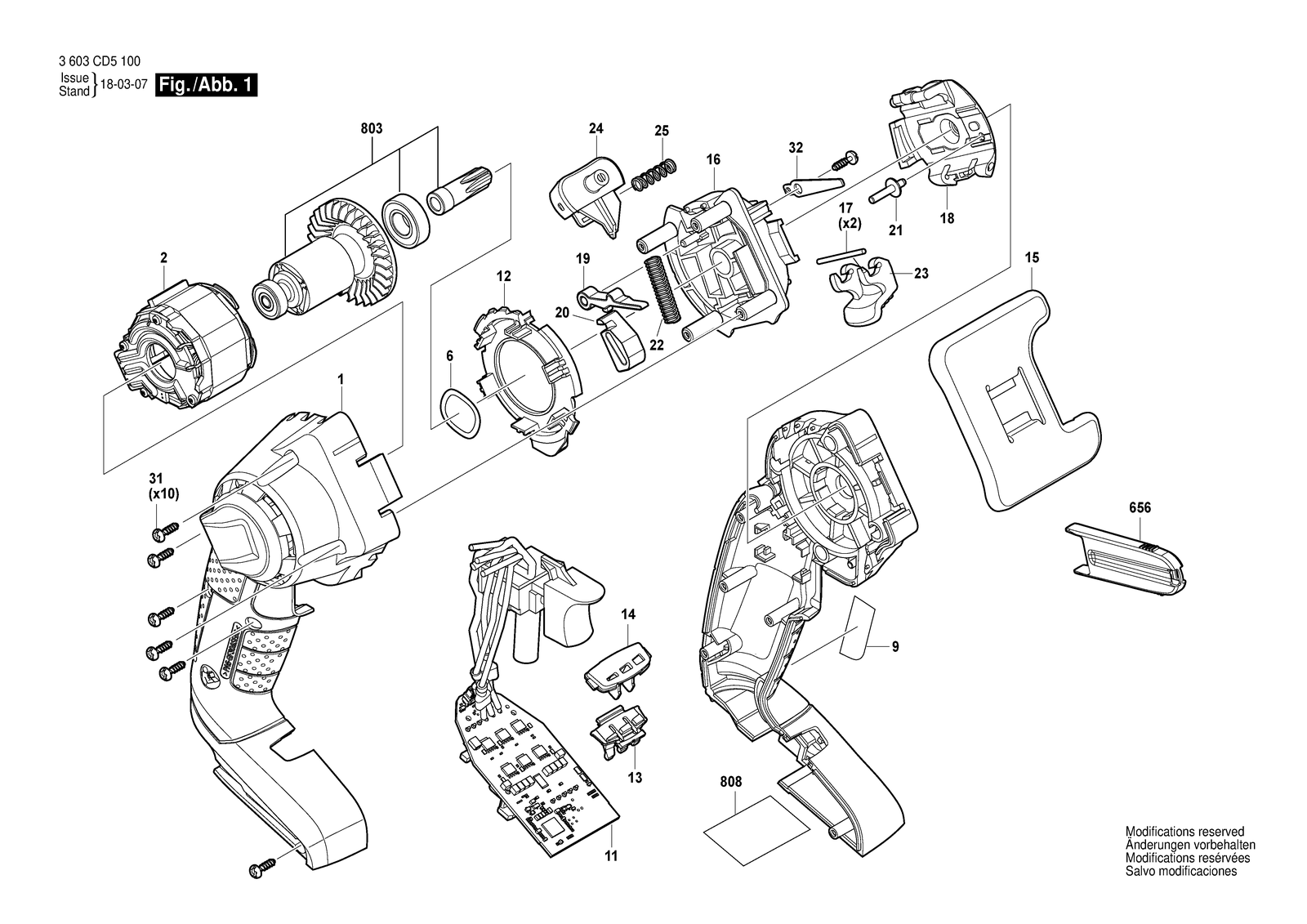

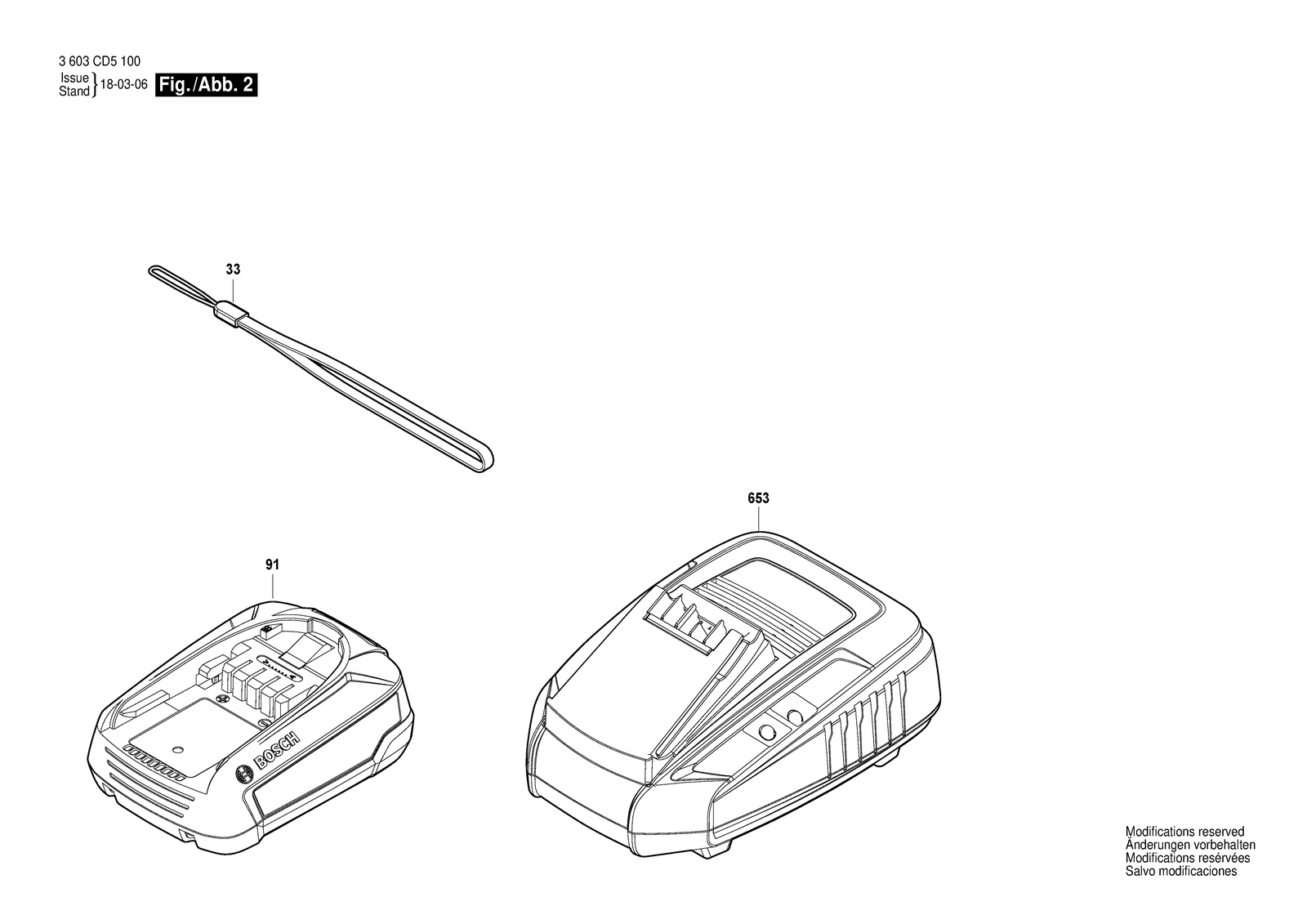

Bosch AdvancedCut 18 cordl reciprocating saw: exploded parts diagram, 2 sheets, 31 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AdvancedCut 18: 31 positions on 2 sheets
Bosch AdvancedCut 18 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1600A00MH8 | Housing |
| 11 | 1600A00HW1 | Electronic Module |
| 12 | 1600A00MH9 | Air Guide Plate |
| 13 | 1600A01226 | Light Conductor |
| 14 | 16055002DE | Cover |
| 15 | 1600A0034V | Base Plate |
| 16 | 16058065DN | Housing Set |
| 17 | 1600A003HJ | Pin |
| 18 | 1600A00495 | Flap |
| 19 | 1600A007RM | Lever |
| 2 | 1619P14497 | Stator |
| 20 | 1600A003SD | Tensioning device |
| 21 | 1600A003SB | Pin |
| 22 | 1604612012 | Compression Spring |
| 23 | 1600A00496 | Clamping Lever |
| 24 | 1600A00MJ2 | Release Lever |
| 25 | 1600A007HY | Spring |
| 31 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 32 | 1600A00F9P | Riving Knife |
| 33 | 1600A00J90 | Carrying Loop |
| 6 | 2609110294 | Spring Washer |
| 653 | 2607225965 | Fast Charger EU AL 1830 CV 230/14,4-18V 1H |
| 653 | 2607225967 | Charger Gb AL 1830 CV 230/14,4-18V 1H |
| 653 | 2607225977 | Fast Charger Rok AL 1830 CV 230/14,4-18V 1H |
| 656 | 1600A00J6Z | Chain Cover |
| 803 | 1600A018W1 | Armature assembly |
| 808 | 160111A6DZ | Nameplate |
| 9 | 160111A5VR | Manufacturer's nameplate Advancedcut 18 |
| 91 | 1607A350RP | Battery Pack PBA 18V 2,0AH W-b |
| 91 | 1607A350RU | Battery Pack PBA 18V 2,5AH W-b 45WH |
| 91 | 2607337259 | Battery Pack PBA 2,5 Ah W-b |
