Bosch AdvancedChain 36V-35-40 chain saw: exploded parts diagram, 3 sheets, 48 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AdvancedChain 36V-35-40: 48 positions on 3 sheets

Bosch AdvancedChain 36V-35-40 parts list (3 sheets)

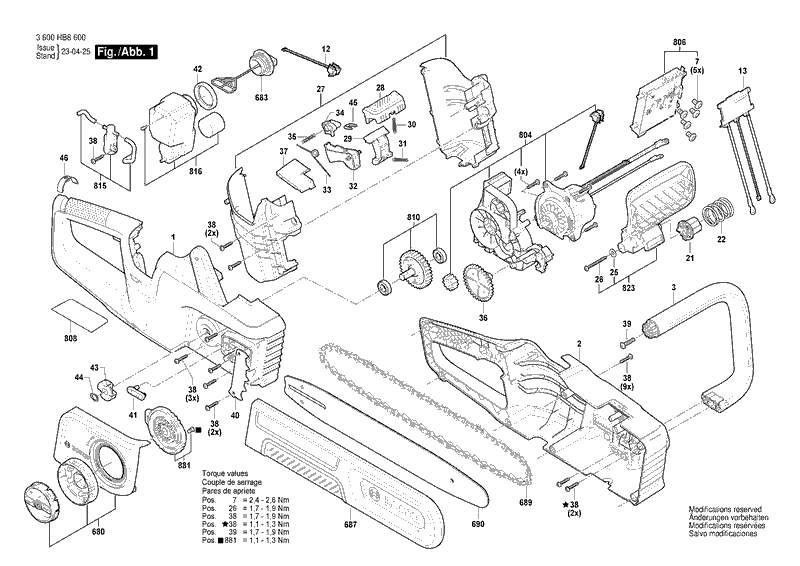

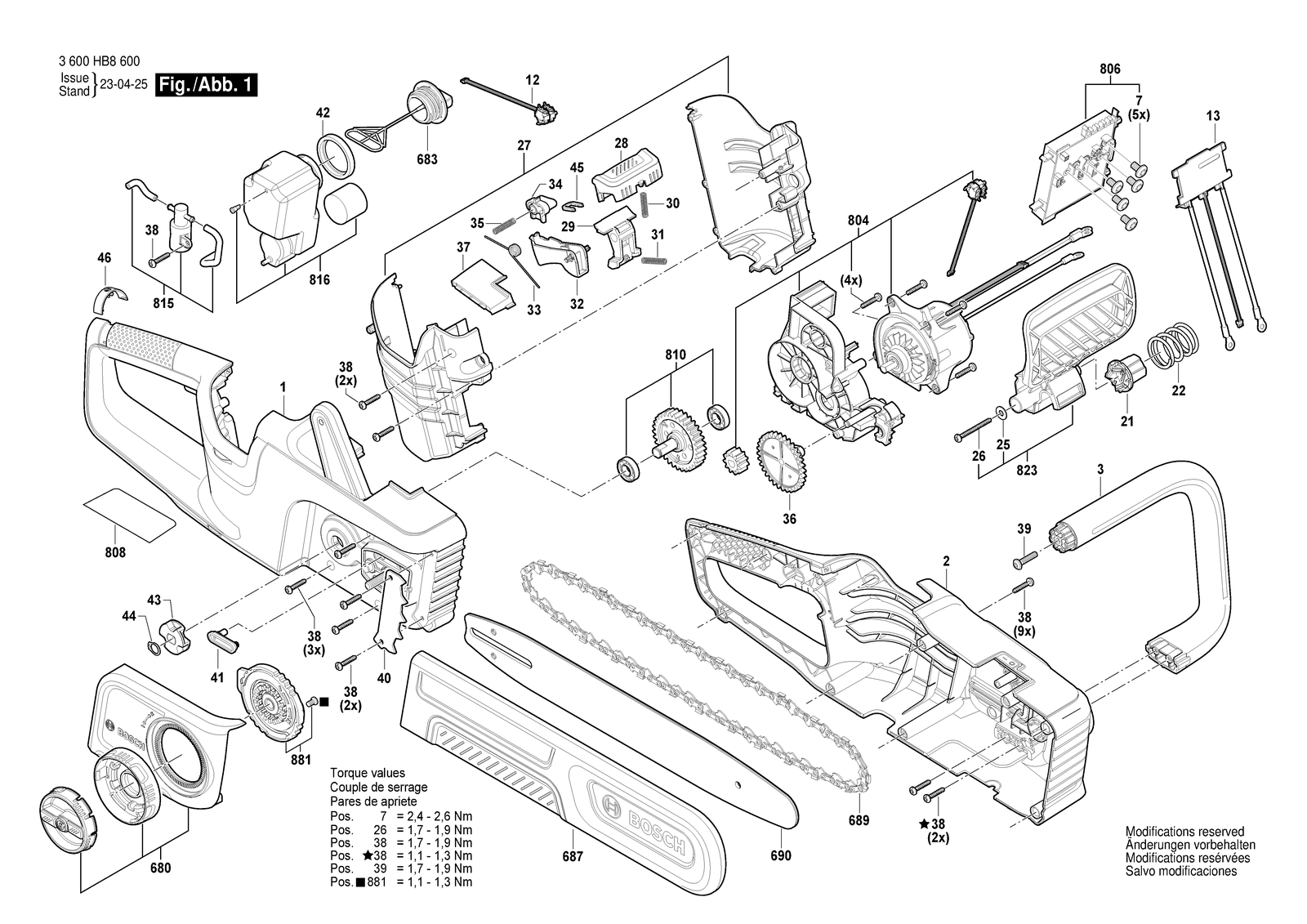

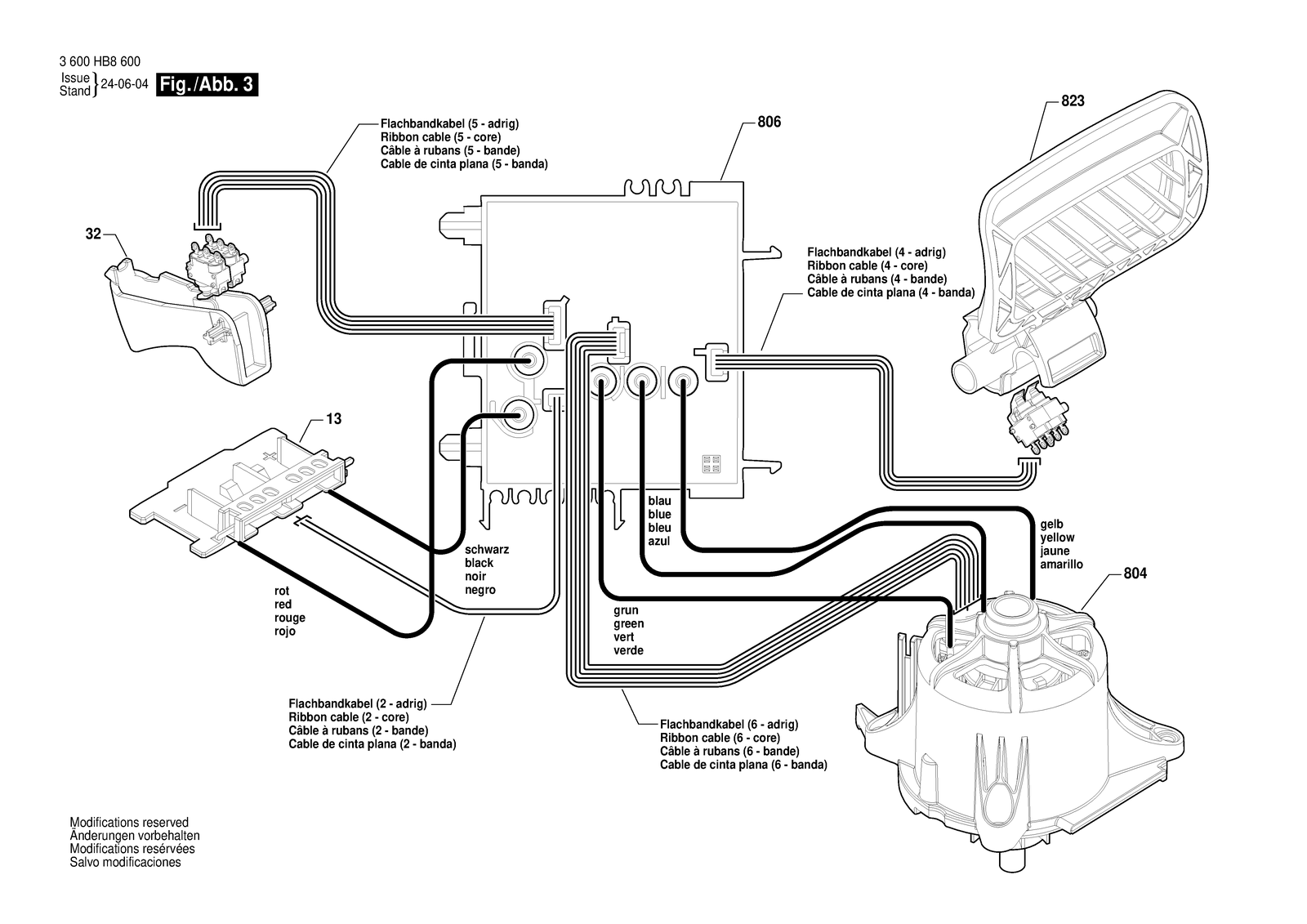

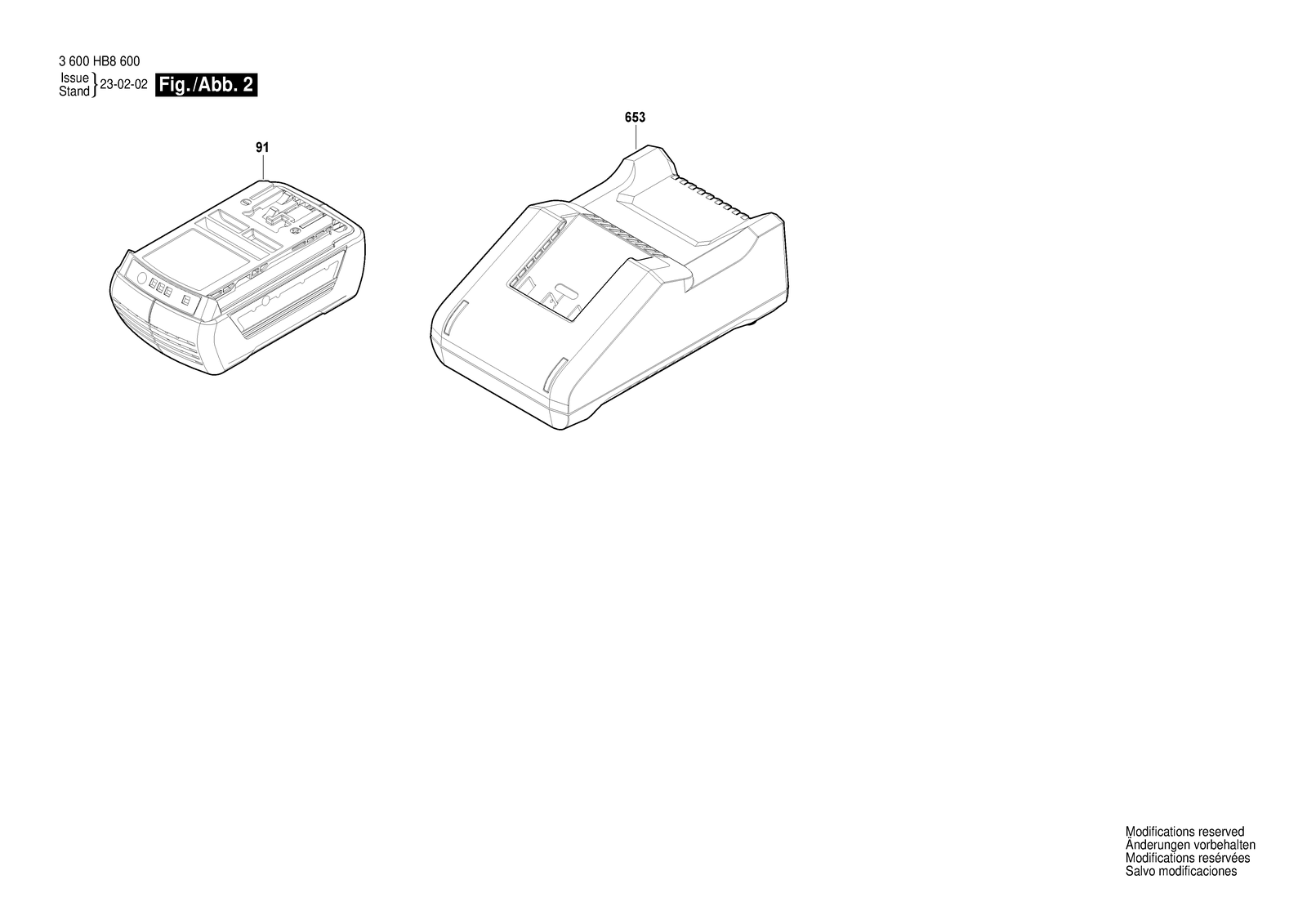

Bosch AdvancedChain 36V-35-40 parts diagram, sheet 1Bosch AdvancedChain 36V-35-40 parts diagram, sheet 2Bosch AdvancedChain 36V-35-40 parts diagram, sheet 3
No.Part numberPart name
11600A0202WHousing
121600A020RKCable Wiring Set
131600A020RJCable Wiring Set
21600A0202XHousing
211600A0263ARatchet
22160461204CSpring
251270020109Plain Washer
262603490027Torx Oval-Head Screw 4X40
271600A02032Battery Housing
281600A02033Button
291600A02034Lever
31605132193Handle
302604618014Compression Spring
312609003320Compression Spring
321600A02035Switch Segment
331600A0265LSpring
341600A02036Safety Switch
35160461204DCompression Spring
361600A020SGWorm-Gear Pair
371600A0203CCover
382603490023Torx Oval-Head Screw 4X20
391600A01N9HOval-Head Screw
401600A0203DSpiked bumper
411600A0258DSealing
421600A015DJSealing
431600A0262YSprocket wheel
442916650001Spring retaining ring DIN 471-10X1MM-FST
452609110537Clip
461600A0202PClip
6532607226273Fast Charger EU AL 36V-20/36V
6532607226275Fast Charger GB 230 AL 36V-20/36V
6532607226277Fast Charger Aus AL 36V-20
6801600A020U7Chain Cover
6831600A027C7RSV Cap
6871600A020C8Chain Guard
6892609007364Saw Chain AKE 35
6901600A015H6Guide Rail 350 MM
7160343003TScrew
8041600A02JN0Brushless DC motor
8061600A02NW0Electronics Module
808160111A8R5Nameplate
8101600A02JN1Gear
8151600A02PT6Pump
8161600A02NW1Tank
8231600A02NW2Protective Shield
8811600A02NW3Adjustment Device
911607A350PZBattery Pack GBA 36V 2,0AH H-b
912607336913Battery Pack 36V 2,0 Ah LI
