Bosch Advanced HedgeCut 68

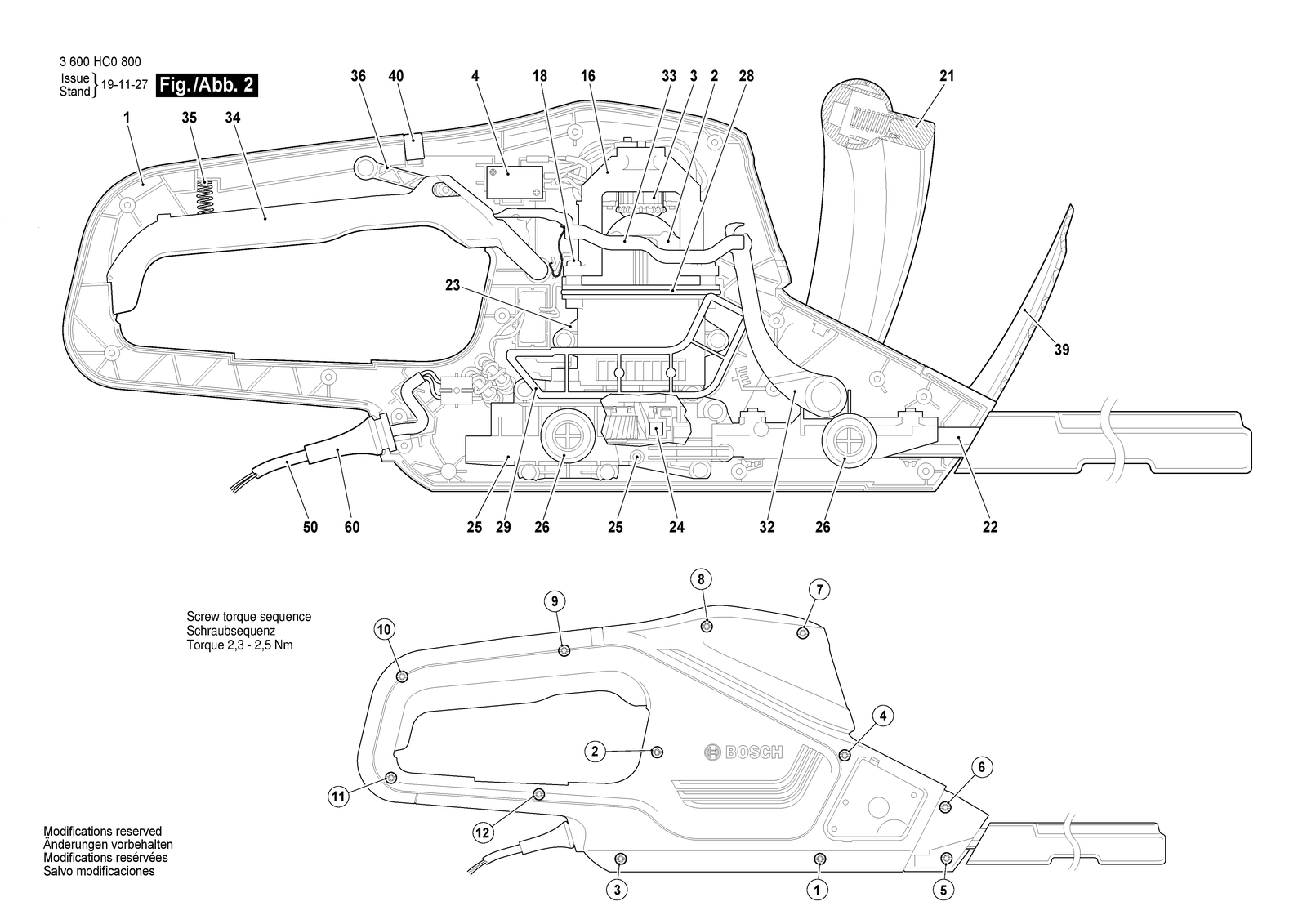

Bosch Advanced HedgeCut 68 hedge trimmer: exploded parts diagram, 2 sheets, 77 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch Advanced HedgeCut 68: 77 positions on 2 sheets
Bosch Advanced HedgeCut 68 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16051082GD | Housing Section |
| 1 | 16058066AF | Housing |
| 1 | 16051082GD | Housing Section |
| 1 | 16058066AF | Housing |
| 16 | 1600A019A3 | Brush Holder |
| 16 | 1600A019A3 | Brush Holder |
| 18 | 2603490022 | Screw 4X16 |
| 18 | 2603490022 | Screw 4X16 |
| 2 | 2609007849 | Field |
| 2 | 2609007849 | Field |
| 21 | 160513218A | Handle |
| 21 | 160513219U | Handle |
| 21 | 160513218A | Handle |
| 21 | 160513219U | Handle |
| 22 | 1600A01A7J | Set of knives |
| 22 | 1600A01A7K | Set of knives |
| 22/12 | 2609005517 | Knife Guard |
| 22/12 | 2609005517 | Knife Guard |
| 23 | 16051082GF | Housing Section |
| 23 | 16051082GF | Housing Section |
| 24 | 1600A01785 | Parallel Key |
| 24 | 1600A01785 | Parallel Key |
| 26 | 1600A013GT | Holder |
| 26 | 1600A013GT | Holder |
| 27 | 1600A019UW | Wave spring |
| 27 | 1600A019UW | Wave spring |
| 28 | 1600210086 | O-Ring |
| 28 | 1600210086 | O-Ring |
| 29 | 1600A01611 | Frame |
| 29 | 1600A01611 | Frame |
| 3 | 2609007851 | Armature |
| 3 | 2609007851 | Armature |
| 30 | 1600A01612 | Frame |
| 30 | 1600A01612 | Frame |
| 32 | 1600A01338 | Shaft |
| 32 | 1600A01338 | Shaft |
| 33 | 1600A0152D | Lever |
| 33 | 1600A0152D | Lever |
| 34 | 1600A015YS | Switch Segment |
| 34 | 1600A0285X | Switch Segment |
| 34 | 1600A015YS | Switch Segment |
| 34 | 1600A0285X | Switch Segment |
| 35 | 2604610028 | Compression Spring |
| 35 | 2604610028 | Compression Spring |
| 36 | 1600A0196E | Lever |
| 36 | 1600A0196E | Lever |
| 37 | 1600A017B9 | Trim Plate |
| 37 | 1600A017B9 | Trim Plate |
| 38 | 1600A017BA | Trim Plate |
| 38 | 1600A017BA | Trim Plate |
| 39 | 1600A0133U | Guard Segment |
| 39 | 1600A0133U | Guard Segment |
| 4 | 160422056C | Cable Wiring Set |
| 4 | 160422056C | Cable Wiring Set |
| 40 | 1600A01614 | Cover |
| 40 | 1600A01614 | Cover |
| 42 | 160111C3E7 | Warning Label |
| 42 | 160111C3E7 | Warning Label |
| 5 | 1600A02A21 | Power supply cord GB 230 0,4M 2X1,0MM H05 Vv-F |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460182 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 1600A02A21 | Power supply cord GB 230 0,4M 2X1,0MM H05 Vv-F |
| 5 | 2604460182 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 6 | 2609002019 | Grommet |
| 6 | 2609002019 | Grommet |
| 808 | 160111A7PE | Nameplate |
| 808 | 160111A7PG | Nameplate |
| 808 | 160111A7PJ | Nameplate |
| 808 | 160111A8WT | Nameplate |
| 808 | 160111A8WU | Nameplate |
| 808 | 160111A8WV | Nameplate |
| 808 | 160111A7PF | Nameplate |
| 808 | 160111A7PH | Nameplate |
| 808 | 160111A8MV | Nameplate |
| 808 | 160111A8WW | Nameplate |
| 808 | 160111A8WX | Nameplate |
| 808 | 160111A8X0 | Nameplate |
