Makita AC320H: exploded parts diagram, 2 sheets, 156 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita AC320H: 156 positions on 2 sheets
Sheet 1: Makita AC320H parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | AM1101239A | Makita AM1101239A DUST COVER CAP |
| 2 | AM1101238A | Makita AM1101238A DUST COVER |
| 3 | AM1101211A | Makita AM1101211A SWITCH |
| 4 | AM1101280A | Makita AM1101280A OPERATION PANEL ASSY |
| 5 | AM1101254A | Makita AM1101254A TAPPING SCREW 5 |
| 9 | AM1101232A | Makita AM1101232A COVER COMPLETE,BLACK |
| 10 | AM1101231A | Makita AM1101231A PAN HEAD SCREW M5 |
| 11 | AM1101254A | Makita AM1101254A TAPPING SCREW 5 |
| 12 | AM0802354A | Makita AM0802354A HEXAGONAL HEADEDBOLT |
| 13 | AM0802278A | Makita AM0802278A CUSHION |
| 14 | AM0801992A | Makita AM0801992A CASTER COMPLETE R |
| 15 | AM1101219A | Makita AM1101219A PRESSURE GAUGE 35 |
| 16 | AM0801875C | Makita AM0801875C PRESSURE GAUGEMANIFOLD |
| 17 | AM0207700D | Makita AM0207700D BARREL NIPPLE 1/4" |
| 18 | AM1101224A | Makita AM1101224A REGULATOR H |
| 19 | AM0801617B | Makita AM0801617B TAPER SCREW PLUG1/16 |
| 20 | AM0801874F | Makita AM0801874F COUPLER MANIFOLDHIGH PRESSURE |
| 21 | AM1101229A | Makita AM1101229A QUICK COUPLER H R1/4 |
| 22 | AM1101229A | Makita AM1101229A QUICK COUPLER H R1/4 |
| 23 | AM00801599 | Makita AM00801599 BARREL NIPPLE R1/4 |
| 24 | AM1101208A | Makita AM1101208A COVER PLATE |
| 25 | AM00801599 | Makita AM00801599 BARREL NIPPLE R1/4 |
| 26 | AM1101222A | Makita AM1101222A PRESSURE SENSOR |
| 27 | AM1101230A | Makita AM1101230A RELIEF VALVE |
| 29 | AM0801324D | Makita AM0801324D FOOT B |
| 30 | AM1101221A | Makita AM1101221A HANDLE |
| 31 | AMAF350791 | Makita AMAF350791 PAN HEAD SCREW M6X14 |
| 32 | AM1101209A | Makita AM1101209A DRAIN GUARD |
| 33 | 344222-5 | |
| 34 | 911234-9 | Makita 911234-9 PAN HEAD SCREW M5X20 |
| 35 | AM1101241A | Makita AM1101241A O-RING P18 |
| 36 | AM1101240B | Makita AM1101240B INSPECTION HOLE PLUG |
| 37 | AM1101218A | Makita AM1101218A PRESSURE GAUGE 15 |
| 38 | AM0801875C | Makita AM0801875C PRESSURE GAUGEMANIFOLD |
| 39 | AM0207700D | Makita AM0207700D BARREL NIPPLE 1/4" |
| 40 | AM1101217A | Makita AM1101217A REGULATOR L |
| 41 | AM1101208A | Makita AM1101208A COVER PLATE |
| 42 | AM00801599 | Makita AM00801599 BARREL NIPPLE R1/4 |
| 43 | AM00801599 | Makita AM00801599 BARREL NIPPLE R1/4 |
| 44 | AM0801617B | Makita AM0801617B TAPER SCREW PLUG1/16 |
| 45 | AM0801873E | Makita AM0801873E COUPLER MANIFOLD LOWPRESSURE |
| 46 | AM1101228A | Makita AM1101228A ONE TOUCH JOINT 20SM |
| 47 | AM1101228A | Makita AM1101228A ONE TOUCH JOINT 20SM |
| 48 | AM0801313D | Makita AM0801313D FOOT A |
| 49 | AM0801899A | Makita AM0801899A HALF UNION 6-R1/8 |
| 50 | AM1101251A | Makita AM1101251A DRAIN PIPE |
| 51 | AM0801897A | Makita AM0801897A ELBOW 6-R1/8 |
| 52 | AM0801386D | Makita AM0801386D DRAIN SOCKET |
| 53 | AM0801307D | Makita AM0801307D DRAIN COCK |
| 54 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 56 | AM0801895A | Makita AM0801895A TAP TICHT LOW-HEAD5X12 |
| 57 | AM1101216A | |
| 58 | 911114-9 | Makita 911114-9 PAN HEAD SCREW M4X10 |
| 59 | AM1101231A | Makita AM1101231A PAN HEAD SCREW M5 |
| 60 | AM1101258A | Makita AM1101258A DRIVER COVER |
| 61 | AM1101226C | |
| 63 | 911114-9 | Makita 911114-9 PAN HEAD SCREW M4X10 |
| 64 | AM0801971A | |
| 65 | 911234-9 | Makita 911234-9 PAN HEAD SCREW M5X20 |
| 66 | 344222-5 | |
| 67 | AM00801626 | Makita AM00801626 FOOT RUBBER |
| 68 | AM0801431A | Makita AM0801431A TRUSS HEAD SCREWM5X14 |
| 69 | AM0801993A | Makita AM0801993A CASTER COMPLETE L |
| 70 | AM1101212A | Makita AM1101212A CORD BUSHING |
| 71 | AM1101220A | |
| 72 | 652014-1 | Makita 652014-1 PAN HEAD SCREW M4X8 |
| 73 | AM00801598 | Makita AM00801598 ELBOW 10-R1/4 |
| 74 | AM0802313A | Makita AM0802313A PIPE 10 |
| 75 | AM0801897A | Makita AM0801897A ELBOW 6-R1/8 |
| 76 | AM1101227A | Makita AM1101227A PIPE 6 |
| 77 | AM0801897A | Makita AM0801897A ELBOW 6-R1/8 |
| 78 | AM0801960A | Makita AM0801960A PAN HEAD SCREWM6X25 |
| 79 | AM0801960A | Makita AM0801960A PAN HEAD SCREWM6X25 |
| 80 | AM1101221A | Makita AM1101221A HANDLE |
| 81 | AM0207700D | Makita AM0207700D BARREL NIPPLE 1/4" |
| 82 | AM0801876C | Makita AM0801876C PRESSURE SWITCHMANIFOLD |
| 83 | AM0502509B | Makita AM0502509B PLUG R1/8 |
| 84 | AM0502509B | Makita AM0502509B PLUG R1/8 |
| 85 | AM0502509B | Makita AM0502509B PLUG R1/8 |
| 86 | AM1101213A | Makita AM1101213A PRESSURE GAUGE 6.0 |
| 87 | AM1101252A | Makita AM1101252A RESET HARNESS |
| 88 | AM1101244A | Makita AM1101244A SWITCH HARNESS |
| 89 | AM1101253A | Makita AM1101253A PLUG HARNESS |
| 90 | AM1101242A | Makita AM1101242A PANEL HARNESS |
| 91 | AM1101223A | Makita AM1101223A SENSOR HARNESS |
| 162 | AMAF350767 | Makita AMAF350767 PAN HEAD SCREWM5X10 |
| 163 | AM1101272A | Makita AM1101272A CABLE CLIP NE-8 |
| 164 | 911114-9 | Makita 911114-9 PAN HEAD SCREW M4X10 |
| 165 | AM1101270A | Makita AM1101270A CLOSED-END CONNECTOR |
| 166 | AM1101271A | Makita AM1101271A CABLE CLIP NE-6 |

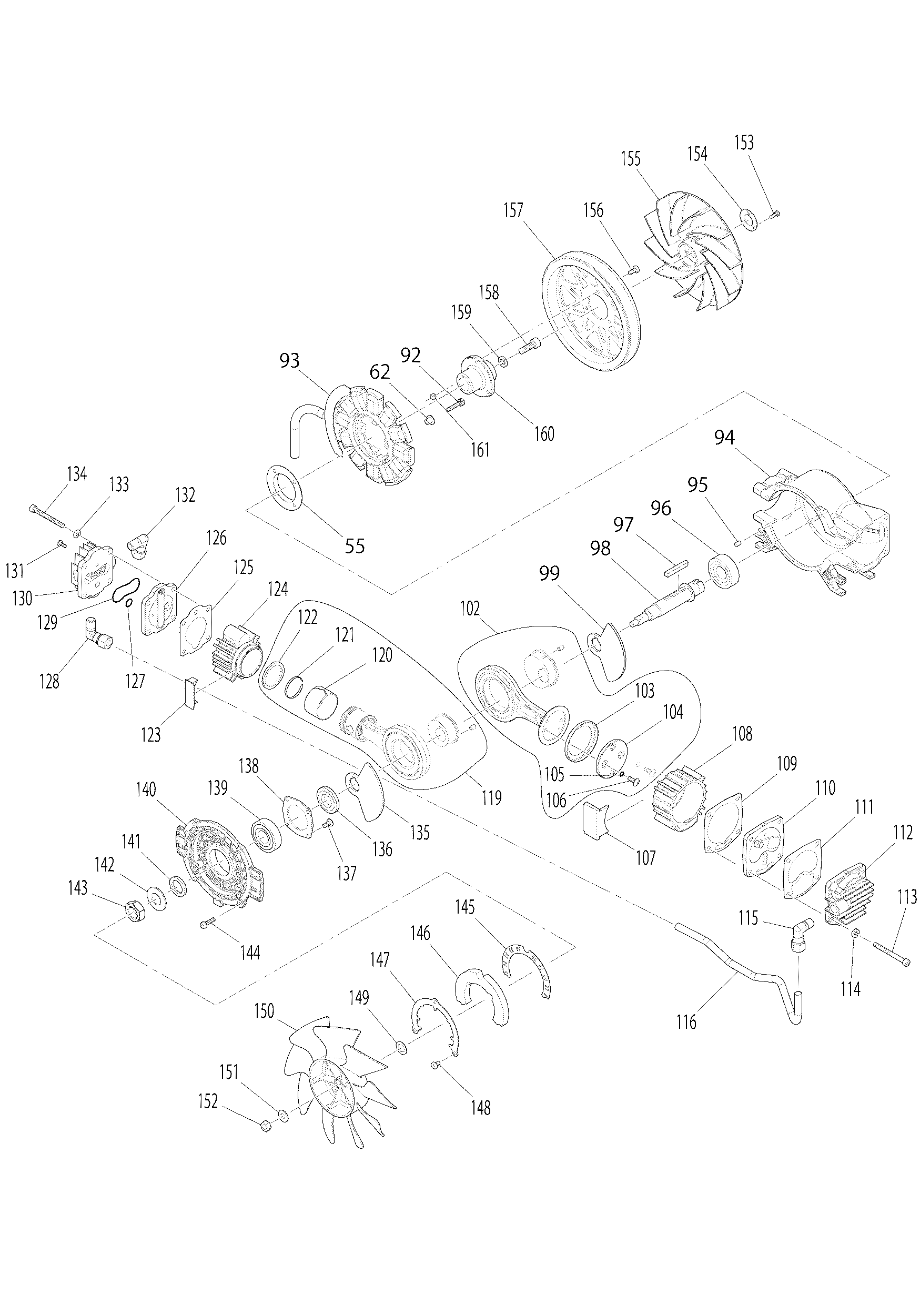

Sheet 2: Makita AC320H parts diagram
| No. | Part number | Part name |
|---|---|---|
| 55 | AM1101278B | Makita AM1101278B SPACER L |
| 62 | AM1101279A | Makita AM1101279A SPACER S |
| 92 | AMAF350774 | Makita AMAF350774 PAN HEAD SCREW M5 |
| 93 | AM1101225C | |
| 94 | AM1101275A | |
| 95 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 96 | AM0801886A | Makita AM0801886A BALL BEARING 6204 |
| 97 | AM0801323A | Makita AM0801323A KEY 6 |
| 98 | AM0802277A | |
| 99 | AM0802274A | Makita AM0802274A BALANCER |
| 103 | AM0801905A | Makita AM0801905A LIP RING |
| 104 | AM0503188E | Makita AM0503188E FIXED RING |
| 105 | AM00503229 | Makita AM00503229 O-RING S5 |
| 106 | AM00503242 | Makita AM00503242 TRUSS HEAD SCREWM5X14 |
| 107 | AM0802281A | Makita AM0802281A STUFFING L |
| 108 | AM0802344A | Makita AM0802344A CYLINDER L |
| 109 | AM0801359F | Makita AM0801359F CYLINDER GASKET L |
| 110 | AM0802119A | Makita AM0802119A BULB PLATE CPL. L |
| 111 | AM0801361F | Makita AM0801361F HEAD GASKET L |
| 112 | AM0801363D | Makita AM0801363D CYLINDER HEAD L |
| 113 | AM00801591 | Makita AM00801591 HEX SOCKET HEAD BOLTM6X60 |
| 114 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 115 | AM00801598 | Makita AM00801598 ELBOW 10-R1/4 |
| 116 | AM1101273A | Makita AM1101273A PIPE 10 |
| 120 | AM0802258A | Makita AM0802258A WEARING |
| 121 | AM0802256A | Makita AM0802256A LEAF SPRING 94H |
| 122 | AM0802257A | Makita AM0802257A SHEET RING 41 |
| 123 | AM0802282A | Makita AM0802282A STUFFING H |
| 124 | AM0802252A | Makita AM0802252A CYLINDER H |
| 125 | AM0802268A | Makita AM0802268A CYLINDER GASKET H |
| 126 | AM0802326A | Makita AM0802326A BULB PLATE CPL. H |
| 127 | AM00801589 | Makita AM00801589 O-RING S12 |
| 128 | AM00801598 | Makita AM00801598 ELBOW 10-R1/4 |
| 129 | AM00801578 | Makita AM00801578 O-RING S42 |
| 130 | AM0802323A | Makita AM0802323A HEAD UNIT |
| 131 | AMAF456457 | Makita AMAF456457 TAPPING SCREW 4X12 |
| 132 | AM00801598 | Makita AM00801598 ELBOW 10-R1/4 |
| 133 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 134 | AM00801591 | Makita AM00801591 HEX SOCKET HEAD BOLTM6X60 |
| 135 | AM0802274A | Makita AM0802274A BALANCER |
| 136 | AM0802356A | Makita AM0802356A SPACER |
| 137 | AM0801895A | Makita AM0801895A TAP TICHT LOW-HEAD5X12 |
| 138 | AM0801717B | Makita AM0801717B BEARING RETAINERF 41.5 |
| 139 | AM0801886A | Makita AM0801886A BALL BEARING 6204 |
| 140 | AM0802276A | Makita AM0802276A BEARING CASE F |
| 141 | AM0801884A | Makita AM0801884A BEARING SPACER |
| 142 | AM0801442B | Makita AM0801442B CONED DISC SPRING 18 |
| 143 | AMAF430730 | Makita AMAF430730 HEX NUT M18 |
| 144 | 911234-9 | Makita 911234-9 PAN HEAD SCREW M5X20 |
| 145 | AM0802290A | Makita AM0802290A FILTER GASKET |
| 146 | AM0802284A | Makita AM0802284A FILTER |
| 147 | AM0802283A | Makita AM0802283A FILTER COVER |
| 148 | AM00502451 | Makita AM00502451 TAPPING SCREW 5X8 |
| 149 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 150 | AM0801391E | Makita AM0801391E FAN 190 |
| 151 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 152 | 931402-8 | Makita 931402-8 Hex Nut M8 5037Nb |
| 153 | AMAF350385 | Makita AMAF350385 PAN HEAD SCREWM14X12 |
| 154 | AM0801889A | Makita AM0801889A PLATE. TURBO |
| 155 | AM0801926B | |
| 156 | AMAF350767 | Makita AMAF350767 PAN HEAD SCREWM5X10 |
| 157 | AM0802028A | Makita AM0802028A ROTOR |
| 158 | AM0801940A | Makita AM0801940A HEX SOCKET HEAD BOLTM8X25 |
| 159 | AMAF450405 | Makita AMAF450405 SPRING WASHER 8 |
| 160 | AM1101276A | Makita AM1101276A ROTOR SPACER |
| 161 | AM0802279A | Makita AM0802279A KEY 6 |
