Makita AC310H: exploded parts diagram, 2 sheets, 159 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita AC310H: 159 positions on 2 sheets

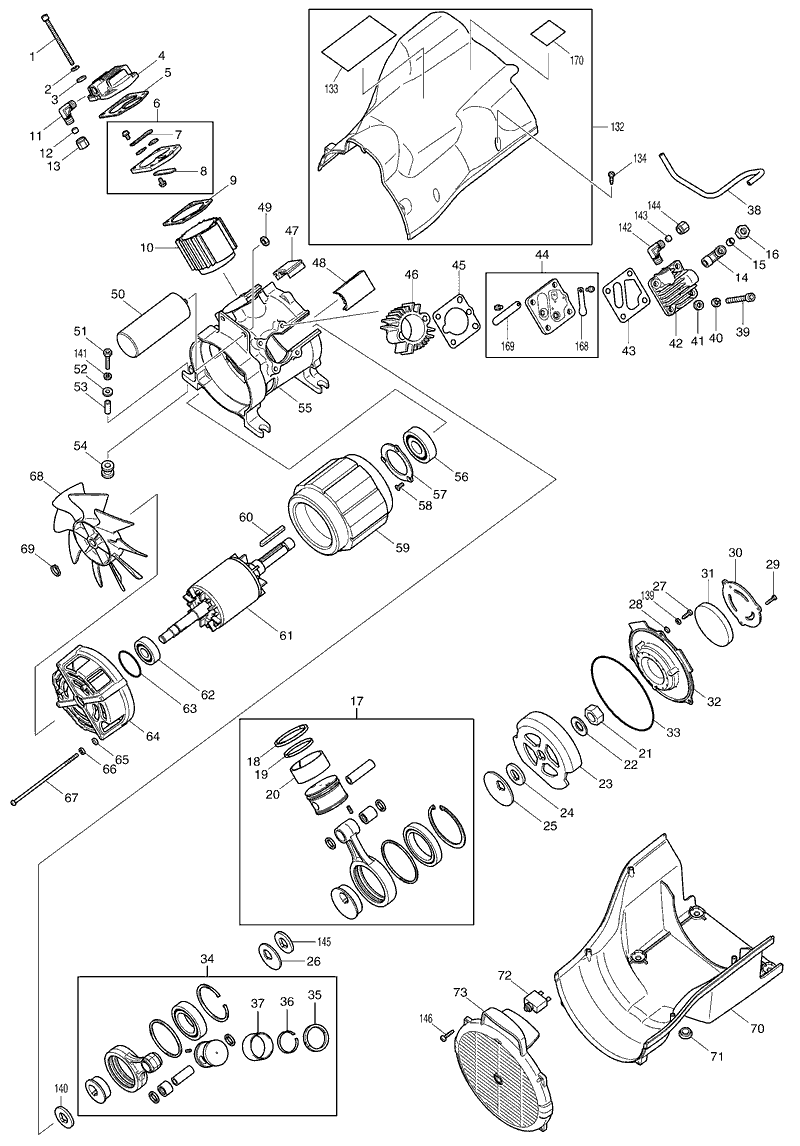

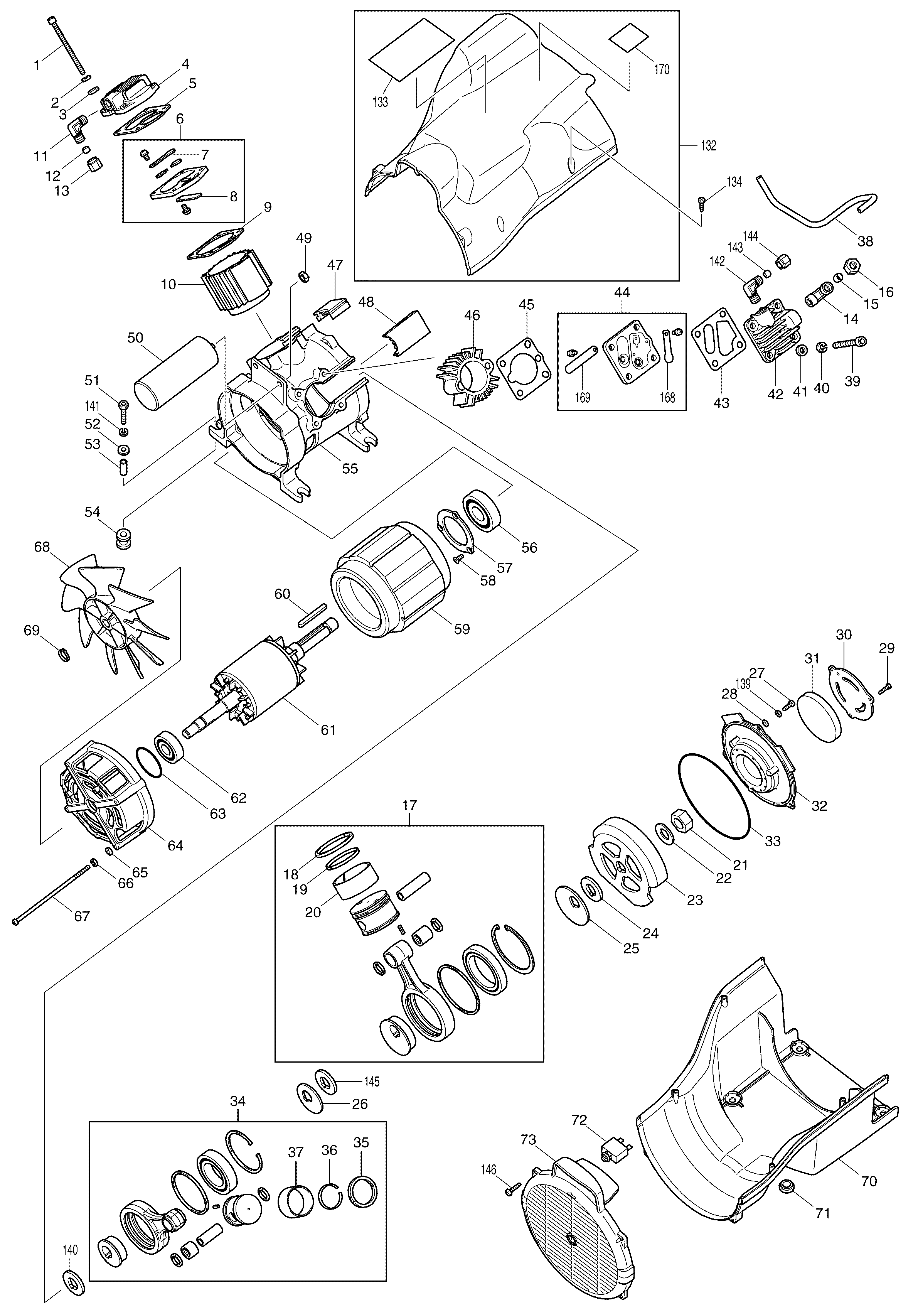

Sheet 1: Makita AC310H parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | HY00000213 | Makita HY00000213 HEX SOCKET HEAD BOLT M6*90, AC310H |
| 2 | HY00000214 | Makita HY00000214 SPRING WASHER 6, AC310H |
| 3 | HY00000215 | Makita HY00000215 FLAT WASHER 6, AC310H |
| 4 | HY00000216 | Makita HY00000216 CYLINDER HEAD L, AC310H |
| 5 | HY00000217 | Makita HY00000217 HEAD GASKET L, AC310H |
| 7 | HY00000219 | Makita HY00000219 OUTLET VALVE, AC310H |
| 8 | HY00000220 | Makita HY00000220 INLET VALVE, AC310H |
| 9 | HY00000221 | Makita HY00000221 CYLINDER GASKET L, AC310H |
| 10 | HY00000223 | Makita HY00000223 CYLINDER L(50HZ), AC310H |
| 11 | HY00000224 | Makita HY00000224 ELBOW 8-R1/4, AC310H |
| 12 | HY00000225 | Makita HY00000225 RING 8, AC310H |
| 13 | HY00000226 | Makita HY00000226 RING NUT 8, AC310H |
| 14 | HY00000227 | Makita HY00000227 ELBOW 10-R3/8, AC310H |
| 15 | HY00000228 | Makita HY00000228 RING 10, AC310H |
| 16 | HY00000229 | Makita HY00000229 RING NUT 10, AC310H |
| 18 | HY00000231 | Makita HY00000231 SHEET RING L, AC310H |
| 19 | HY00000232 | Makita HY00000232 LEAF SPRING L, AC310H |
| 20 | HY00000233 | Makita HY00000233 WEARING L, AC310H |
| 21 | HY00000234 | Makita HY00000234 HEX NUT M18, AC310H |
| 22 | HY00000235 | Makita HY00000235 CONED DISC SPRING 18, AC310H |
| 23 | HY00000237 | Makita HY00000237 BALANCER (50HZ), AC310H |
| 24 | HY00000238 | Makita HY00000238 SPACER, AC310H |
| 25 | HY00000239 | Makita HY00000239 CRANK SPACER L, AC310H |
| 26 | HY00000240 | Makita HY00000240 CRANK SPACER H, AC310H |
| 27 | HY00000241 | Makita HY00000241 PAN HEAD SCREW M5X16, AC310H |
| 28 | HY00000242 | Makita HY00000242 FLAT WASHER 5, AC310H |
| 29 | HY00000243 | Makita HY00000243 TAPPING SCREW 4X18, AC310H |
| 30 | HY00000244 | Makita HY00000244 FILTER COVER, AC310H |
| 31 | HY00000245 | Makita HY00000245 Filter for AC310H |
| 32 | HY00000246 | Makita HY00000246 CRANK CASE COVER, AC310H |
| 33 | HY00000247 | Makita HY00000247 O-RING 147, AC310H |
| 35 | HY00000249 | Makita HY00000249 SHEET RING H, AC310H |
| 36 | HY00000250 | Makita HY00000250 LEAF SPRING H, AC310H |
| 37 | HY00000251 | Makita HY00000251 WEARING H, AC310H |
| 38 | HY00000252 | Makita HY00000252 PIPE 8, AC310H |
| 39 | HY00000253 | Makita HY00000253 HEX SOCKET HEAD BOLT M8*70, AC310H |
| 40 | HY00000254 | Makita HY00000254 FLAT WASHER 8, AC310H |
| 41 | HY00000255 | Makita HY00000255 SPRING WAHSER 8, AC310H |
| 42 | HY00000256 | Makita HY00000256 CYLINDER HEAD H, AC310H |
| 43 | HY00000257 | Makita HY00000257 HEAD GASKET H, AC310H |
| 45 | HY00000259 | Makita HY00000259 CYLINDER GASKET H, AC310H |
| 46 | HY00000261 | Makita HY00000261 CYLINDER H(50HZ), AC310H |
| 47 | HY00000262 | Makita HY00000262 STAFFING L, AC310H |
| 48 | HY00000263 | Makita HY00000263 STAFFING H, AC310H |
| 49 | HY00000264 | Makita HY00000264 HEX NUT M8, AC310H |
| 50 | HY00000266 | Makita HY00000266 CAPACITOR RUN ASSEMBLY, AC310H |
| 51 | HY00000267 | Makita HY00000267 HEX SOCKET HEAD BOLT M6X40, AC310H |
| 52 | HY00000268 | Makita HY00000268 FLAT WASHER 6, AC310H |
| 53 | HY00000269 | Makita HY00000269 SLEEVE 6, AC310H |
| 54 | HY00000270 | Makita HY00000270 CUSHION, AC310H |
| 55 | HY00000271 | Makita HY00000271 CRANK CASE, AC310H |
| 56 | HY00000272 | Makita HY00000272 BALL BEARING 6305LLB, AC310H |
| 57 | HY00000273 | Makita HY00000273 BEARING RETAINER, AC310H |
| 58 | HY00000274 | Makita HY00000274 COUNTERSUNK HEAD SCREW M5X12, AC310H |
| 59 | HY00000276 | Makita HY00000276 STATOR, AC310H |
| 60 | HY00000277 | Makita HY00000277 KEY 6, AC310H |
| 61 | HY00000278 | Makita HY00000278 ROTOR, AC310H |
| 62 | HY00000279 | Makita HY00000279 BALL BEARING 6303LLB, AC310H |
| 63 | HY00000280 | Makita HY00000280 O-RING 49, AC310H |
| 64 | HY00000281 | Makita HY00000281 REAR BRACKET, AC310H |
| 65 | HY00000242 | Makita HY00000242 FLAT WASHER 5, AC310H |
| 66 | HY00000282 | Makita HY00000282 SPRING WASHER 5, AC310H |
| 67 | HY00000283 | Makita HY00000283 HEX BOLT M5X146, AC310H |
| 68 | HY00000284 | Makita HY00000284 FAN 195, AC310H |
| 69 | HY00000285 | Makita HY00000285 RETAINING RING 14, AC310H |
| 70 | HY00000286 | Makita HY00000286 MOTOR COVER 8, AC310H |
| 71 | HY00000287 | Makita HY00000287 BUSHING, AC310H |
| 72 | HY00000289 | Makita HY00000289 THERMAL CIRCUIT BREAKER, AC310H |
| 73 | HY00000290 | Makita HY00000290 MOTOR COVER C, AC310H |
| 133 | HY00000360 | Makita HY00000360 CAUTION LABEL, AC310H |
| 134 | HY00000243 | Makita HY00000243 TAPPING SCREW 4X18, AC310H |
| 139 | HY00000282 | Makita HY00000282 SPRING WASHER 5, AC310H |
| 140 | HY00000238 | Makita HY00000238 SPACER, AC310H |
| 141 | HY00000214 | Makita HY00000214 SPRING WASHER 6, AC310H |
| 142 | HY00000224 | Makita HY00000224 ELBOW 8-R1/4, AC310H |
| 143 | HY00000225 | Makita HY00000225 RING 8, AC310H |
| 144 | HY00000226 | Makita HY00000226 RING NUT 8, AC310H |
| 145 | HY00000238 | Makita HY00000238 SPACER, AC310H |
| 146 | HY00000243 | Makita HY00000243 TAPPING SCREW 4X18, AC310H |
| 168 | HY00000219 | Makita HY00000219 OUTLET VALVE, AC310H |
| 169 | HY00000220 | Makita HY00000220 INLET VALVE, AC310H |
| 170 |
Sheet 2: Makita AC310H parts diagram
| No. | Part number | Part name |
|---|---|---|
| 74 | HY00000292 | Makita HY00000292 POWER SUPPLY COAD, AC310H |
| 75 | HY00000295 | Makita HY00000295 CORD, AC310H |
| 76 | HY00000297 | Makita HY00000297 CORD CRAMP, AC310H |
| 78 | HY00000300 | Makita HY00000300 RING NUT 6, AC310H |
| 79 | HY00000301 | Makita HY00000301 PIPE 6, AC310H |
| 80 | HY00000302 | Makita HY00000302 BARREL NIPPLE R1/4-25, AC310H |
| 82 | HY00000304 | Makita HY00000304 RING 6, AC310H |
| 83 | HY00000305 | Makita HY00000305 RING NUT 6, AC310H |
| 84 | HY00000228 | Makita HY00000228 RING 10, AC310H |
| 85 | HY00000229 | Makita HY00000229 RING NUT 10, AC310H |
| 86 | HY00000306 | Makita HY00000306 PIPE 10, AC310H |
| 87 | HY00000307 | Makita HY00000307 PLUG 1/2, AC310H |
| 88 | HY00000308 | Makita HY00000308 RUBBER SEAL 20, AC310H |
| 90 | HY00000311 | Makita HY00000311 INDICATION LABEL, AC310H |
| 91 | HY00000312 | Makita HY00000312 DRAIN SOCKET, AC310H |
| 92 | HY00000313 | Makita HY00000313 PAN HEAD SCREW M5*10, AC310H |
| 93 | HY00000282 | Makita HY00000282 SPRING WASHER 5, AC310H |
| 94 | HY00000242 | Makita HY00000242 FLAT WASHER 5, AC310H |
| 95 | HY00000314 | Makita HY00000314 SIDE PANEL COVER, AC310H |
| 96 | HY00000315 | Makita HY00000315 SIDE PANEL, AC310H |
| 98 | HY00000317 | Makita HY00000317 FOOT, AC310H |
| 99 | HY00000318 | Makita HY00000318 SLEEVE 6, AC310H |
| 100 | HY00000319 | Makita HY00000319 FLAT WASHER 6, AC310H |
| 101 | HY00000320 | Makita HY00000320 HEX SOCKET HEAD BOT M6*12, AC310H |
| 102 | HY00000215 | Makita HY00000215 FLAT WASHER 6, AC310H |
| 103 | HY00000321 | Makita HY00000321 HEX NUT M6, AC310H |
| 104 | HY00000214 | Makita HY00000214 SPRING WASHER 6, AC310H |
| 105 | HY00000322 | Makita HY00000322 HEX NUT M5, AC310H |
| 106 | HY00000323 | Makita HY00000323 PIPE 8, AC310H |
| 108 | HY00000241 | Makita HY00000241 PAN HEAD SCREW M5X16, AC310H |
| 109 | HY00000282 | Makita HY00000282 SPRING WASHER 5, AC310H |
| 110 | HY00000242 | Makita HY00000242 FLAT WASHER 5, AC310H |
| 111 | HY00000327 | Makita HY00000327 FRONT PANEL, AC310H |
| 112 | HY00000328 | Makita HY00000328 GAUGE COVER, AC310H |
| 113 | HY00000329 | Makita HY00000329 INDICATION LABEL, AC310H |
| 114 | HY00000331 | Makita HY00000331 SAFETY VALVE COMPLETE 10, AC310H |
| 115 | HY00000333 | Makita HY00000333 MANIFOLD L (RC1/4), AC310H |
| 116 | HY00000336 | Makita HY00000336 BARREL NIPPLE R1/4-30, AC310H |
| 117 | HY00000338 | Makita HY00000338 QUICK COUPLER L R1/4, AC310H |
| 118 | HY00000340 | Makita HY00000340 TAPER SCREW PLUG R 1/4, AC310H |
| 119 | HY00000341 | Makita HY00000341 REGULATOR L, AC310H |
| 120 | HY00000342 | Makita HY00000342 INDICATION LABEL, AC310H |
| 121 | HY00000343 | Makita HY00000343 PRESSURE GAUGE JOINT, AC310H |
| 122 | HY00000344 | Makita HY00000344 Pressure Gauge L AC310H |
| 123 | HY00000346 | Makita HY00000346 MANIFOLD A (RC1/4), AC310H |
| 124 | HY00000347 | Makita HY00000347 Pressure Gaughe H for AC310H |
| 125 | HY00000348 | Makita HY00000348 REGULATOR H, AC310H |
| 126 | HY00000349 | Makita HY00000349 INDICATION LABEL, AC310H |
| 127 | HY00000350 | Makita HY00000350 MANIFOLD H, AC310H |
| 129 | HY00000352 | Makita HY00000352 RUBBER SLEEVE, AC310H |
| 130 | HY00000354 | Makita HY00000354 SAFETY VALVE COMPLETE 30, AC310H |
| 131 | HY00000355 | Makita HY00000355 INDICATION LABEL, AC310H |
| 135 | HY00000361 | Makita HY00000361 CHECK VALVE, AC310H |
| 136 | HY00000362 | Makita HY00000362 UNLOADING VALVE, AC310H |
| 137 | HY00000363 | Makita HY00000363 O-RING 17, AC310H |
| 138 | ||
| 147 | HY00000267 | Makita HY00000267 HEX SOCKET HEAD BOLT M6X40, AC310H |
| 148 | HY00000224 | Makita HY00000224 ELBOW 8-R1/4, AC310H |
| 149 | HY00000225 | Makita HY00000225 RING 8, AC310H |
| 150 | HY00000226 | Makita HY00000226 RING NUT 8, AC310H |
| 151 | HY00000225 | Makita HY00000225 RING 8, AC310H |
| 152 | HY00000226 | Makita HY00000226 RING NUT 8, AC310H |
| 153 | HY00000340 | Makita HY00000340 TAPER SCREW PLUG R 1/4, AC310H |
| 154 | HY00000336 | Makita HY00000336 BARREL NIPPLE R1/4-30, AC310H |
| 155 | HY00000336 | Makita HY00000336 BARREL NIPPLE R1/4-30, AC310H |
| 156 | HY00000340 | Makita HY00000340 TAPER SCREW PLUG R 1/4, AC310H |
| 157 | HY00000336 | Makita HY00000336 BARREL NIPPLE R1/4-30, AC310H |
| 158 | HY00000340 | Makita HY00000340 TAPER SCREW PLUG R 1/4, AC310H |
| 159 | HY00000336 | Makita HY00000336 BARREL NIPPLE R1/4-30, AC310H |
| 160 | HY00000343 | Makita HY00000343 PRESSURE GAUGE JOINT, AC310H |
| 161 | HY00000347 | Makita HY00000347 Pressure Gaughe H for AC310H |
| 162 | HY00000336 | Makita HY00000336 BARREL NIPPLE R1/4-30, AC310H |
| 163 | HY00000340 | Makita HY00000340 TAPER SCREW PLUG R 1/4, AC310H |
| 164 | HY00000313 | Makita HY00000313 PAN HEAD SCREW M5*10, AC310H |
| 165 | HY00000282 | Makita HY00000282 SPRING WASHER 5, AC310H |
| 166 | HY00000242 | Makita HY00000242 FLAT WASHER 5, AC310H |
| 167 | HY00000224 | Makita HY00000224 ELBOW 8-R1/4, AC310H |
