Bosch ABT AQUA-CONTROL

Bosch ABT AQUA-CONTROL water meter: exploded parts diagram, 1 sheet, 6 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ABT AQUA-CONTROL: 6 positions on 1 sheet

Bosch ABT AQUA-CONTROL parts list (1 sheet)

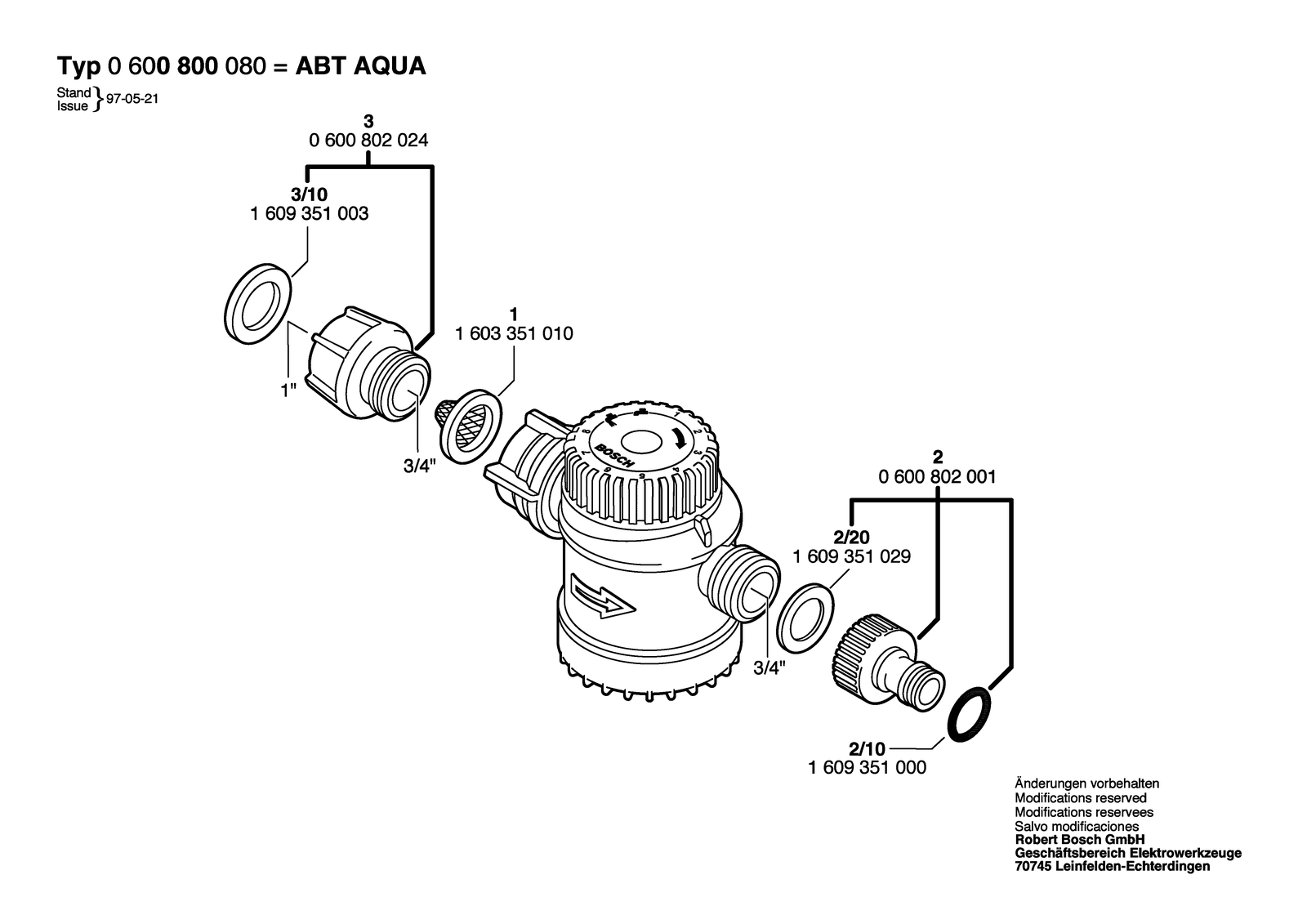

Bosch ABT AQUA-CONTROL parts diagram, sheet 1
No.Part numberPart name
11609351010Strainer G 3/4,Ø24X3 MM
20600800001Tap Connection Piece For First Equipping 3/4"
2/101609351000O-Ring 11X2,5 MM
2/201609351029Gasket Ø15XØ24X4,5=3/4"
30600800024Adapter G 3/4" - G 1"
3/101609351003Gasket Ø22XØ30X3=1"
