Bosch ABS 96-M2

Bosch ABS 96-M2 cordless screw driver: exploded parts diagram, 1 sheet, 38 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ABS 96-M2: 38 positions on 1 sheet

Bosch ABS 96-M2 parts list (1 sheet)

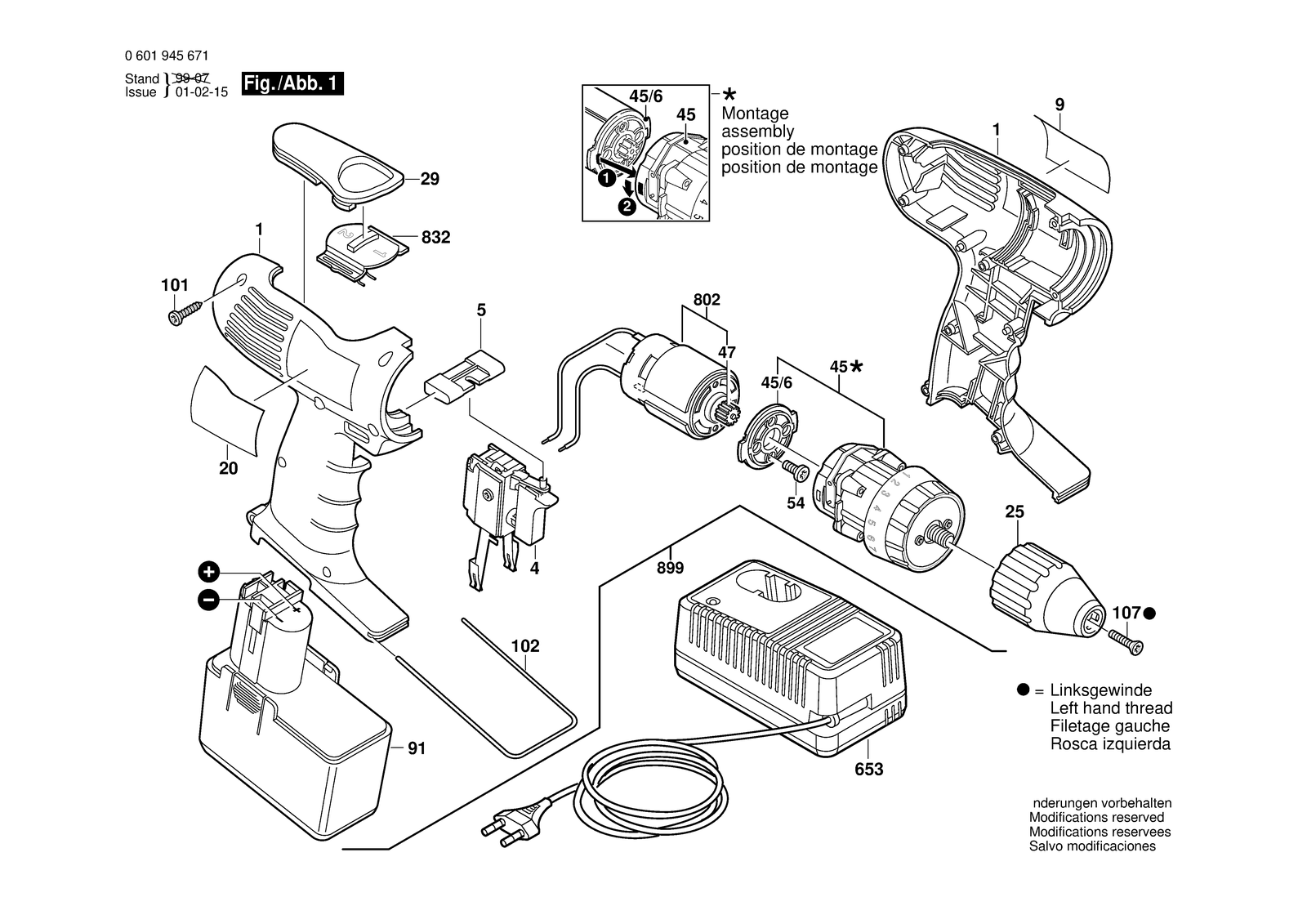

Bosch ABS 96-M2 parts diagram, sheet 1
No.Part numberPart name
12605104541Housing Section Black
12605104541Housing Section Black
1012603490018Torx Oval-Head Screw 3X18
1012603490018Torx Oval-Head Screw 3X18
1022601329041Retaining Bracket
1022601329041Retaining Bracket
1072603421227Countersunk-Head Screw
1072603421227Countersunk-Head Screw
202601118985Reference Plate Shadow Side
202601118985Reference Plate Shadow Side
252608572099Keyless Chuck Black
252608572099Keyless Chuck Black
292605510158Insert Piece
292605510158Insert Piece
42607200361On-Off Switch
42607200361On-Off Switch
452606200065Planetary Gear Train
452606200065Planetary Gear Train
45/62605719008Intermediate Flange
45/62605719008Intermediate Flange
472606316161Pinion Z=12
472610967116Pinion Z=12
52601099066Adjusting Slide Red
52601099066Adjusting Slide Red
542603414049Torx SH cap screw M4X8-4,8-Z
542603414049Torx SH cap screw M4X8-4,8-Z
6532607224723Fast Charger EU 230/7,2-14,4V, 1H
6532607224723Fast Charger EU 230/7,2-14,4V, 1H
8022607022957DC motor 9,6-12V
8022607022957DC motor 9,6-12V
8322601099119Adjusting Slide
8322601099119Adjusting Slide
8990601945672Cordless Screw Driver Battery Without Charger
92601118984Manufacturer's nameplate Sunny Side
92601119329Manufacturer's nameplate Sunny Side
92601118984Manufacturer's nameplate Sunny Side
912607335171Slide-In Accu Package 9,6V,1,7AH,NICD
912607335553Slide-In Accu Package 9,6V,2,6AH,NIMH
