Bosch ABS 12-M 2

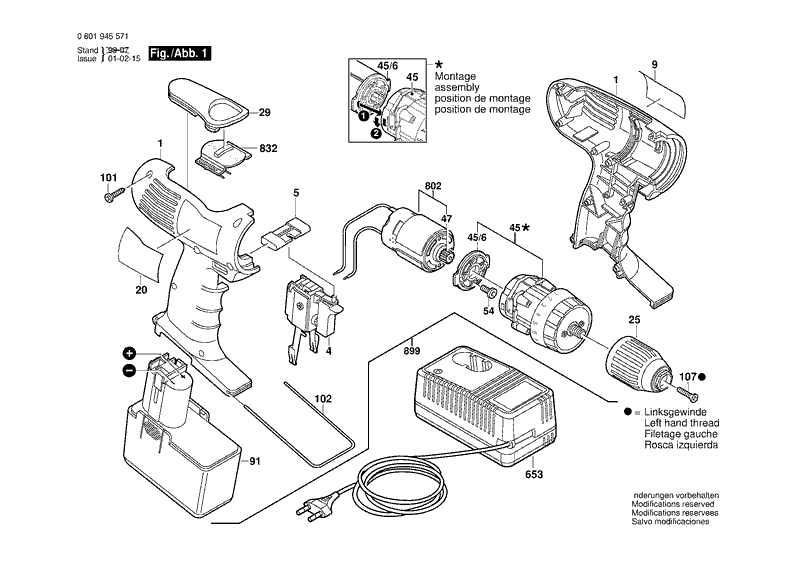

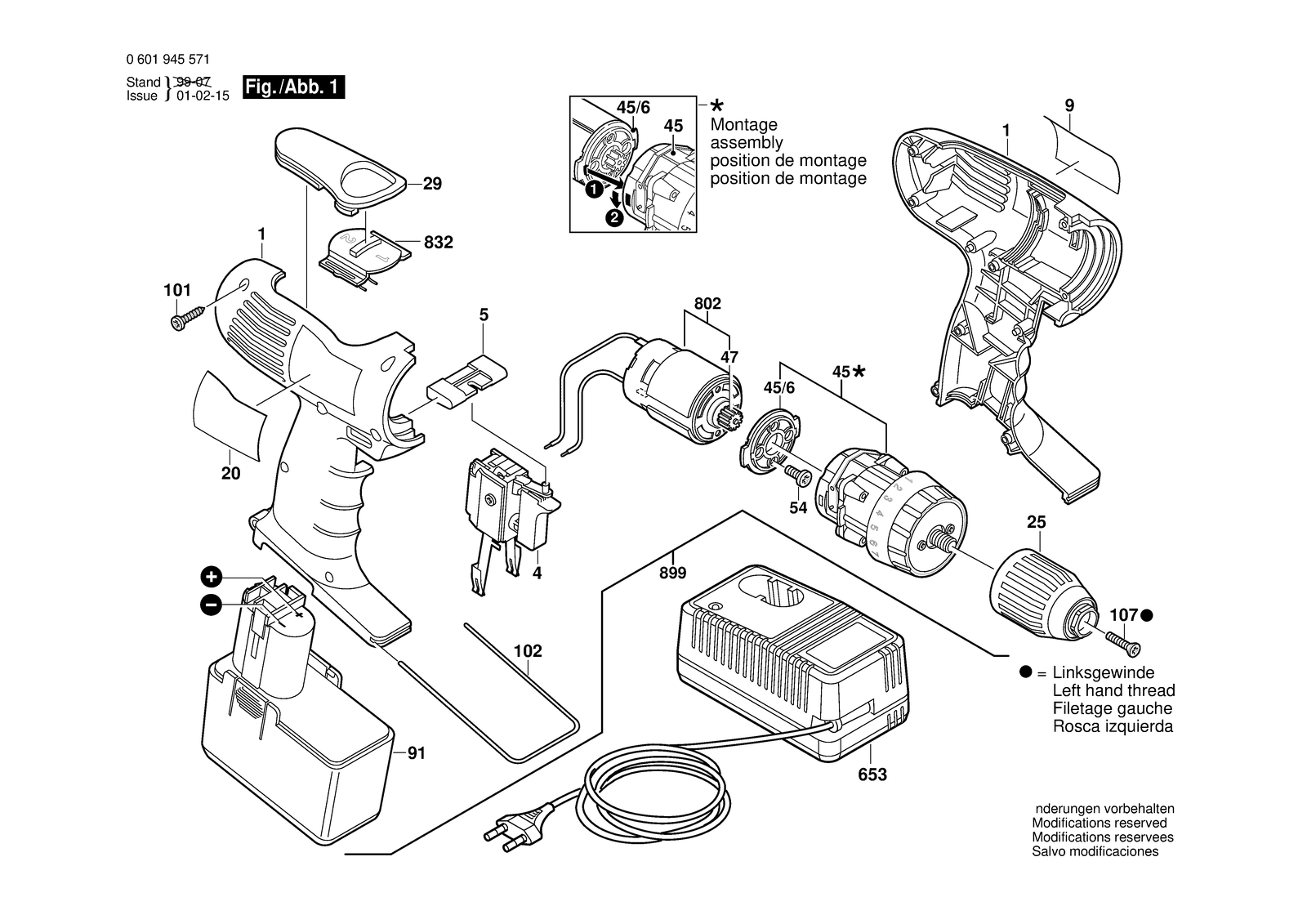

Bosch ABS 12-M 2 batt-oper screwdriver: exploded parts diagram, 1 sheet, 57 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ABS 12-M 2: 57 positions on 1 sheet
Bosch ABS 12-M 2 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104555 | Housing Section Black |
| 1 | 2605104555 | Housing Section Black |
| 1 | 2605104555 | Housing Section Black |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 102 | 2601329041 | Retaining Bracket |
| 102 | 2601329041 | Retaining Bracket |
| 102 | 2601329041 | Retaining Bracket |
| 107 | 2603421227 | Countersunk-Head Screw |
| 107 | 2603421227 | Countersunk-Head Screw |
| 107 | 2603421227 | Countersunk-Head Screw |
| 20 | 2601119386 | Reference Plate Shadow Side |
| 20 | 2601119386 | Reference Plate Shadow Side |
| 20 | 2601117278 | Reference Plate Shadow Side |
| 25 | 2608572096 | Keyless Chuck Ø 2-13 Mm, 3/8" |
| 25 | 2608572096 | Keyless Chuck Ø 2-13 Mm, 3/8" |
| 25 | 2608572096 | Keyless Chuck Ø 2-13 Mm, 3/8" |
| 29 | 2605510158 | Insert Piece |
| 29 | 2605510158 | Insert Piece |
| 29 | 2605510158 | Insert Piece |
| 4 | 2607200378 | On-Off Switch |
| 4 | 2607200378 | On-Off Switch |
| 4 | 2607200378 | On-Off Switch |
| 45 | 2606200065 | Planetary Gear Train |
| 45 | 2606200065 | Planetary Gear Train |
| 45 | 2606200065 | Planetary Gear Train |
| 45/6 | 2605719019 | Flange |
| 45/6 | 2605719008 | Intermediate Flange |
| 45/6 | 2605719008 | Intermediate Flange |
| 47 | 2610967116 | Pinion Z=12 |
| 47 | 2610967116 | Pinion Z=12 |
| 47 | 2610967116 | Pinion Z=12 |
| 5 | 2601099066 | Adjusting Slide Red |
| 5 | 2601099066 | Adjusting Slide Red |
| 5 | 2601099066 | Adjusting Slide Red |
| 54 | 2603414049 | Torx SH cap screw M4X8-4,8-Z |
| 54 | 2603414049 | Torx SH cap screw M4X8-4,8-Z |
| 54 | 2603414049 | Torx SH cap screw M4X8-4,8-Z |
| 653 | 2607224273 | Fast Charger EU 230/4,8-14,4V, 12 Min. |
| 653 | 2607224723 | Fast Charger EU 230/7,2-14,4V, 1H |
| 653 | 2607224723 | Fast Charger EU 230/7,2-14,4V, 1H |
| 653 | 2607224417 | Fast Charger Usa/can 120/12V, 1H |
| 802 | 2607022957 | DC motor 9,6-12V |
| 802 | 2607022957 | DC motor 9,6-12V |
| 802 | 2607022957 | DC motor 9,6-12V |
| 832 | 2601099119 | Adjusting Slide |
| 832 | 2601099119 | Adjusting Slide |
| 832 | 2601099119 | Adjusting Slide |
| 899 | 0601945572 | Cordless Screw Driver Battery Without Charger |
| 9 | 2601118986 | Manufacturer's nameplate Sunny Side |
| 9 | 2601119328 | Manufacturer's nameplate Sunny Side |
| 9 | 2601118986 | Manufacturer's nameplate Sunny Side |
| 9 | 2601117277 | Manufacturer's nameplate Sunny Side |
| 91 | 2607335172 | Slide-In Accu Package 12V,1,7AH,NICD |
| 91 | 2607335182 | Battery Pack 12V,2,0AH,NICD |
| 91 | 2607335315 | Accumulator package 12V,2,0AH,NICD |
