Bosch ABS 12 M-2

Bosch ABS 12 M-2 batt-oper screwdriver: exploded parts diagram, 1 sheet, 22 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ABS 12 M-2: 22 positions on 1 sheet

Bosch ABS 12 M-2 parts list (1 sheet)

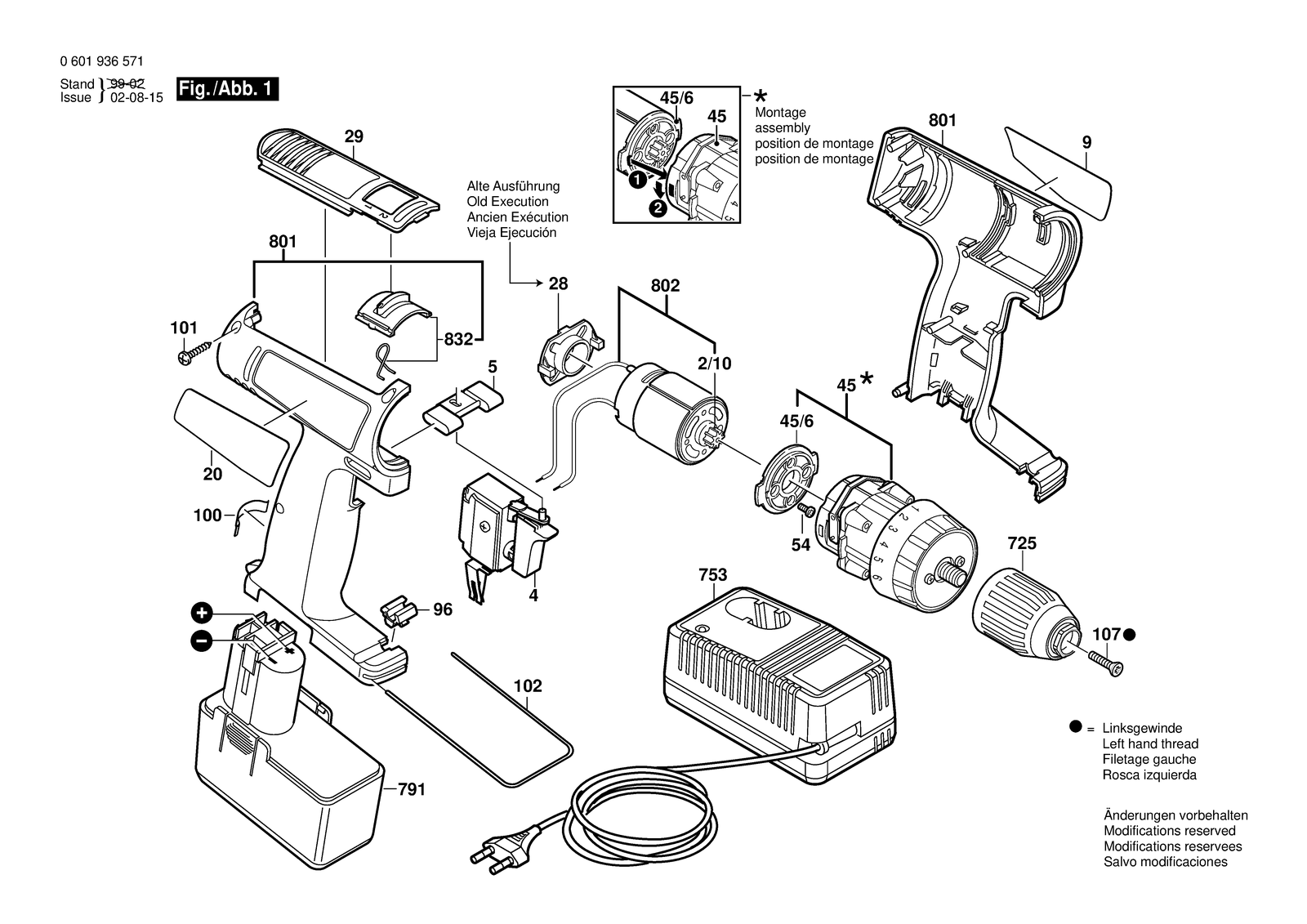

Bosch ABS 12 M-2 parts diagram, sheet 1
No.Part numberPart name
1002601322016Clamp Spring
1012603490018Torx Oval-Head Screw 3X18
1022601329041Retaining Bracket
1072609110721Countersunk-Head Screw M5X20
2/102606316161Pinion Z=12
202601118822Reference Plate Shadow Side
282605719015Adapter Insert Black
292605510130Insert Piece Black
42607200351On-Off Switch
452606200065Planetary Gear Train
45/62605719008Intermediate Flange
52601099055Adjusting Slide Red
542603414049Torx SH cap screw M4X8-4,8-Z
7252608572111Keyless Chuck Ø 2-13 Mm, 3/8"
7532607224273Fast Charger EU 230/4,8-14,4V, 12 Min.
7532607224310Fast Charger EU 230/7,2-14,4V, 1H
7912607335145Slide-In Accu Package Red 12V,1,7AH,NICD
8012605104521Housing Section Black
8022607022957DC motor 9,6-12V
8322601099126Adjusting Slide
92601118821Manufacturer's nameplate Sunny Side
962608040131Support
