Bosch A-S2 10,8 V

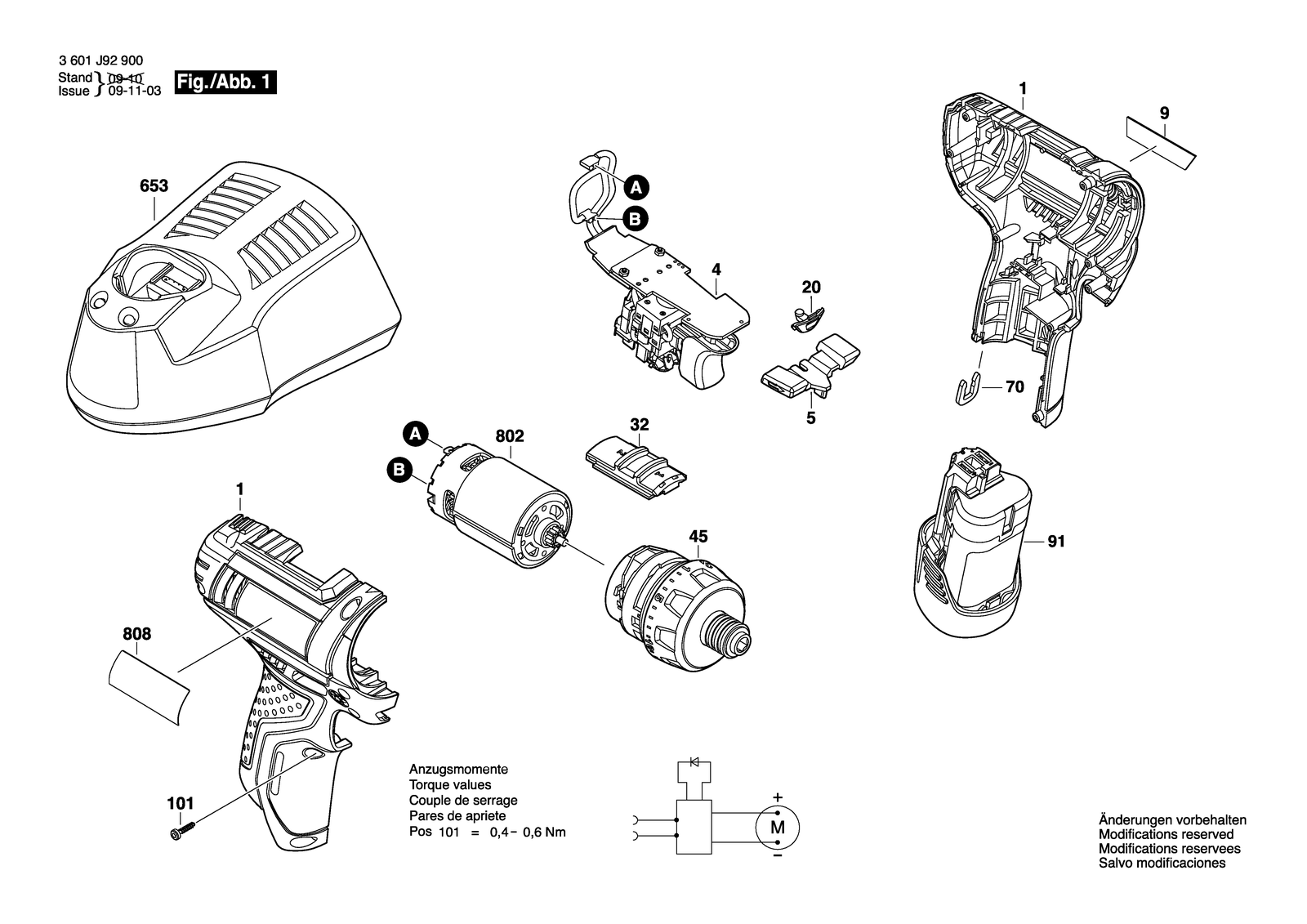

Bosch A-S2 10,8 V cordless screwdriver: exploded parts diagram, 1 sheet, 78 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch A-S2 10,8 V: 78 positions on 1 sheet
Bosch A-S2 10,8 V parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100839 | Housing Blue |
| 1 | 2609100839 | Housing Blue |
| 1 | 2609100972 | Housing |
| 1 | 2609100973 | Housing Orange |
| 101 | 2609110883 | Screw |
| 101 | 2609110883 | Screw |
| 101 | 2609110883 | Screw |
| 101 | 2609110883 | Screw |
| 20 | 2609100826 | Lens |
| 20 | 2609100826 | Lens |
| 20 | 2609100826 | Lens |
| 20 | 2609100826 | Lens |
| 32 | 2609199279 | Switchover Unit |
| 32 | 2609199279 | Switchover Unit |
| 32 | 2609199352 | Switchover Unit |
| 32 | 2609199353 | Switchover Unit |
| 4 | 1607233488 | Electronics Module |
| 4 | 1607233542 | Electronics Module |
| 4 | 1607233488 | Electronics Module |
| 4 | 1607233489 | Electronics Module |
| 4 | 1607233490 | Electronics Module |
| 45 | 2606200259 | Gear Box |
| 45 | 2609199444 | Gear Box |
| 45 | 2606200259 | Gear Box |
| 45 | 2606200259 | Gear Box |
| 45 | 2606200259 | Gear Box |
| 5 | 2609100825 | Changeover Lever |
| 5 | 2609100825 | Changeover Lever |
| 5 | 2609100974 | Changeover Lever |
| 5 | 2609100975 | Changeover Lever |
| 653 | 2607225141 | Fast Charger SAM 115/10,8V, 30 Min. |
| 653 | 2607225515 | Fast Charger Gb AL 1115 CV 230/3,6-12V, 1H |
| 653 | 2607225527 | Fast Charger BR 220/3,6-10,8V, 1H |
| 653 | 2607225531 | Fast Charger BR 127/3,6-10,8V, 1H |
| 653 | 2607225711 | Fast Charger ARG 220/10,8V |
| 653 | 2607225713 | Fast Charger BR 127/10,8V |
| 653 | 2607226101 | Fast Charger EU GAL 1230 CV 230/12V |
| 653 | 2607226195 | Fast Charger GAL 12V-20 MEX 115V / 3.6V – 12V / 2A |
| 653 | 2607226201 | Fast Charger Br GAL 12V-20, 127V-220V |
| 653 | 2607226205 | Fast Charger GAL 12V-20 ARG 115V / 3.6V – 12V / 2A |
| 653 | 2607226219 | Fast Charger EU GAL 12V-40 |
| 653 | 2607225139 | Fast Charger Usa/can 120/10,8-12V/30 Min. |
| 653 | 2607225519 | Fast Charger USA 120/3,6-10,8V,1H |
| 653 | 2607226381 | Fast Charger BBCF 12V 370468 10,8-12V 4A |
| 653 | 2607225297 | Fast Charger Bti EU 230/10,8 V, 30 Min. |
| 653 | 2607226383 | Fast Charger 12 V 9 0947764 10,8-12V 4A |
| 70 | 2609110537 | Clip |
| 70 | 2609110537 | Clip |
| 70 | 2609110537 | Clip |
| 70 | 2609110537 | Clip |
| 802 | 2609199258 | DC motor 10,8V - 12V |
| 802 | 2609199258 | DC motor 10,8V - 12V |
| 802 | 2609199258 | DC motor 10,8V - 12V |
| 802 | 2609199258 | DC motor 10,8V - 12V |
| 808 | 2609132611 | Nameplate |
| 808 | 2609132613 | Nameplate |
| 808 | 2609132679 | Nameplate |
| 808 | 2609133514 | Nameplate |
| 808 | 2609135284 | Nameplate |
| 808 | 2609135889 | Nameplate |
| 808 | 2609132609 | Nameplate |
| 808 | 160111A5JS | Nameplate |
| 808 | 2609132963 | Type Label |
| 808 | 160111A5J5 | Nameplate |
| 808 | 160111A5JU | Nameplate |
| 9 | 2609132548 | Manufacturer's nameplate GSR 10,8-LI |
| 9 | F00062107F | Manufacturer's nameplate GSR 12-LI |
| 9 | 2609132529 | Nameplate Lithium-Lon 12V |
| 9 | 160111C2EE | Manufacturer's nameplate BACS-1 12 V |
| 9 | 2609132931 | Manufacturer's nameplate Bacs- 10,8V |
| 9 | 2609132932 | Manufacturer's nameplate A-S2 10,8V |
| 91 | 1607A350C5 | Battery Pack GBA 12V 2.0AH LI Scm |
| 91 | 1607A350C8 | Battery Pack BAT 414 10,8/12V 2,0AH |
| 91 | 2607337237 | Battery Pack BAT 415 10,8V712V 2,5AH |
| 91 | 1607A350C8 | Battery Pack BAT 414 10,8/12V 2,0AH |
| 91 | 2607337237 | Battery Pack BAT 415 10,8V712V 2,5AH |
| 91 | 1607A350A6 | Battery Pack BBP 12 V 2,0 AH 343769 |
| 91 | 1607A350A4 | Battery Pack 12 V 2,0 AH 9 090230 |
