Bosch A-KBH 36 V-LI

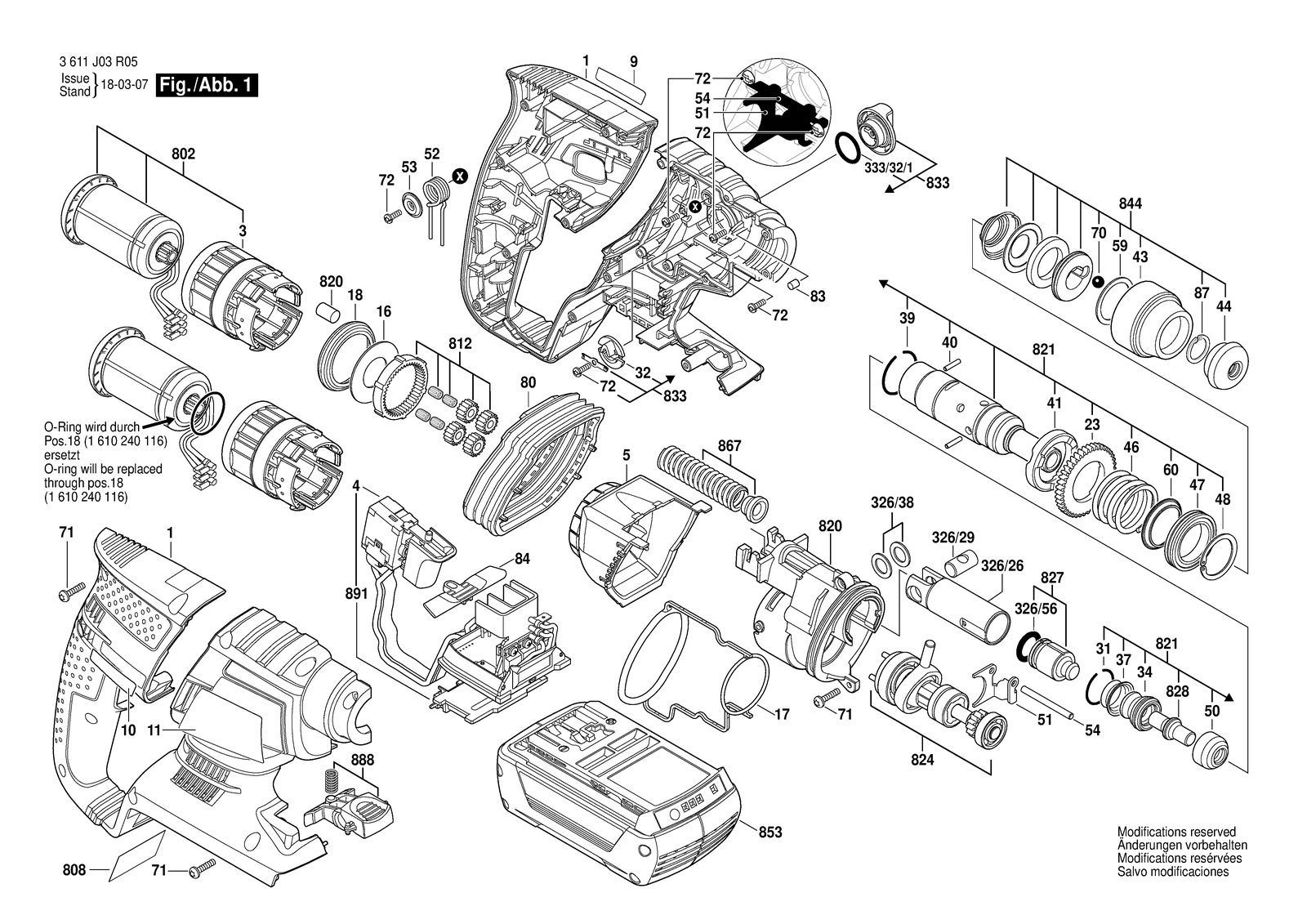

Bosch A-KBH 36 V-LI rotary hammer: exploded parts diagram, 2 sheets, 123 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch A-KBH 36 V-LI: 123 positions on 2 sheets
Bosch A-KBH 36 V-LI parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615104061 | Housing Section |
| 1 | 1615104062 | Housing Section |
| 10 | 1611110Z62 | Manufacturer's nameplate |
| 10 | 1611110Z64 | Manufacturer's nameplate |
| 11 | 1611110Z23 | Reference Plate Eu, Gb, Aus, Korea, Cn |
| 11 | 1611110Z23 | Reference Plate Eu, Gb, Aus, Korea, Cn |
| 120 | 1612025087 | Auxiliary Handle |
| 120 | 1612025087 | Auxiliary Handle |
| 16 | 1610102637 | Supporting Disc 12X38X0,5 |
| 16 | 1610102637 | Supporting Disc 12X38X0,5 |
| 17 | 1611015060 | Sealing Frame |
| 17 | 1611015060 | Sealing Frame |
| 18 | 1610290116 | Seal Ring |
| 18 | 1610290116 | Seal Ring |
| 23 | 1616317084 | Cylindrical Gear |
| 23 | 1616317084 | Cylindrical Gear |
| 3 | 1610499067 | Centering Sleeve |
| 3 | 1610499067 | Centering Sleeve |
| 31 | 1614601053 | Retaining ring |
| 31 | 1614601053 | Retaining ring |
| 32 | 1612026114 | Switch Button |
| 32 | 1612026114 | Switch Button |
| 326/26 | 1618700083 | Hammer Piston |
| 326/26 | 1618700083 | Hammer Piston |
| 326/29 | 1613100034 | Piston Pin |
| 326/29 | 1613100034 | Piston Pin |
| 326/38 | 1610100016 | Guide Disc |
| 326/38 | 1610100016 | Guide Disc |
| 326/56 | 1610210186 | O-Ring 13,0X3,0 MM |
| 326/56 | 1610210186 | O-Ring 13,0X3,0 MM |
| 333/32/1 | 1610210185 | O-Ring 16,5X2,0 MM |
| 333/32/1 | 1610210185 | O-Ring 16,5X2,0 MM |
| 34 | 1610508051 | Rubber Bushing |
| 34 | 1610508051 | Rubber Bushing |
| 37 | 1610551008 | Holding Plate |
| 37 | 1610551008 | Holding Plate |
| 39 | 160460102U | Retaining ring |
| 39 | 160460102U | Retaining ring |
| 4 | 1607233385 | Electronics Module |
| 4 | 1607233386 | Electronics Module |
| 40 | 1613100032 | Straight Pin |
| 40 | 1613100032 | Straight Pin |
| 41 | 1610102072 | Ratchet Disc |
| 41 | 1610102072 | Ratchet Disc |
| 43 | 1610499080 | Protection Sleeve |
| 43 | 1610499080 | Protection Sleeve |
| 44 | 1610508052 | Protective Cap |
| 44 | 1610508052 | Protective Cap |
| 46 | 1614630003 | Compression Spring |
| 46 | 1614630003 | Compression Spring |
| 47 | 1610905039 | Groove ball bearing |
| 47 | 1610905039 | Groove ball bearing |
| 48 | 1614601054 | Retaining ring |
| 48 | 1614601054 | Retaining ring |
| 5 | 1610591044 | Air Path Black |
| 5 | 1610591044 | Air Path Black |
| 50 | 1619P11562 | Guide Bushing |
| 50 | 1619P11562 | Guide Bushing |
| 51 | 1613231014 | Shift Plate |
| 51 | 1613231014 | Shift Plate |
| 52 | 1614690005 | Coiled Spring |
| 52 | 1614690005 | Coiled Spring |
| 53 | 1619P00828 | Pressure Disc |
| 53 | 1619P00828 | Pressure Disc |
| 54 | 1613100033 | Guide Rod |
| 54 | 1613100033 | Guide Rod |
| 59 | 1610102045 | Friction Washer Thick 1,0 MM |
| 59 | 1610102045 | Friction Washer Thick 1,0 MM |
| 60 | 1610190054 | Support Disc |
| 60 | 1610190054 | Support Disc |
| 651 | 2609005615 | Depth-Gauge |
| 651 | 2609005615 | Depth-Gauge |
| 654 | 2607225313 | Fast Charger EU 230/18-36V, 1H |
| 654 | 2607225909 | Fast Charger J GAL 3680 CV 100/14,4-36V |
| 654 | 2607225909 | Fast Charger J GAL 3680 CV 100/14,4-36V |
| 654 | 2607226277 | Fast Charger Aus AL 36V-20 |
| 654 | 2607226459 | Charger Gb GAL 3680 CV 230/14,4-26V |
| 654 | 2607226465 | Charger Rok GAL 3680 CV 220/14,4-36V |
| 654 | 2607226533 | Fast Charger EU 9 9096522 230/14,4-36V |
| 70 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 70 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 71 | 1613435036 | Torx Oval-Head Screw 35X16 |
| 71 | 1613435036 | Torx Oval-Head Screw 35X16 |
| 72 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 72 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 80 | 1610415002 | Bellows |
| 80 | 1610415002 | Bellows |
| 802 | 1617000664 | DC motor 36V |
| 802 | 1617000664 | DC motor 36V |
| 808 | 160111A3HD | Nameplate |
| 808 | 160111A3HD | Nameplate |
| 812 | 1617000665 | Planetary Gear Train |
| 812 | 1617000665 | Planetary Gear Train |
| 820 | 1617000666 | Intermediate Flange |
| 820 | 1617000666 | Intermediate Flange |
| 821 | 1617000667 | Hammer Pipe |
| 821 | 1617000667 | Hammer Pipe |
| 824 | 1607000D10 | Jack Shaft |
| 824 | 1607000D10 | Jack Shaft |
| 827 | 1617000669 | Striker |
| 827 | 1617000669 | Striker |
| 828 | 1613124084 | Striker Pin |
| 828 | 1613124084 | Striker Pin |
| 83 | 2603100056 | Damping rubber |
| 83 | 2603100056 | Damping rubber |
| 833 | 1617000687 | Clamp Handle |
| 833 | 1617000670 | Clamp Handle |
| 84 | 1613231026 | Switch Slide |
| 84 | 1613231027 | Switch Slide |
| 844 | 16170006D3 | Protection Sleeve |
| 844 | 16170006D3 | Protection Sleeve |
| 853 | 2607336297 | Battery Pack 36V, 1,3AH, Li, L |
| 853 | 2607337241 | Battery Pack 36V 4,0AH BTI 9 077 583 |
| 867 | 1617000671 | Compression Spring |
| 867 | 1617000671 | Compression Spring |
| 87 | 1614601077 | Spring retaining ring |
| 87 | 1614601077 | Spring retaining ring |
| 888 | 16170006A2 | Push-Button |
| 888 | 16170006A3 | Push-Button |
| 891 | 1609280425 | Contact retainer |
| 891 | 1609280425 | Contact retainer |
| 9 | 1611110Z61 | Manufacturer's nameplate |
| 9 | 1611110Z63 | Manufacturer's nameplate |
