Bosch A-BS 12V cordless screwdriver: exploded parts diagram, 1 sheet, 101 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch A-BS 12V: 101 positions on 1 sheet

Bosch A-BS 12V parts list (1 sheet)

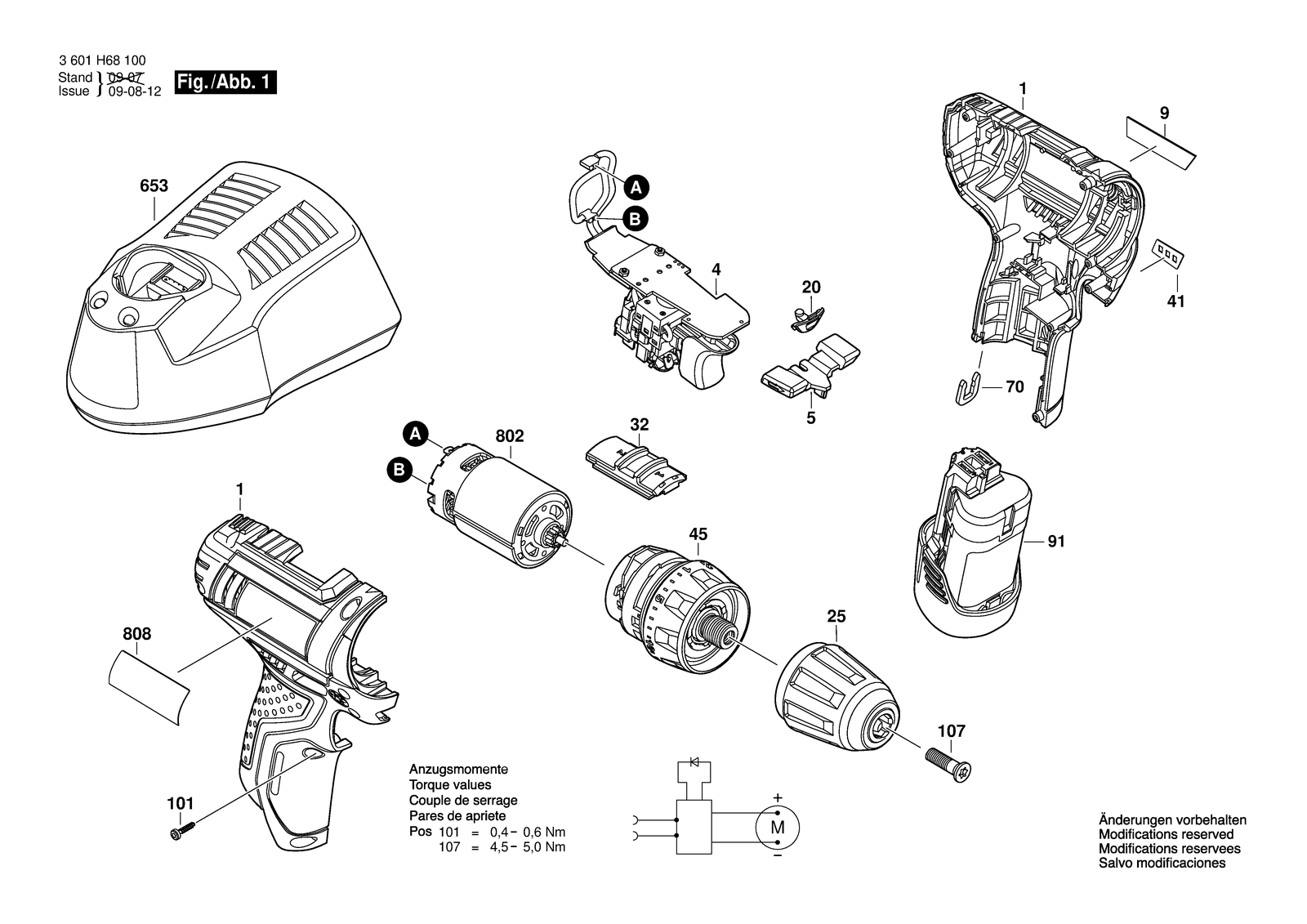

Bosch A-BS 12V parts diagram, sheet 1
No.Part numberPart name
12609100824Housing Blue
12609100824Housing Blue
12609100970Housing
12609100971Housing Orange
1012609110883Screw
1012609110883Screw
1012609110883Screw
1012609110883Screw
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
202609100826Lens
202609100826Lens
202609100826Lens
202609100826Lens
252609110967Keyless Chuck
252609110967Keyless Chuck
252609111245Keyless Chuck
252609111245Keyless Chuck
322609199279Switchover Unit
322609199279Switchover Unit
322609199352Switchover Unit
322609199353Switchover Unit
416072335DKElectronics Module
41607233377Electronics Module
41607233486Electronics Module
41607233487Electronics Module
412609132378Sticker
412609132378Sticker
412609132378Sticker
412609132378Sticker
452609199786Gear Box
452609199786Gear Box
452609199786Gear Box
452609199786Gear Box
52609100825Changeover Lever
52609100825Changeover Lever
52609100974Changeover Lever
52609100975Changeover Lever
6532607225135Fast Charger UK AL1130CV 230V/12V/3A
6532607225137Fast Charger AUS 240/10,8V
6532607225141Fast Charger SAM 115/10,8V, 30 Min.
6532607225143Fast Charger J 100/10,8V, 30 Min.
6532607225303Fast Charger CN 220/10,8V, 30 Min.
6532607225527Fast Charger BR 220/3,6-10,8V, 1H
6532607225531Fast Charger BR 127/3,6-10,8V, 1H
6532607225711Fast Charger ARG 220/10,8V
6532607226101Fast Charger EU GAL 1230 CV 230/12V
6532607226139Charger set Aus GAL 1230 CV 240/12V
6532607226195Fast Charger GAL 12V-20 MEX 115V / 3.6V – 12V / 2A
6532607226201Fast Charger Br GAL 12V-20, 127V-220V
6532607226205Fast Charger GAL 12V-20 ARG 115V / 3.6V – 12V / 2A
6532607226219Fast Charger EU GAL 12V-40
6532607225139Fast Charger Usa/can 120/10,8-12V/30 Min.
6532607225519Fast Charger USA 120/3,6-10,8V,1H
6532607226381Fast Charger BBCF 12V 370468 10,8-12V 4A
6532607225297Fast Charger Bti EU 230/10,8 V, 30 Min.
6532607226383Fast Charger 12 V 9 0947764 10,8-12V 4A
702609110537Clip
702609110537Clip
702609110537Clip
702609110537Clip
8022609199258DC motor 10,8V - 12V
8022609199258DC motor 10,8V - 12V
8022609199258DC motor 10,8V - 12V
8022609199258DC motor 10,8V - 12V
8081600A00YG0Nameplate
808160111A4FWNameplate
808160111A4WCNameplate
808160111A5D4Nameplate
808160111A6J2Nameplate
8082609132503Nameplate
8082609132534Nameplate
8082609132535Nameplate
8082609132536Nameplate
8082609132639Nameplate
8082609132499Type Label
808160111A5JPNameplate
8082609132961Type Label
808160111A5GJNameplate
808160111A5J6Nameplate
9160111C1LUManufacturer's nameplate GSR 12V-15
92609132377Manufacturer's nameplate GSR 10,8-2-LI
9F00062107DManufacturer's nameplate GSR 12-2-LI
92609132529Nameplate Lithium-Lon 12V
9160111C2ECManufacturer's nameplate BACD-1 12V
92609132927Manufacturer's nameplate BACD-1 10,8 LI
92609132928Manufacturer's nameplate A-S2 10,8V
911607A35049Battery Pack 12V, 2,5AH, LI Gba
911607A35079Battery Pack GBA 12V 2.5AH Ow-B
911607A350BWBattery Pack EU GBA 12V 4.0AH O-b Scm
911607A350C5Battery Pack GBA 12V 2.0AH LI Scm
911607A350C7Battery Pack Rok GBA 10,8V 2.0AH O-b
911607A350C8Battery Pack BAT 414 10,8/12V 2,0AH
912607336663Slide-In Accu Package 10,8V, 1,3AH, LI
912607337237Battery Pack BAT 415 10,8V712V 2,5AH
911607A350C8Battery Pack BAT 414 10,8/12V 2,0AH
912607337237Battery Pack BAT 415 10,8V712V 2,5AH
911607A350A6Battery Pack BBP 12 V 2,0 AH 343769
911607A350A4Battery Pack 12 V 2,0 AH 9 090230
