All parts of Makita 9924DB: 70 positions on 1 sheet

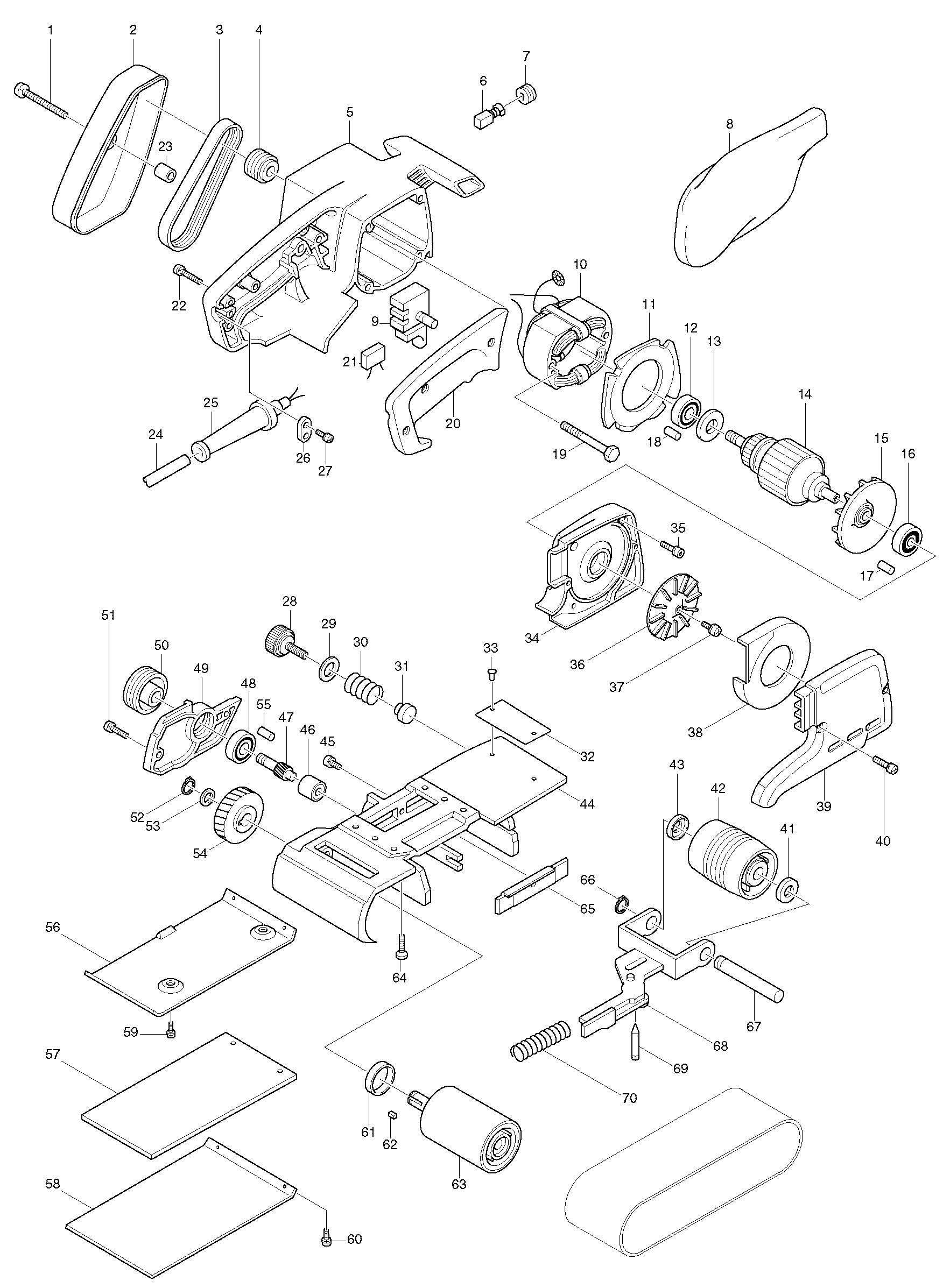

Sheet 1: Makita 9924DB parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 911261-6 | Makita 911261-6 PAN HEAD SCREW M5X40 |
| 2 | 343270-1 | Makita 343270-1 BELT COVER |
| 3 | 225008-5 | Makita 225008-5 Poly V-Belt 5-304, 9900B |
| 4 | 222010-9 | Makita 222010-9 V-PULLEY 5-25L |
| 5 | 156490-6 | Makita 156490-6 MOTOR HOUSING |
| 6 | 181030-1 | Makita 181030-1 Carbon Brushes CB-100 for 6906 9005B 9901 PC1100 |
| 7 | 643600-9 | Makita 643600-9 Holder Cup for DA6300 |
| 8 | 122296-4 | Makita 122296-4 Dust Bag for Sander 9900B 9924DB |
| 9 | 651235-2 | Makita 651235-2 Switch 2106 9900 9924 9030 JN3200 JR3000 8419 4302 |
| 10 | 528353-0 | Makita 528353-0 FIELD M991 |
| 11 | 411322-7 | |
| 12 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 13 | 681623-9 | Makita 681623-9 INSULATION WASHER |
| 14 | 513294-3 | Makita 513294-3 Armature Ass'y 220V for Belt Sander 9924DB 9900B |
| 15 | 241809-3 | Makita 241809-3 FAN 75 |
| 16 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 17 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 18 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 19 | 911270-5 | Makita 911270-5 PAN HEAD SCREW M5X45 |
| 20 | 411321-9 | Makita 411321-9 HANDLE COVER |
| 21 | 645209-3 | Makita 645209-3 NOISE SUPPRESSOR |
| 22 | 911158-9 | Makita 911158-9 PAN HEAD SCREW M4*30, MT960 |
| 23 | 257504-5 | Makita 257504-5 SLEEVE 6 |
| 24 | 665883-1 | Makita 665883-1 POWER S.CORD CEE(H07RN-F), PC5000C |
| 25 | 682516-3 | Makita 682516-3 CORD GUARD 9.3-85, HR2410 |
| 26 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 27 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 28 | 251815-0 | Makita 251815-0 SCREW M6X25 |
| 29 | 253707-9 | Makita 253707-9 FLAT WASHER 16 |
| 30 | 231225-7 | Makita 231225-7 COMPRESSION SPRING 16, MT940 |
| 31 | 411594-4 | Makita 411594-4 SHOE |
| 32 | 815254-4 | |
| 33 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 34 | 152208-3 | Makita 152208-3 DUST COLLECTOR BRACKET |
| 35 | 911241-2 | Makita 911241-2 PAN HEAD SCREW M5X25 W, JR300VT |
| 36 | 241611-4 | Makita 241611-4 FAN 74 |
| 37 | 911211-1 | Makita 911211-1 PAN HEAD SCREW M5X12 |
| 38 | 343271-9 | Makita 343271-9 SEPARATOR |
| 39 | 312809-1 | Makita 312809-1 DUST COLLECTOR COVER |
| 40 | 911131-9 | Makita 911131-9 PAN HEAD SCREW M4X18 |
| 41 | 253922-5 | Makita 253922-5 CUP WASHER 12, MT940 |
| 42 | 152104-5 | Makita 152104-5 TENSION ROLLER COMPLETE |
| 43 | 253922-5 | Makita 253922-5 CUP WASHER 12, MT940 |
| 44 | 151189-8 | Makita 151189-8 FRAME COMPLETE |
| 45 | 911211-1 | Makita 911211-1 PAN HEAD SCREW M5X12 |
| 46 | 212003-4 | Makita 212003-4 NEEDLE BEARING 810 |
| 47 | 221193-2 | Makita 221193-2 HELICAL GEAR 10 |
| 48 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 49 | 152206-7 | Makita 152206-7 GEAR COVER COMPLETE |
| 50 | 222011-7 | Makita 222011-7 V-PULLEY 5-45 |
| 51 | 911131-9 | Makita 911131-9 PAN HEAD SCREW M4X18 |
| 52 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 53 | 253312-2 | Makita 253312-2 THIN WASHER 12 FOR M991 |
| 54 | 221070-8 | Makita 221070-8 HELICAL GEAR 48 |
| 55 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 56 | 341647-4 | Makita 341647-4 BASE PLATE |
| 57 | 423035-8 | Makita 423035-8 Cork Rubber Plate for 9924DB Belt Sander |
| 58 | 423036-6 | Makita 423036-6 Carbon Plate for Mod 9924DB |
| 59 | 911111-5 | Makita 911111-5 PAN HEAD SCREW M4*10, M926 |
| 60 | 911114-9 | Makita 911114-9 PAN HEAD SCREW M4X10 |
| 61 | 253922-5 | Makita 253922-5 CUP WASHER 12, MT940 |
| 62 | 254202-2 | Makita 254202-2 KEY 4 LS1013 |
| 63 | 151347-6 | Makita 151347-6 Driving Roller for Belt Sander 9900B 9924DB |
| 64 | 912227-9 | |
| 65 | 155326-6 | Makita 155326-6 EDGE SLIDER |
| 66 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 67 | 325458-5 | Makita 325458-5 TENSION ROLLER SHAFT |
| 68 | 163104-0 | Makita 163104-0 TENSION ROLLER ARM |
| 69 | 323634-5 | Makita 323634-5 SUPPORT PIN |
| 70 | 231033-6 | Makita 231033-6 COMPRESSION SPRING 11 |
