Makita 9903
Makita 9903: exploded parts diagram, 1 sheet, 65 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 9903: 65 positions on 1 sheet

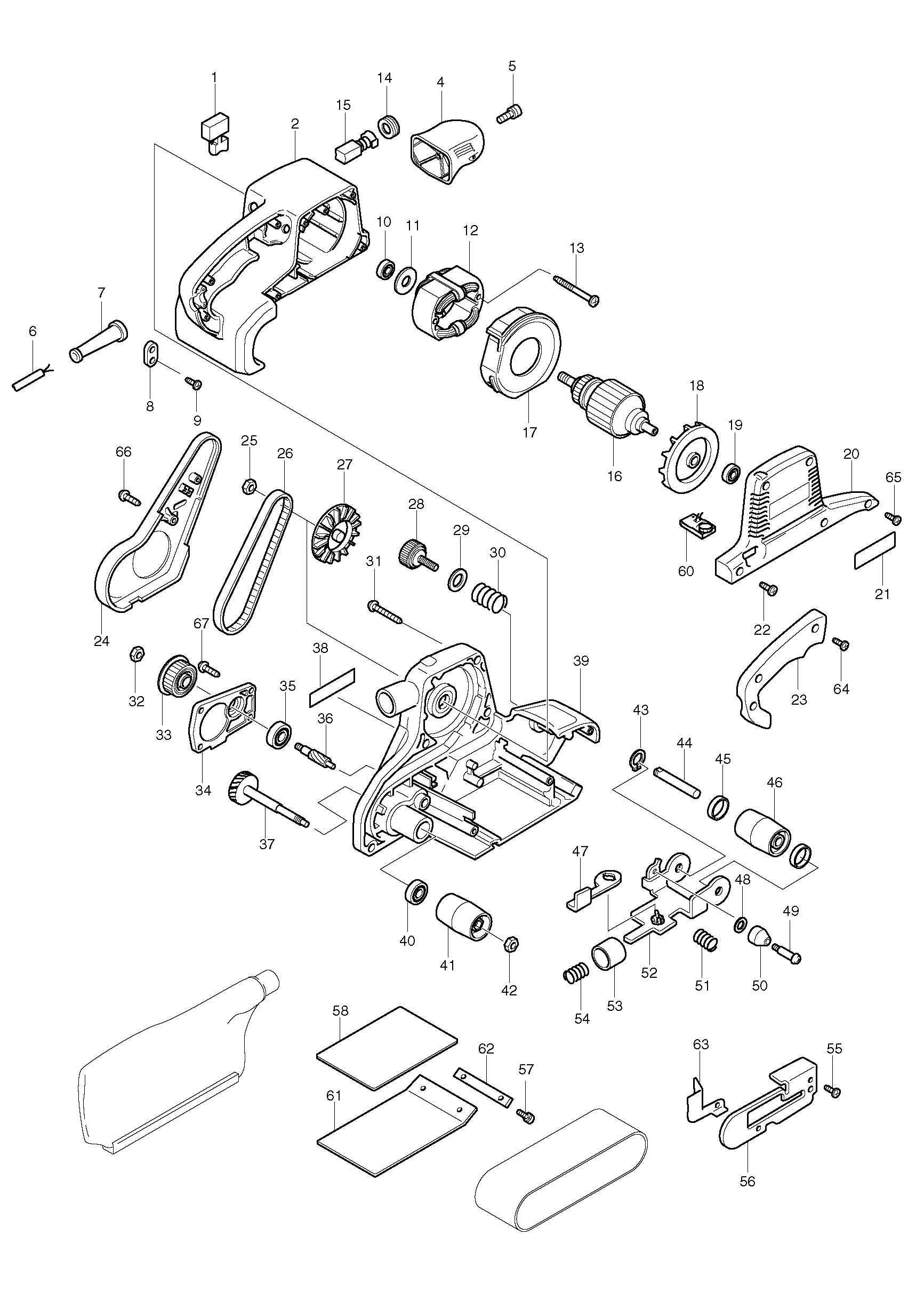

Sheet 1: Makita 9903 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 651284-9 | Makita 651284-9 SWITCH |
| 2 | 151743-8 | Makita 151743-8 MOTOR HOUSING COMPLETE |
| 4 | 417049-7 | Makita 417049-7 FRONT GRIP |
| 5 | 266173-1 | Makita 266173-1 TAPPING SCREW 5X30 |
| 6 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 7 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 8 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 9 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 10 | 211088-7 | Makita 211088-7 BALL BEARING 6000DDW, 9526NB |
| 11 | 681649-1 | Makita 681649-1 INSULATION WASHER, MT940 |
| 12 | 523404-4 | Makita 523404-4 FIELD ASS'Y 230-240V |
| 13 | 266056-5 | Makita 266056-5 TAPPING SCREW 5X45 |
| 14 | 643750-0 | Makita 643750-0 BRUSH HOLDER CAP, 4100NH |
| 15 | 191963-2 | Makita 191963-2 Carbon Brushes CB-303 for 5703 9403 9404 9903 |
| 16 | 513339-7 | Makita 513339-7 Armature Ass'y for 9920 9404 230-240V |
| 17 | 417050-2 | Makita 417050-2 BAFFLE PLATE |
| 18 | 240026-2 | Makita 240026-2 FAN 75 |
| 19 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 20 | 417047-1 | Makita 417047-1 MOTOR COVER |
| 21 | 819001-5 | |
| 22 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 23 | 417051-0 | Makita 417051-0 HANDLE COVER |
| 24 | 417052-8 | Makita 417052-8 BELT COVER |
| 25 | 252153-3 | Makita 252153-3 HEX. NUT M6-10 HR3000C |
| 26 | 225084-9 | Makita 225084-9 Belt Sander Rubber Drive Belt for 9920/9903/9404 |
| 27 | 241663-5 | Makita 241663-5 FAN 76 |
| 28 | 251815-0 | Makita 251815-0 SCREW M6X25 |
| 29 | 253707-9 | Makita 253707-9 FLAT WASHER 16 |
| 30 | 231225-7 | Makita 231225-7 COMPRESSION SPRING 16, MT940 |
| 31 | 266050-7 | Makita 266050-7 TAPPING SCREW, 6827 |
| 32 | 931402-8 | Makita 931402-8 Hex Nut M8 5037Nb |
| 33 | 222156-1 | Makita 222156-1 PULLEY 9.5-46.0 |
| 34 | 317273-1 | |
| 35 | 211092-6 | Makita 211092-6 Ball Bearing for 629DDW UB1101 |
| 36 | 226520-8 | Makita 226520-8 Helical Gear 10 |
| 37 | 151755-1 | Makita 151755-1 HELICAL GEAR 39 COMPLETE |
| 38 | 852044-4 | |
| 39 | 151746-2 | Makita 151746-2 FRAME COMPLETE |
| 40 | 211088-7 | Makita 211088-7 BALL BEARING 6000DDW, 9526NB |
| 41 | 162217-4 | Makita 162217-4 Driving Roller for 9404 9902 9903 9920 |
| 42 | 252154-1 | Makita 252154-1 HEX. NUT M8-13 |
| 43 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 44 | 323931-9 | Makita 323931-9 TENSION ROLLER SHAFT |
| 45 | 253922-5 | Makita 253922-5 CUP WASHER 12, MT940 |
| 46 | 151753-5 | Makita 151753-5 TENSION ROLLER COMPLETE |
| 47 | 344823-9 | Makita 344823-9 LEVER |
| 48 | 267731-6 | Makita 267731-6 CUP WASHER 4 |
| 49 | 265059-6 | Makita 265059-6 SHOULDER SCREW M4 |
| 50 | 416417-1 | Makita 416417-1 ROLLER |
| 51 | 233249-9 | Makita 233249-9 COMPRESSION SPRING 7 |
| 52 | 151744-6 | Makita 151744-6 TENSION ROLLER ARM COMPLE TE |
| 53 | 267746-3 | Makita 267746-3 CUP WASHER 17 |
| 54 | 233250-4 | Makita 233250-4 COMPRESSION SPRING 12 |
| 55 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 56 | 344821-3 | |
| 57 | 911116-5 | Makita 911116-5 PAN HEAD SCREW M4*12, 9035 |
| 58 | 193199-9 | OLDN Genuine Makita 193199-9 CORK RUBBER PLATE |
| 60 | 631380-9 | Makita 631380-9 CONTROLLER |
| 61 | 193197-3 | Makita 193197-3 Carbon Plate Pad 9903 9902 |
| 62 | 344848-3 | Makita 344848-3 STRAP WASHER |
| 63 | 344829-7 | |
| 64 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 65 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 66 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 67 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
