Makita 9741
Makita 9741: exploded parts diagram, 1 sheet, 68 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 9741: 68 positions on 1 sheet

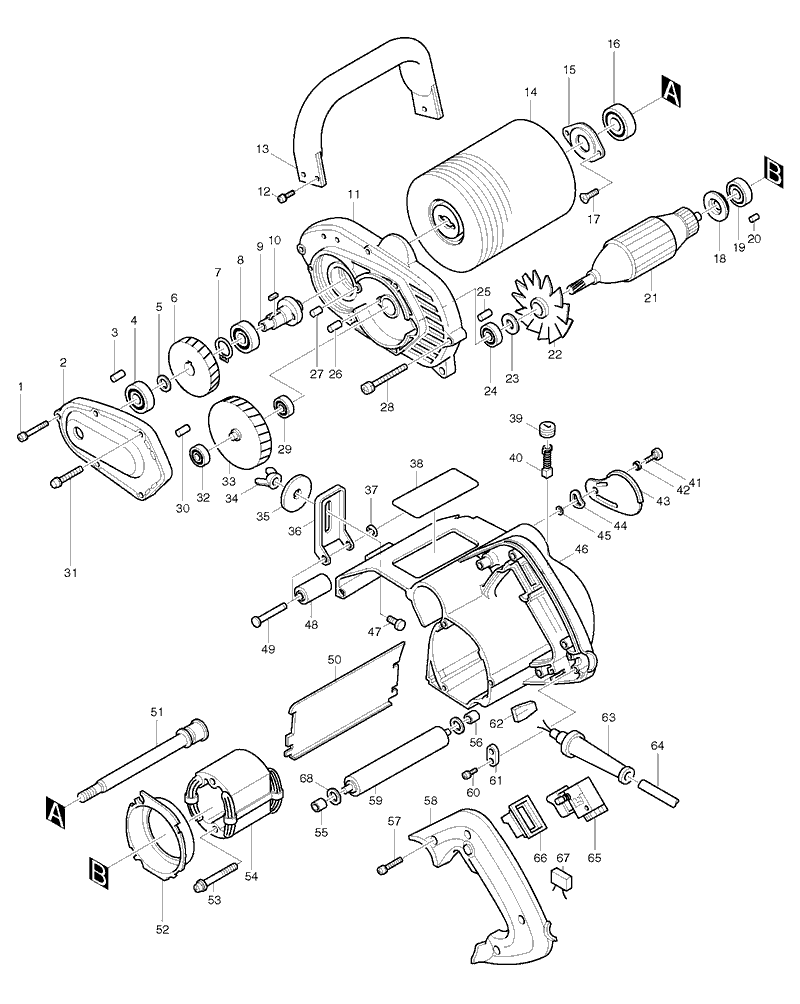

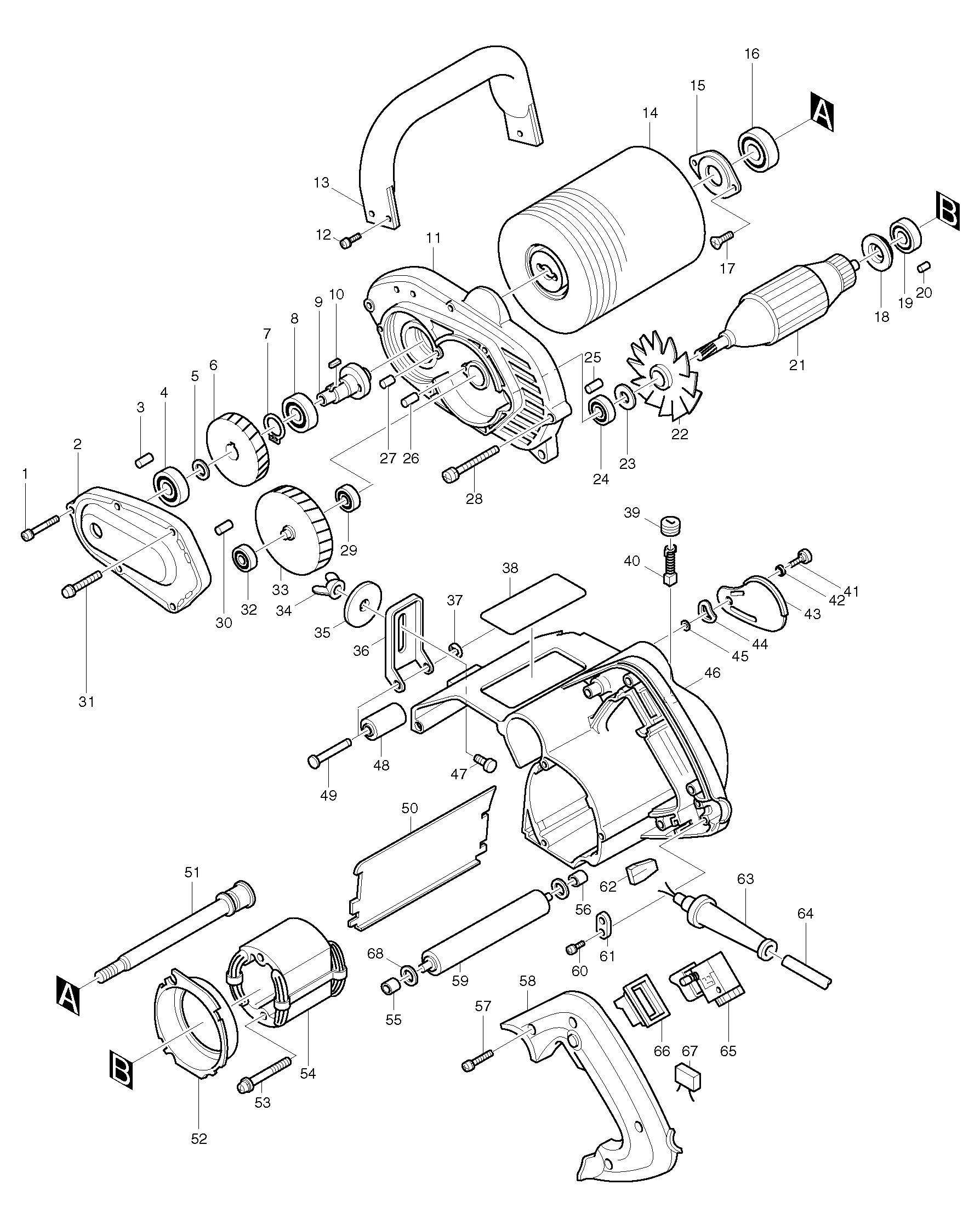

Sheet 1: Makita 9741 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 911248-8 | Makita 911248-8 PAN HEAD SCREW M5X28 |
| 2 | 157777-9 | Makita 157777-9 GEAR HOUSING COVER |
| 3 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 4 | 211101-1 | Makita 211101-1 BEARING 6001LLB, JR3060T |
| 5 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 6 | 221756-4 | Makita 221756-4 HELICAL GEAR 53 |
| 7 | 961055-9 | Makita 961055-9 RETAINING RING S-15, HR2010 |
| 8 | 211227-9 | Makita 211227-9 BALL BEARING 6002DDW |
| 9 | 163269-8 | Makita 163269-8 SPINDLE 9741 |
| 10 | 254219-5 | Makita 254219-5 KEY 4 |
| 11 | 157776-1 | Makita 157776-1 GEAR HOUSING 9741 |
| 12 | 911218-7 | Makita 911218-7 PAN HEAD SCREW M5X14, EBH252U |
| 13 | 273623-9 | Makita 273623-9 GRIP |
| 14 | 794380-1 | Makita 794380-1 SLIT PAPER WHEEL 120-40 |
| 15 | 285661-9 | Makita 285661-9 BEARING RETAINER |
| 16 | 211275-8 | Makita 211275-8 BALL BEARING 6003DDW |
| 17 | 912122-3 | Makita 912122-3 COUNTERSUNK HEAD SCREW M4 X14 |
| 18 | 681625-5 | Makita 681625-5 INSULATION WASHER, 9523B |
| 19 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 20 | 263014-2 | Makita 263014-2 RUBBER PIN 4, 3703 |
| 21 | 512928-5 | Makita 512928-5 ARMATURE ASS'Y 9741 |
| 22 | 241113-0 | Makita 241113-0 FAN 68 |
| 23 | 213059-0 | Makita 213059-0 DUST SEAL 10 |
| 24 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 25 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 26 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 27 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 28 | 911258-5 | Makita 911258-5 PAN HEAD SCREW M5X35 WR, 2414NB |
| 29 | 211019-6 | Makita 211019-6 BALL BEARING 626, EBH250U |
| 30 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 31 | 911278-9 | Makita 911278-9 PAN HEAD SCREW M5X55 |
| 32 | 211019-6 | Makita 211019-6 BALL BEARING 626, EBH250U |
| 33 | 153168-2 | Makita 153168-2 GEAR COMPLETE 64 |
| 34 | 934301-3 | Makita 934301-3 WING NUT M6, 5806B |
| 35 | 253196-8 | Makita 253196-8 FLAT WASHER 6 |
| 36 | 343434-7 | Makita 343434-7 DEPTH GUIDE |
| 37 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 38 | 855929-3 | Makita 855929-3 NAME PLATE 9741 |
| 39 | 643600-9 | Makita 643600-9 Holder Cup for DA6300 |
| 40 | 181030-1 | Makita 181030-1 Carbon Brushes CB-100 for 6906 9005B 9901 PC1100 |
| 41 | 251323-1 | Makita 251323-1 PAN HEAD SCREW M4 |
| 42 | 253308-3 | Makita 253308-3 THIN WASHER 6, HR2610 |
| 43 | 343436-3 | Makita 343436-3 COVER PLATE |
| 44 | 253980-1 | Makita 253980-1 WAVE WASHER 14 |
| 45 | 253874-0 | Makita 253874-0 Flat Washer 4 for UC3020A LS1016 |
| 46 | 157798-1 | Makita 157798-1 HOUSING |
| 47 | 251919-8 | Makita 251919-8 F.H. SQUARE NECK BOLT M6*20, N5900B |
| 48 | 162134-8 | Makita 162134-8 FRONT ROLLER |
| 49 | 256655-1 | Makita 256655-1 PIN 7 |
| 50 | 343435-5 | Makita 343435-5 PLATE |
| 51 | 322071-0 | Makita 322071-0 ARBOR |
| 52 | 410957-1 | Makita 410957-1 BAFFLE PLATE |
| 53 | 911285-2 | Makita 911285-2 PAN HEAD SCREW M5X60 |
| 54 | 527414-3 | Makita 527414-3 FIELD 220V 9741 |
| 55 | 262515-7 | Makita 262515-7 SLEEVE 6 9741 |
| 56 | 262515-7 | Makita 262515-7 SLEEVE 6 9741 |
| 57 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 58 | 410954-7 | Makita 410954-7 HANDLE COVER |
| 59 | 162133-0 | Makita 162133-0 ROLLER |
| 60 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 61 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 62 | 423096-8 | Makita 423096-8 SPONGE SEAL |
| 63 | 682516-3 | Makita 682516-3 CORD GUARD 9.3-85, HR2410 |
| 64 | 665883-1 | Makita 665883-1 POWER S.CORD CEE(H07RN-F), PC5000C |
| 65 | 651332-4 | Makita 651332-4 SWITCH SGEL210R-4 |
| 66 | 421323-7 | Makita 421323-7 SWITCH COVER |
| 67 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 68 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
