Makita 9566C: exploded parts diagram, 1 sheet, 61 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 9566C: 61 positions on 1 sheet

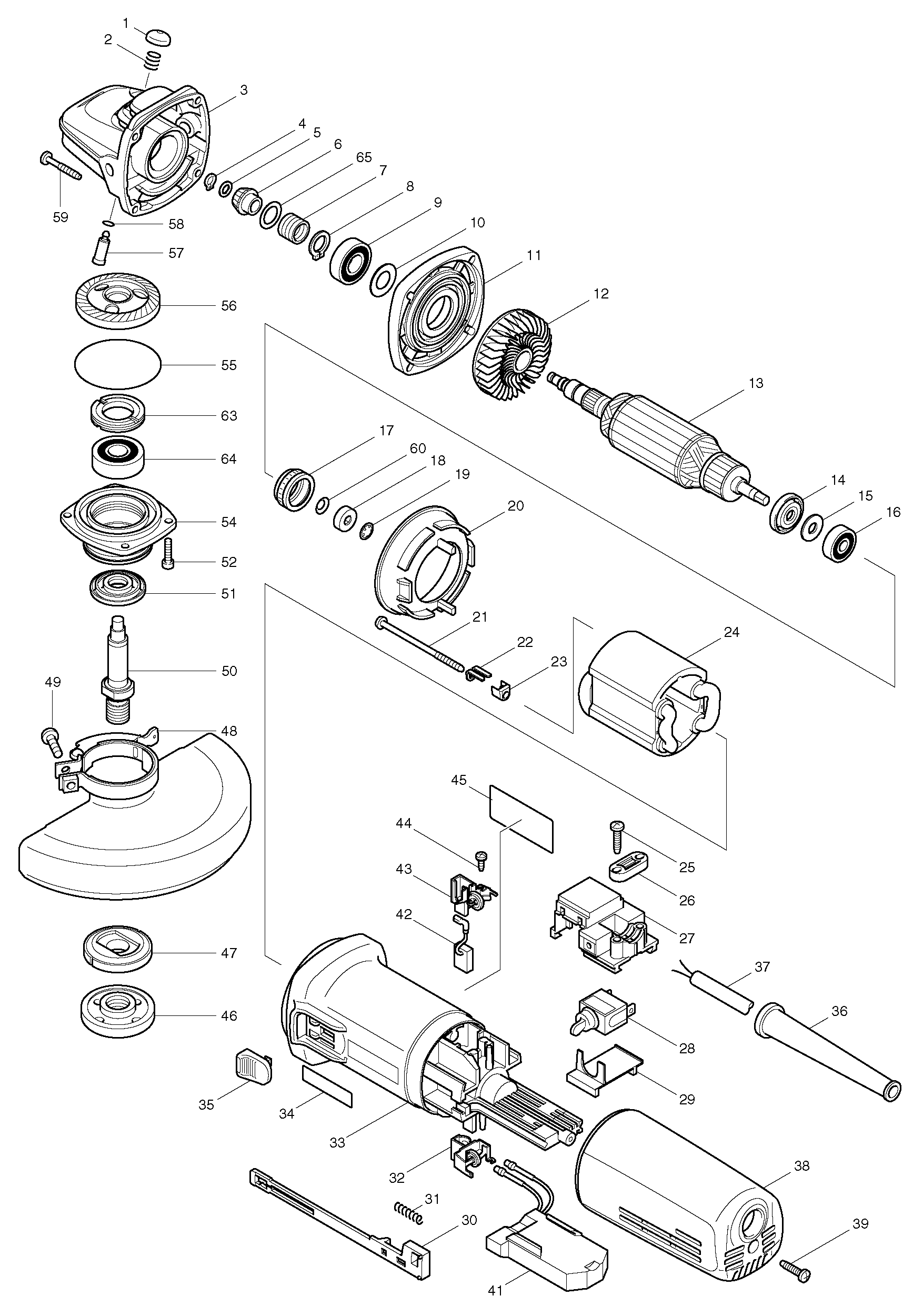

Sheet 1: Makita 9566C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 417236-8 | Makita 417236-8 PIN CAP |
| 2 | 233072-2 | Makita 233072-2 COMPRESSION SPRING 8, 9523NB |
| 3 | 153381-2 | Makita 153381-2 GEAR HOUSING COMP. 9562C |
| 4 | 961002-0 | Makita 961002-0 RETAINING RING S-6, 9523NB |
| 5 | 253077-6 | Makita 253077-6 FLAT WASHER 6 |
| 6 | 227429-7 | Makita 227429-7 SPIRAL BEVEL GEAR 9 9566C |
| 7 | 233901-9 | Makita 233901-9 LOCK SPRING 12 |
| 8 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 9 | 211142-7 | Makita 211142-7 BALL BEARING 6001LLB |
| 10 | 253084-9 | Makita 253084-9 FLAT WASHER 12, HR4002 |
| 11 | 317359-1 | Makita 317359-1 GEAR HOUSING COVER |
| 12 | 240033-5 | Makita 240033-5 FAN 57 |
| 13 | 515208-8 | Makita 515208-8 Armature Ass'y 220-240V for 9566C |
| 14 | 681656-4 | Makita 681656-4 INSULATION WASHER |
| 15 | 253823-7 | Makita 253823-7 FLAT WASHER 7, LS1040 |
| 16 | 210027-4 | Makita 210027-4 BALL BEARING 627DDW |
| 17 | 421738-8 | Makita 421738-8 LABYRINTH RUBBER RING 22 |
| 18 | 688117-5 | Makita 688117-5 Magnet Sleeve for GD0800C GDO810C |
| 19 | 259039-2 | Makita 259039-2 SELF LOCK 6 4340FTC |
| 20 | 413076-2 | Makita 413076-2 BAFFLE PLATE |
| 21 | 266258-3 | Makita 266258-3 TAPPING SCREW 4X70 |
| 22 | 344871-8 | Makita 344871-8 RETAINER, HR2230 |
| 23 | 417237-6 | Makita 417237-6 INSULATION COVER, MT814 |
| 24 | 626503-2 | Makita 626503-2 Field 220-240V for 9564PCV 9565C 9565CV 9566C 9566CV |
| 25 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 26 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 27 | 632945-0 | Makita 632945-0 SWITCH BLOCK |
| 28 | 651418-4 | Makita 651418-4 Switch ST115A-40 for 9526B SG1250 PW5000C 4305 BO6040 |
| 29 | 687113-0 | Makita 687113-0 COVER |
| 30 | 417186-7 | Makita 417186-7 SWITCH LEVER |
| 31 | 233071-4 | Makita 233071-4 COMPRESSION SPRING 4 |
| 32 | 643760-7 | Makita 643760-7 BRUSH HOLDER, 9553NB |
| 33 | 183407-6 | Makita 183407-6 MOTOR HOUSING 9565C |
| 34 | 819080-3 | |
| 35 | 417813-6 | Makita 417813-6 Switch Knob 9564 9565 BO6040 GD0800C SG1250 PW5000C |
| 36 | 682559-5 | Makita 682559-5 CORD GUARD 8-110, 6826 |
| 37 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 38 | 417183-3 | Makita 417183-3 REAR COVER |
| 39 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 41 | 631492-8 | Makita 631492-8 CONTROLLER 9566C |
| 42 | 191978-9 | Makita 191978-9 Carbon Brushes CB-318 for BO6040 GD0800C PW5000 |
| 43 | 643760-7 | Makita 643760-7 BRUSH HOLDER, 9553NB |
| 44 | 266256-7 | Makita 266256-7 TAPPING SCREW PT3X10 |
| 45 | 853734-2 | |
| 46 | 224554-5 | Makita 224554-5 Outer Blade Locking Flange M14 for 9069 9554 9015 |
| 47 | 122444-5 | |
| 48 | 122896-0 | Makita 122896-0 WHEEL COVER ASSY, GA6030 |
| 49 | 251391-4 | Makita 251391-4 PAN HEAD SCREW M5X16, 9523NB |
| 50 | 324035-0 | Makita 324035-0 SPINDLE |
| 51 | 415300-9 | Makita 415300-9 LABYRINTH RING |
| 52 | 265490-6 | Makita 265490-6 HEX. SOCKET HEAD BOLT M4X |
| 54 | 317570-5 | Makita 317570-5 LAAKERIPESÄ 9562C317570-5P=PAKETTI |
| 55 | 213673-2 | Makita 213673-2 O RING 52 |
| 56 | 227430-2 | Makita 227430-2 Bevel Gear for 9566C 9566CV SG1250 |
| 57 | 256459-1 | Makita 256459-1 PIN |
| 58 | 213048-5 | Makita 213048-5 O-Ring 6 |
| 59 | 266257-5 | Makita 266257-5 TAPPING SCREW 4*28, 9565C |
| 60 | 267756-0 | Makita 267756-0 WAVE WASHER 6 |
| 63 | 285841-7 | Makita 285841-7 BEARING RETAINER 9565C |
| 64 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 65 | 253052-2 | Makita 253052-2 FLAT WASHER 12, TD0900 |
