Makita 9558HP: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 9558HP: 56 positions on 1 sheet

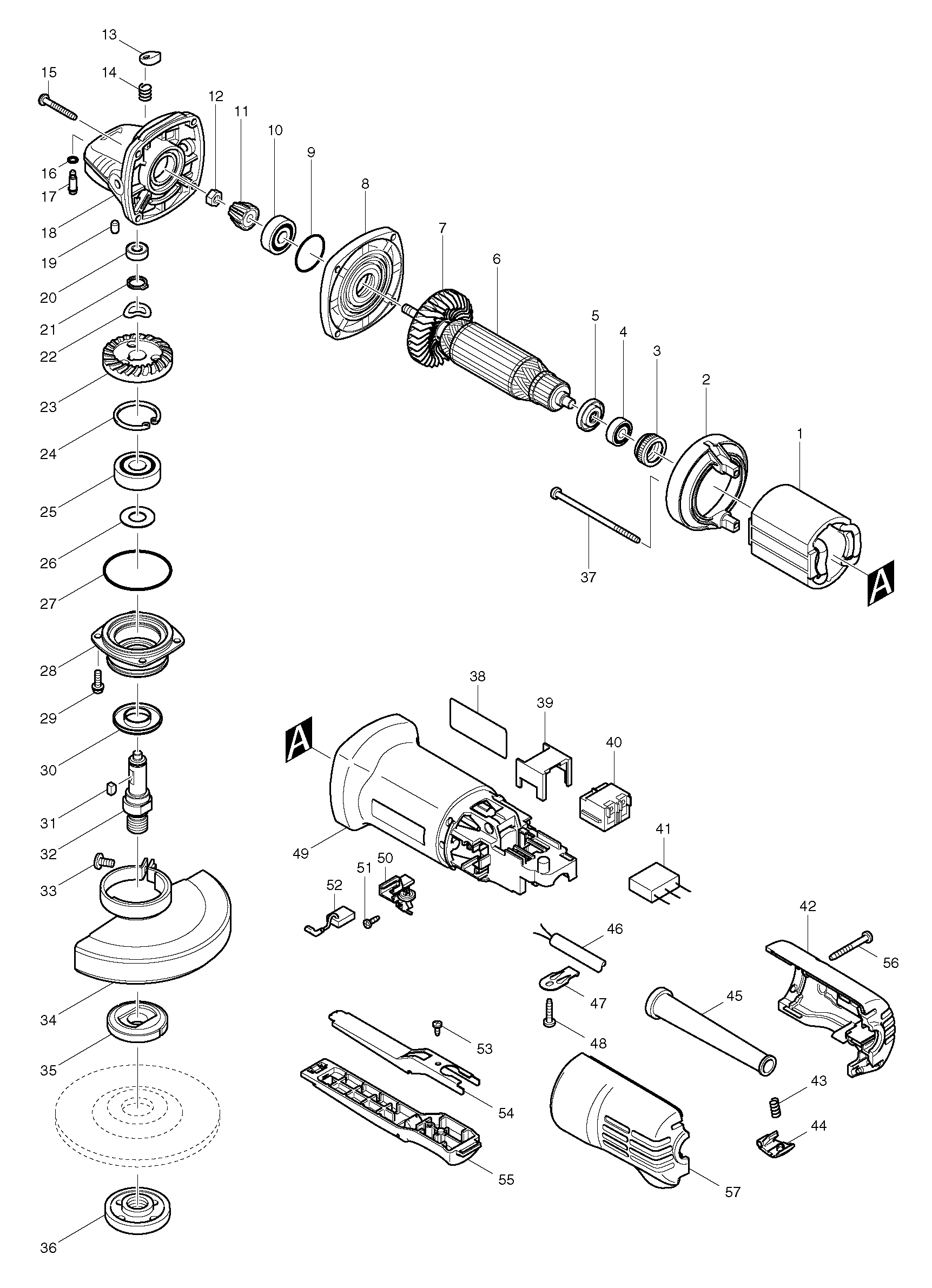

Sheet 1: Makita 9558HP parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 621708-9 | Makita 621708-9 Field for 9558NB 9557NB 9556NB |
| 2 | 418770-1 | Makita 418770-1 BAFFLE PLATE 9537NB, 9537NB |
| 3 | 421868-5 | Makita 421868-5 RUBBER RING 19 WITH LABYRINTH, 9556NB |
| 4 | 210034-7 | Makita 210034-7 Ball Bearing for 607LLB BO4556 |
| 5 | 681636-0 | Makita 681636-0 INSULATION WASHER, MT190 |
| 6 | 515613-9 | Makita 515613-9 Armature for 9558NB 9557NB |
| 8 | 317821-6 | Makita 317821-6 GEAR HOUSING COVER, 9536NB |
| 9 | 213445-5 | Makita 213445-5 O RING 26, MT952 |
| 10 | 210042-8 | Makita 210042-8 BALL BEARING 629LLB, MT410 |
| 11 | 227541-3 | Makita 227541-3 Spiral Bevel Gear 10 for 9553NB 9554NB 9555NB 9556NB 9557HN |
| 12 | 252186-8 | Makita 252186-8 HEX NUT M6, 9557NB |
| 13 | 417771-6 | Makita 417771-6 Pin Cap for GA5030 9555NB 9558NB BPJ140 |
| 14 | 233376-2 | Makita 233376-2 Compression Spring 8 for MT950 9557NB |
| 15 | 266361-0 | Makita 266361-0 TAPPING SCREW 4*30, 9526B |
| 16 | 213960-9 | Makita 213960-9 O-RING 5, 9556NB |
| 17 | 256486-8 | Makita 256486-8 Shoulder Pin 4 9553NB 9537NB 9554NB 9555NB 9557NB |
| 18 | 317814-3 | OLDN Makita 317814-3 Gear Housing 9553NB 9554NB 9554HN |
| 19 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 20 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 21 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 22 | 267794-2 | Makita 267794-2 WAVE WASHER 12, 9536NB |
| 23 | 227542-1 | Makita 227542-1 SPIRAL BEVEL GEAR 37, 9557HN |
| 24 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 25 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 26 | 267238-2 | Makita 267238-2 FLAT WASHER 12, MT952 |
| 27 | 213622-9 | Makita 213622-9 O-RING 45, 9536NB |
| 28 | 317819-3 | Makita 317819-3 BEARING BOX, 9557NB |
| 29 | 265099-4 | Makita 265099-4 PAN HEAD SCREW M4X14, MT951 |
| 30 | 345464-4 | Makita 345464-4 LABYRINTH RING, 9536NB |
| 31 | 254011-9 | Makita 254011-9 WOOD RUFF KEY 4, GA7011C |
| 32 | 324489-1 | Makita 324489-1 SPINDLE, 9536NB |
| 33 | 265103-9 | Makita 265103-9 PAN HEAD SCREW M5X14, MT952 |
| 34 | 125268-8 | Makita 125268-8 Wheel Cover Ass'y for 9555NB 9558 9562 9565 |
| 35 | 224415-9 | Makita 224415-9 Inner Flange M14 |
| 36 | 224554-5 | Makita 224554-5 Outer Blade Locking Flange M14 for 9069 9554 9015 |
| 37 | 266345-8 | Makita 266345-8 TAPPING SCREW 4*80, 9537NB |
| 38 | 865898-0 | |
| 39 | 418729-8 | Makita 418729-8 SPACER, 9537NB |
| 40 | 650560-8 | OLDN Makita 650560-8 SWITCH, 9533NB |
| 41 | 645233-6 | Makita 645233-6 CAPACITOR, 9533NB |
| 42 | 183943-2 | Makita 183943-2 REAR COVER, 9556PB |
| 43 | 231252-4 | |
| 44 | 418842-2 | Makita 418842-2 LOCK ON BUTTON, 9556PB |
| 45 | 682559-5 | Makita 682559-5 CORD GUARD 8-110, 6826 |
| 46 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 47 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 48 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 49 | 418838-3 | Makita 418838-3 MOTOR HOUSING, 9556PB |
| 50 | 643760-7 | Makita 643760-7 BRUSH HOLDER, 9553NB |
| 51 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 52 | 194074-2 | Makita 194074-2 Carbon Brushes СB-325 |
| 53 | 265954-0 | Makita 265954-0 TAPPING SCREW BIND PT3X8 |
| 54 | 345504-8 | Makita 345504-8 PLATE, 9556PB |
| 55 | 154584-1 | Makita 154584-1 SWITCH LEVER B COMPLETE, 9557PB |
| 56 | 266351-3 | Makita 266351-3 TAPPING SCREW 4*35, 9556PB |
| 57 | 183943-2 | Makita 183943-2 REAR COVER, 9556PB |
