Makita 9541
Makita 9541: exploded parts diagram, 1 sheet, 47 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 9541: 47 positions on 1 sheet

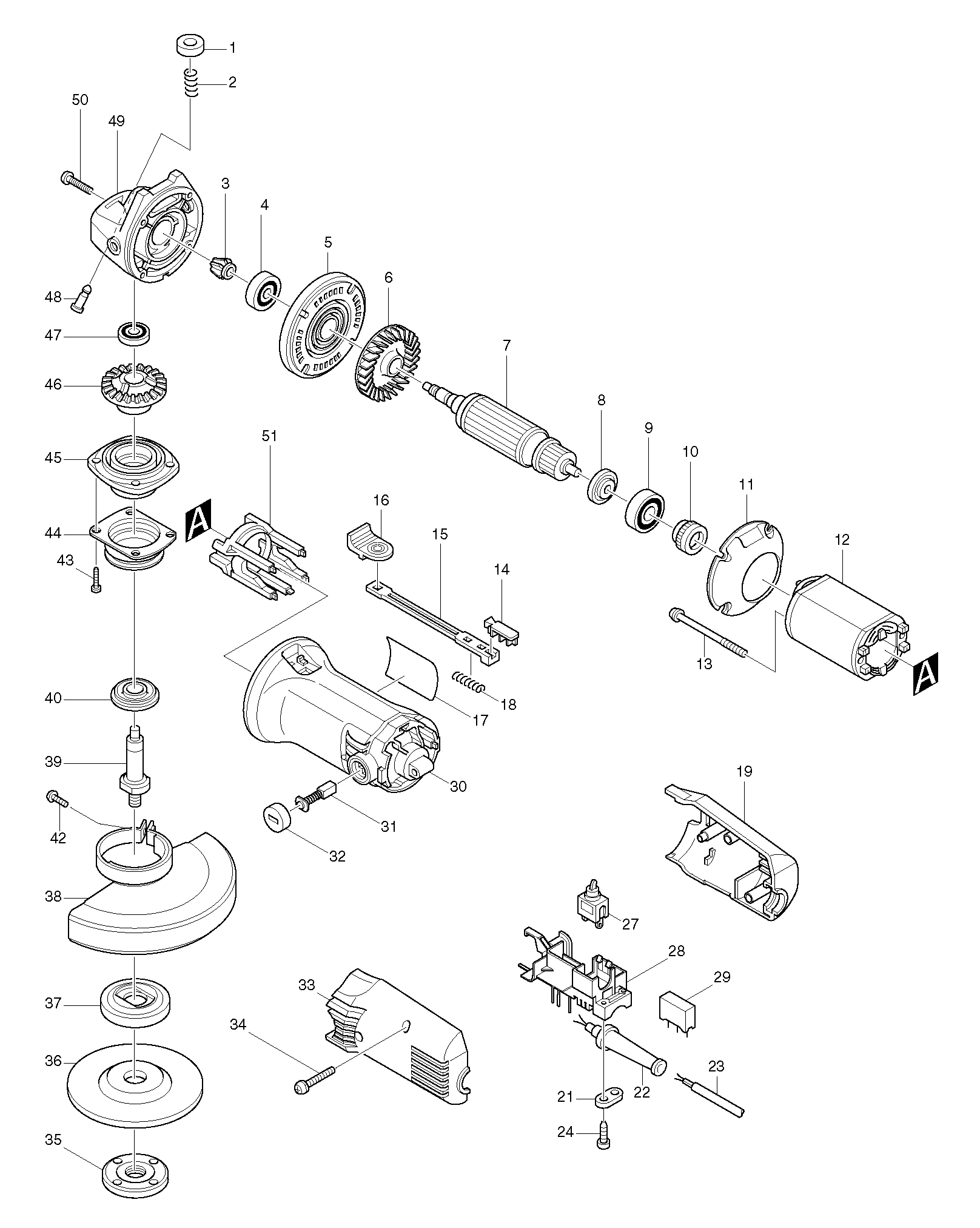

Sheet 1: Makita 9541 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 415301-7 | Makita 415301-7 PIN CAP |
| 2 | 233072-2 | Makita 233072-2 COMPRESSION SPRING 8, 9523NB |
| 3 | 226712-9 | Makita 226712-9 SPIRAL BEVEL GEAR 10 |
| 4 | 211056-0 | Makita 211056-0 BALL BEARING 629LLB |
| 5 | 415302-5 | Makita 415302-5 GEAR HOUSING COVER |
| 6 | 241867-9 | Makita 241867-9 FAN 57 |
| 7 | 517053-7 | Makita 517053-7 ARMATURE ASS'Y 220V |
| 8 | 681632-8 | Makita 681632-8 INSULATION WASHER |
| 9 | 210017-7 | Makita 210017-7 BALL BEARING 607DDW, 9528B |
| 10 | 421479-6 | Makita 421479-6 RUBBER RING 19 JN1601,6823, DP3003 |
| 11 | 415296-4 | Makita 415296-4 BAFFLE PLATE |
| 12 | 633248-5 | Makita 633248-5 FIELD 220V/240V |
| 13 | 266004-4 | Makita 266004-4 TAPPING SCREW FLANGE PT4X |
| 14 | 415305-9 | Makita 415305-9 SWITCH LEVER |
| 15 | 415304-1 | Makita 415304-1 SWITCH ROD |
| 16 | 415303-3 | Makita 415303-3 SWITCH KNOB |
| 17 | 857311-2 | Makita 857311-2 NAME PLATE |
| 18 | 233071-4 | Makita 233071-4 COMPRESSION SPRING 4 |
| 19 | 182576-0 | Makita 182576-0 REAR COVER SET |
| 21 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 22 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 23 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 24 | 265941-9 | Makita 265941-9 TAPPING SCREW 4X18 |
| 27 | 651418-4 | Makita 651418-4 Switch ST115A-40 for 9526B SG1250 PW5000C 4305 BO6040 |
| 28 | 632463-8 | |
| 29 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 30 | 159787-2 | Makita 159787-2 MOTOR HOUSING COMPLETE |
| 31 | 191959-3 | Makita 191959-3 Carbon Brushes CB-302 for 9541 9542 |
| 32 | 643753-4 | Makita 643753-4 BRUSH HOLDER CAP |
| 33 | 182576-0 | Makita 182576-0 REAR COVER SET |
| 34 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 35 | 224554-5 | Makita 224554-5 Outer Blade Locking Flange M14 for 9069 9554 9015 |
| 36 | B-02565 | |
| 37 | 224298-7 | |
| 38 | 165053-7 | |
| 39 | 322606-7 | Makita 322606-7 SPINDLE |
| 40 | 415300-9 | Makita 415300-9 LABYRINTH RING |
| 42 | 251391-4 | Makita 251391-4 PAN HEAD SCREW M5X16, 9523NB |
| 43 | 266003-6 | Makita 266003-6 TAPPING SCREW 4X16 |
| 44 | 344053-2 | Makita 344053-2 WHEEL COVER BASE |
| 45 | 161120-6 | Makita 161120-6 BEARING BOX COMPLETE |
| 46 | 226713-7 | Makita 226713-7 SPIRAL BEVEL GEAR 38 |
| 47 | 211023-5 | Makita 211023-5 BALL BEARING 607LB |
| 48 | 256435-5 | Makita 256435-5 PIN 5 |
| 49 | 316500-3 | Makita 316500-3 GEAR HOUSING |
| 50 | 266008-6 | Makita 266008-6 TAPPING SCREW PT5X30 |
| 51 | 632454-9 | Makita 632454-9 CONNECTING BLOCK |
