Makita 9527NB: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 9527NB: 43 positions on 1 sheet

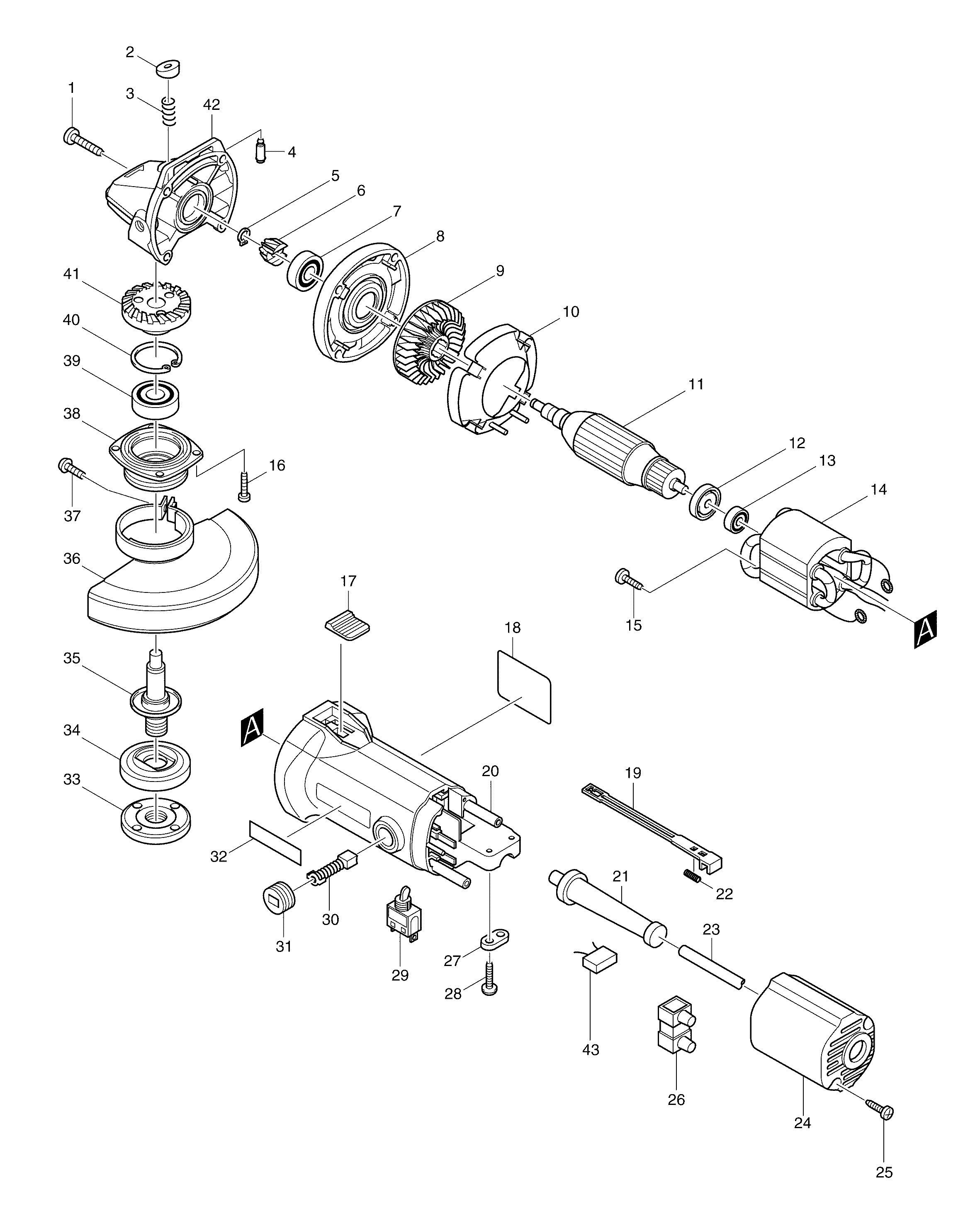

Sheet 1: Makita 9527NB parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266142-2 | Makita 266142-2 TAPPING SCREW FLANGE PF 5 X30 |
| 2 | 415491-6 | Makita 415491-6 PIN CAP |
| 3 | 233072-2 | Makita 233072-2 COMPRESSION SPRING 8, 9523NB |
| 4 | 256437-1 | Makita 256437-1 SHOULDER PIN 4, 9524 |
| 5 | 961002-0 | Makita 961002-0 RETAINING RING S-6, 9523NB |
| 6 | 226735-7 | Makita 226735-7 SPIRAL BEVEL GEAR 10 |
| 7 | 211088-7 | Makita 211088-7 BALL BEARING 6000DDW, 9526NB |
| 8 | 316807-7 | Makita 316807-7 GEAR HOUSING COVER, 9526NB |
| 9 | 241891-2 | Makita 241891-2 FAN 57, 9526NB |
| 10 | 415971-2 | Makita 415971-2 BAFFLE PLATE, 9526NB |
| 11 | 517173-7 | Makita 517173-7 ARMATURE ASS Y 220V |
| 12 | 681638-6 | Makita 681638-6 INSULATION WASHER, 9524NB |
| 13 | 211012-0 | Makita 211012-0 Ball Bearing 606ZZ, 9523NB |
| 14 | 521663-4 | Makita 521663-4 FIELD ASSY 220-240V, 9526PB |
| 15 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 16 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 17 | 415952-6 | Makita 415952-6 SWITCH KNOB, 9524NB |
| 18 | 858485-2 | Makita 858485-2 NAME PLATE 9527NB |
| 19 | 415953-4 | Makita 415953-4 SWITCH LEVER |
| 20 | 159866-6 | Makita 159866-6 MOTOR HOUSING COMPLETE, 9523NB |
| 21 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 22 | 233153-2 | Makita 233153-2 COMPRESSION SPRING 4 |
| 23 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 24 | 415955-0 | Makita 415955-0 REAR COVER, 9523NB |
| 25 | 266121-0 | Makita 266121-0 TAPPING SCREW FLANGE PF 4 X18 |
| 26 | 654532-5 | Makita 654532-5 TERMINAL BLOCK, 9523NB |
| 27 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 28 | 266121-0 | Makita 266121-0 TAPPING SCREW FLANGE PF 4 X18 |
| 29 | 651403-7 | Makita 651403-7 651433-8 OEM Switch for 3606 9523NB JS1670 9527NB |
| 30 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
| 31 | 643928-5 | Makita 643928-5 BRUSH HOLDER CAP, 9523NB |
| 32 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 33 | 224554-5 | Makita 224554-5 Outer Blade Locking Flange M14 for 9069 9554 9015 |
| 34 | 224298-7 | |
| 35 | 152516-2 | |
| 36 | 165053-7 | |
| 37 | 251391-4 | Makita 251391-4 PAN HEAD SCREW M5X16, 9523NB |
| 38 | 316800-1 | Makita 316800-1 BEARING BOX, 9523NB |
| 39 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 40 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 41 | 226734-9 | Makita 226734-9 SPIRAL BEVEL GEAR 36 |
| 42 | 159874-7 | Makita 159874-7 GEAR HOUSING COMPLETE, 9526NB |
| 43 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
