Makita 9522NB
Makita 9522NB: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 9522NB: 46 positions on 1 sheet

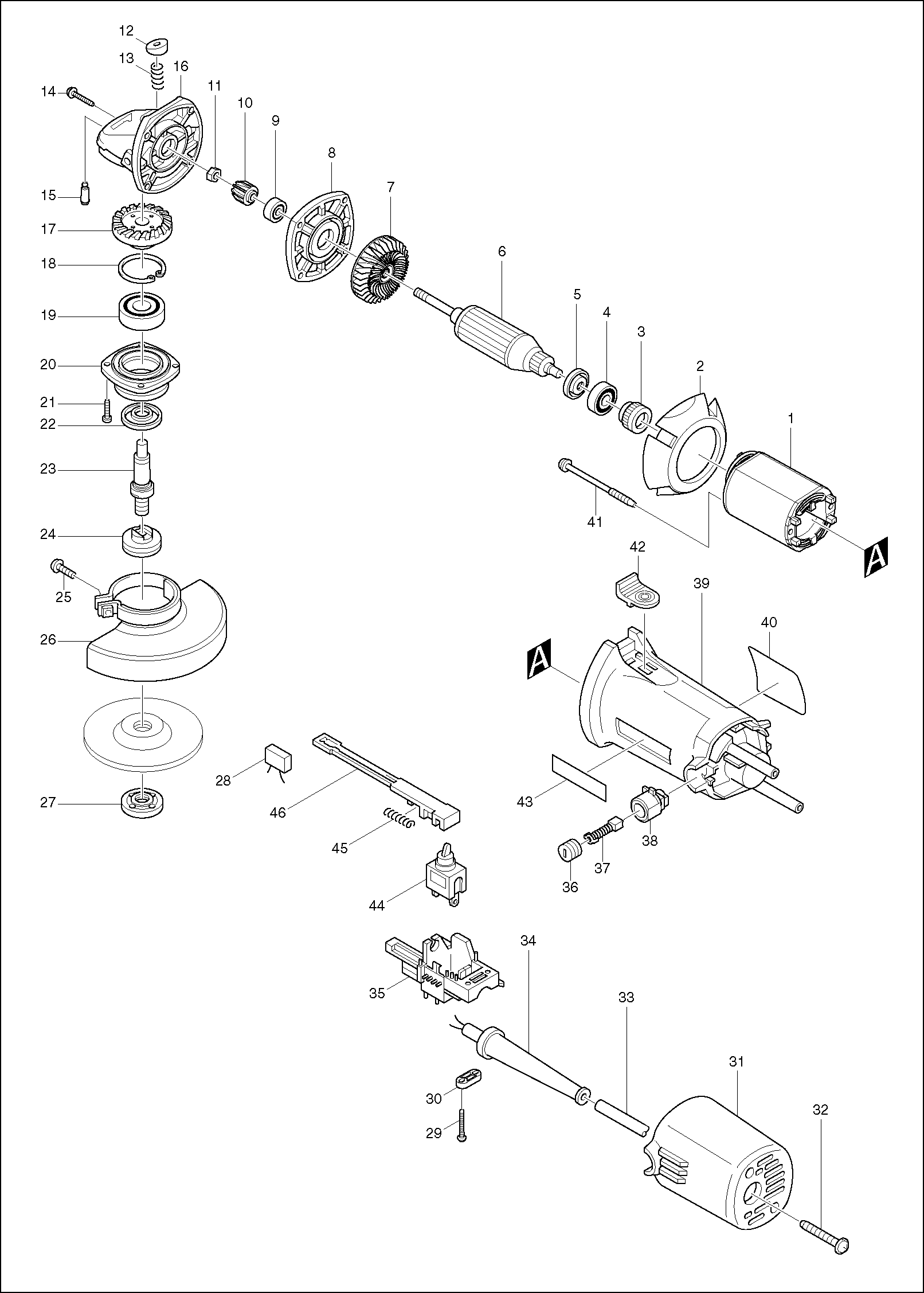

Sheet 1: Makita 9522NB parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 635003-1 | Makita 635003-1 FIELD 220V |
| 2 | 415490-8 | |
| 3 | 421494-0 | Makita 421494-0 Labyrinthhian Rubber Ring 9, 4304Z |
| 4 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 5 | 681636-0 | Makita 681636-0 INSULATION WASHER, MT190 |
| 6 | 517518-9 | Makita 517518-9 ARMATURE ASS'Y 220V |
| 7 | 241875-0 | Makita 241875-0 FAN 54 |
| 8 | 316601-7 | |
| 9 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 10 | 226723-4 | Makita 226723-4 SPIRAL BEVEL GEAR 9 |
| 11 | 252137-1 | Makita 252137-1 HEX NUT M5*8, GA4032 |
| 12 | 415491-6 | Makita 415491-6 PIN CAP |
| 13 | 233072-2 | Makita 233072-2 COMPRESSION SPRING 8, 9523NB |
| 14 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 15 | 256437-1 | Makita 256437-1 SHOULDER PIN 4, 9524 |
| 16 | 159711-5 | Makita 159711-5 GEAR HOUSING COMPLETE |
| 17 | 226724-2 | Makita 226724-2 SPIRAL BEVEL GEAR 38 |
| 18 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 19 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 20 | 316600-9 | Makita 316600-9 BEARING BOX |
| 21 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 22 | 415492-4 | Makita 415492-4 LABYRINTH RING |
| 23 | 322756-8 | Makita 322756-8 SPINDLE M14X2.0 |
| 24 | 224298-7 | |
| 25 | 251391-4 | Makita 251391-4 PAN HEAD SCREW M5X16, 9523NB |
| 26 | 165055-3 | |
| 27 | 224554-5 | Makita 224554-5 Outer Blade Locking Flange M14 for 9069 9554 9015 |
| 28 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 29 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 30 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 31 | 415540-9 | Makita 415540-9 REAR COVER |
| 32 | 266053-1 | Makita 266053-1 TAPPING SCREW 4*35, UB1101 |
| 33 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 34 | 682503-2 | Makita 682503-2 Cord Guard 8-90, 5806B |
| 35 | 687069-7 | Makita 687069-7 SUPPORT |
| 36 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 37 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
| 38 | 643922-7 | Makita 643922-7 BRUSH HOLDER |
| 39 | 159755-5 | Makita 159755-5 MOTOR HOUSING COMPLETE |
| 40 | 857552-0 | Makita 857552-0 NAME PLATE 9522NB |
| 41 | 266049-2 | Makita 266049-2 TAPPING SCREW FLANGE PT 4 X75 |
| 42 | 415303-3 | Makita 415303-3 SWITCH KNOB |
| 43 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 44 | 651418-4 | Makita 651418-4 Switch ST115A-40 for 9526B SG1250 PW5000C 4305 BO6040 |
| 45 | 233071-4 | Makita 233071-4 COMPRESSION SPRING 4 |
| 46 | 415541-7 | Makita 415541-7 SWITCH LEVER |
