Makita 9403
Makita 9403: exploded parts diagram, 1 sheet, 70 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 9403: 70 positions on 1 sheet

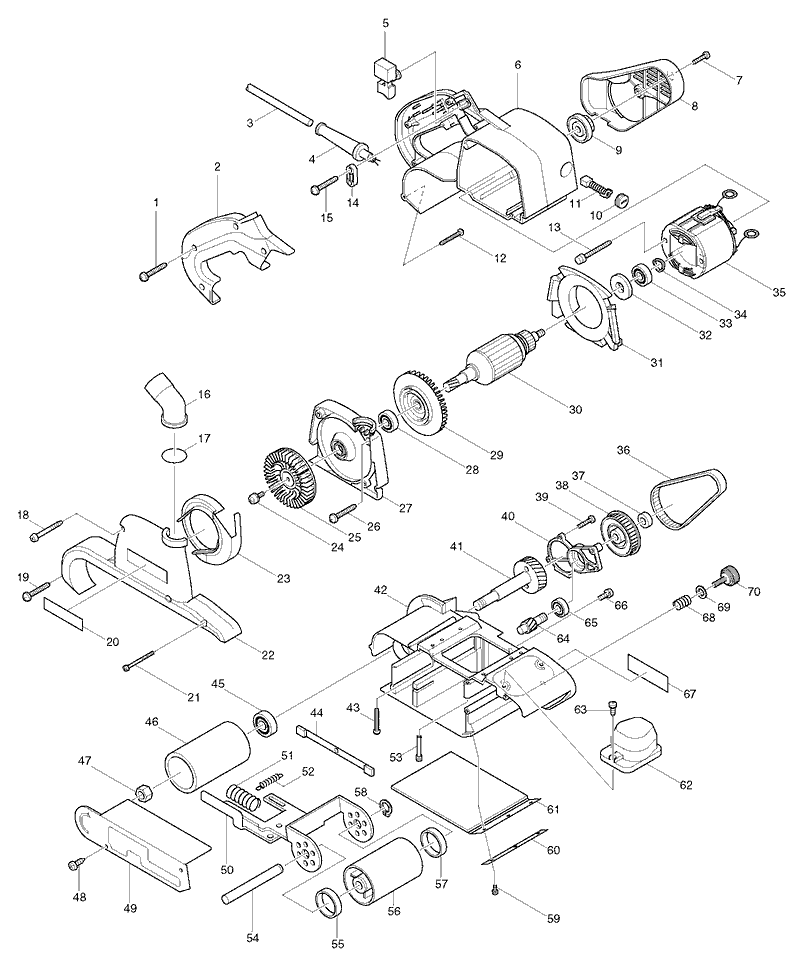

Sheet 1: Makita 9403 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 2 | 416496-9 | Makita 416496-9 HANDLE COVER |
| 3 | 665883-1 | Makita 665883-1 POWER S.CORD CEE(H07RN-F), PC5000C |
| 4 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 5 | 651284-9 | Makita 651284-9 SWITCH |
| 6 | 150981-9 | Makita 150981-9 MOTOR HOUSING COMPLETE |
| 7 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 8 | 416495-1 | Makita 416495-1 BELT COVER |
| 9 | 222147-2 | Makita 222147-2 Pulley for Belt Sander 9403 |
| 10 | 643750-0 | Makita 643750-0 BRUSH HOLDER CAP, 4100NH |
| 11 | 191963-2 | Makita 191963-2 Carbon Brushes CB-303 for 5703 9403 9404 9903 |
| 12 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 13 | 266056-5 | Makita 266056-5 TAPPING SCREW 5X45 |
| 14 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 15 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 16 | 416497-7 | Makita 416497-7 Plastic Dust Nozzle 9403 9921 HR4511C |
| 17 | 213415-4 | Makita 213415-4 O RING 28 |
| 18 | 266069-6 | Makita 266069-6 TAPPING SCREW, UB1101 |
| 19 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 20 | 819064-1 | Makita 819064-1 MAKITA LOGO LABEL, LS1040 |
| 21 | 266203-8 | Makita 266203-8 TAPPING SCREW BIND CT 4X4 |
| 22 | 317018-7 | Makita 317018-7 DUST COLLECTOR COVER |
| 23 | 416494-3 | Makita 416494-3 SEPARATOR |
| 24 | 911213-7 | Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013 |
| 25 | 241662-7 | Makita 241662-7 FAN 80, 9403 |
| 26 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 27 | 317021-8 | Makita 317021-8 DUST COLLECTOR BRACKET |
| 28 | 211088-7 | Makita 211088-7 BALL BEARING 6000DDW, 9526NB |
| 29 | 240013-1 | Makita 240013-1 FAN 84, 9403 |
| 30 | 516783-7 | Makita 516783-7 Armature Ass'y 240V for 9403 Belt Sander |
| 31 | 416498-5 | Makita 416498-5 BAFFLE PLATE |
| 32 | 681649-1 | Makita 681649-1 INSULATION WASHER, MT940 |
| 33 | 211088-7 | Makita 211088-7 BALL BEARING 6000DDW, 9526NB |
| 34 | 253946-1 | Makita 253946-1 WAVE WASHER 18 |
| 35 | 596193-4 | Makita 596193-4 FIELD ASS Y 220-240V |
| 36 | 225081-5 | Makita 225081-5 Drive Belt for 9403 Belt Sander |
| 37 | 931503-2 | Makita 931503-2 HEX. NUT M10 |
| 38 | 222148-0 | Makita 222148-0 Pulley 11-55.6 for Belt Sander 9403 |
| 39 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 40 | 317020-0 | Makita 317020-0 GEAR COVER, 9403 |
| 41 | 153265-4 | Makita 153265-4 HELICAL GEAR 9403 |
| 42 | 150979-6 | Makita 150979-6 FRAME COMPLETE |
| 43 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 44 | 150846-5 | Makita 150846-5 EDGE SLIDER COMLETE FOR |
| 45 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 46 | 162199-0 | Makita 162199-0 Driving Roller for 9403 |
| 47 | 252087-0 | Makita 252087-0 HEX NUT M12-19, M993 |
| 48 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 49 | 344622-9 | Makita 344622-9 SAFETY COVER, MT940 |
| 50 | 163398-7 | Makita 163398-7 TENSION ROLLER ARM 9403 |
| 51 | 233235-0 | Makita 233235-0 COMPRESSION SPRING 12, MT940 |
| 52 | 231819-8 | Makita 231819-8 TENSION SPRING 4, MT940 |
| 53 | 321980-0 | Makita 321980-0 ARM SUPPORT PIN, MT940 |
| 54 | 323829-0 | Makita 323829-0 TENSION ROLLER SHAFT, MT940 |
| 55 | 253922-5 | Makita 253922-5 CUP WASHER 12, MT940 |
| 56 | 150978-8 | Makita 150978-8 Tension Roller Complete for MT990 |
| 57 | 253922-5 | Makita 253922-5 CUP WASHER 12, MT940 |
| 58 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 59 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 60 | 344623-7 | Makita 344623-7 STRAP WASHER, MT940 |
| 61 | 421093-8 | Makita 421093-8 Cork Rubber Plate 9401 9402 9403 |
| 62 | 416499-3 | Makita 416499-3 FRONT GRIP |
| 63 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 64 | 226506-2 | Makita 226506-2 HELICAL GEAR 12 |
| 65 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 66 | 911213-7 | Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013 |
| 67 | 859611-6 | Makita 859611-6 NAME PLATE 9403 |
| 68 | 231225-7 | Makita 231225-7 COMPRESSION SPRING 16, MT940 |
| 69 | 253707-9 | Makita 253707-9 FLAT WASHER 16 |
| 70 | 251815-0 | Makita 251815-0 SCREW M6X25 |
