Makita 9401
Makita 9401: exploded parts diagram, 1 sheet, 72 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 9401: 72 positions on 1 sheet

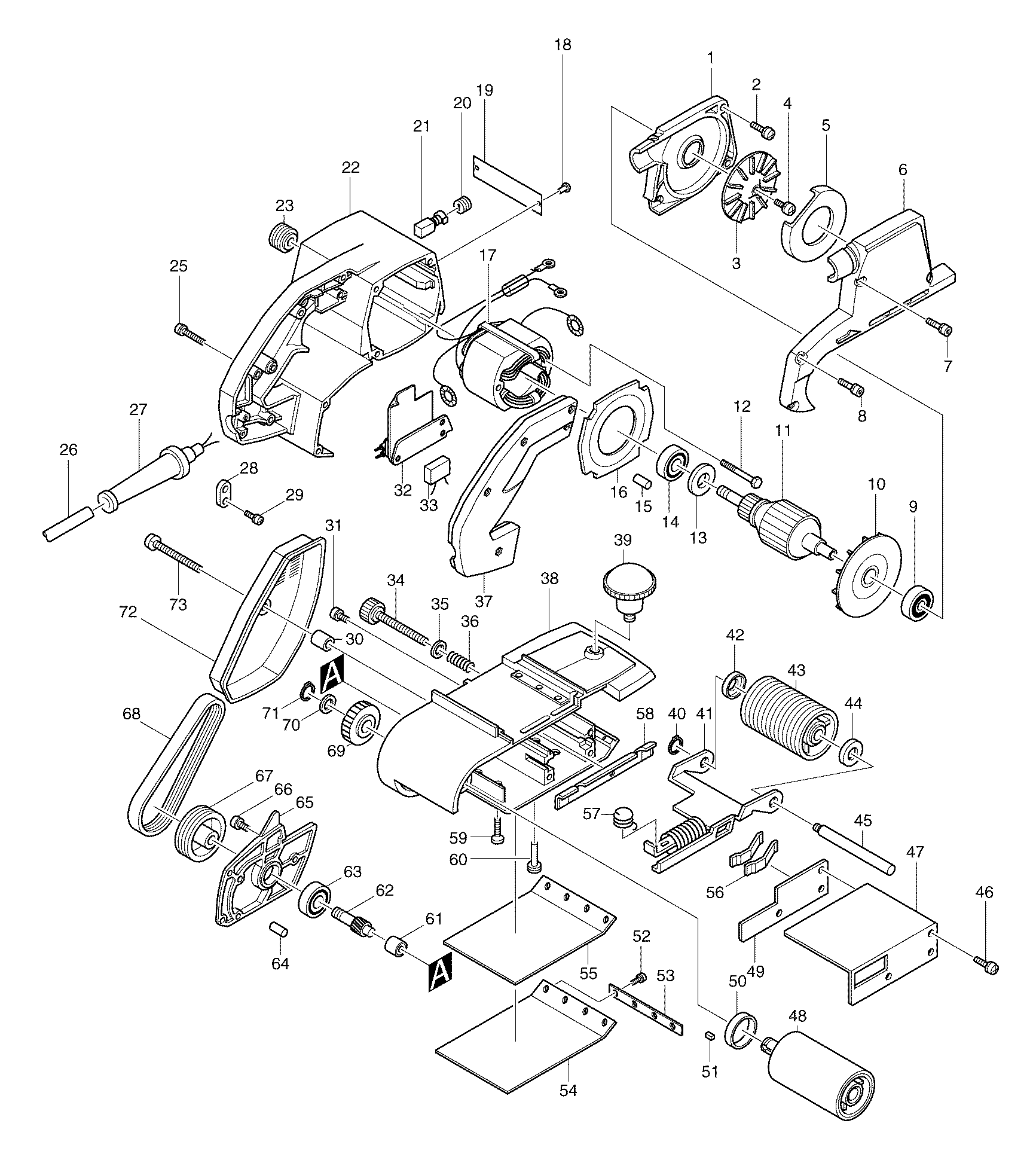

Sheet 1: Makita 9401 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 151177-5 | Makita 151177-5 DUST COLLECTOR BRACKET |
| 2 | 911226-8 | Makita 911226-8 PAN HEAD SCREW M5X18 |
| 3 | 241611-4 | Makita 241611-4 FAN 74 |
| 4 | 911211-1 | Makita 911211-1 PAN HEAD SCREW M5X12 |
| 5 | 343166-6 | Makita 343166-6 SEPARATOR |
| 6 | 315772-7 | Makita 315772-7 Dust Collector Cover |
| 7 | 911241-2 | Makita 911241-2 PAN HEAD SCREW M5X25 W, JR300VT |
| 8 | 911241-2 | Makita 911241-2 PAN HEAD SCREW M5X25 W, JR300VT |
| 9 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 10 | 241806-9 | |
| 11 | 514205-1 | Makita 514205-1 ARMATURE ASSY 230V 9401 |
| 12 | 911270-5 | Makita 911270-5 PAN HEAD SCREW M5X45 |
| 13 | 681624-7 | Makita 681624-7 INSULATION WASHER |
| 14 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 15 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 16 | 411143-7 | Makita 411143-7 BAFFLE PLATE |
| 17 | 524205-3 | Makita 524205-3 FIELD ASS Y 220V |
| 18 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 19 | 811732-2 | Makita 811732-2 NAME PLATE 9401 |
| 20 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 21 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 22 | 156225-5 | Makita 156225-5 MOTOR HOUSING |
| 23 | 222012-5 | Makita 222012-5 V-PULLEY 6-24L |
| 25 | 911158-9 | Makita 911158-9 PAN HEAD SCREW M4*30, MT960 |
| 26 | 665883-1 | Makita 665883-1 POWER S.CORD CEE(H07RN-F), PC5000C |
| 27 | 682516-3 | Makita 682516-3 CORD GUARD 9.3-85, HR2410 |
| 28 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 29 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 30 | 257504-5 | Makita 257504-5 SLEEVE 6 |
| 31 | 911221-8 | Makita 911221-8 PAN HEAD SCREW M5X16 |
| 32 | 651018-0 | Makita 651018-0 Switch HPAHR2-3S HL1800L 9217SPC 9207SPB |
| 33 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 34 | 251821-5 | Makita 251821-5 SCREW M8X72 |
| 35 | 941202-8 | Makita 941202-8 FLAT WASHER 8 |
| 36 | 231110-4 | Makita 231110-4 COMPRESSION SPRING 9 |
| 37 | 411142-9 | Makita 411142-9 HANDLE COVER |
| 38 | 156226-3 | |
| 39 | 271207-7 | Makita 271207-7 Knob 55 for 9401 |
| 40 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 41 | 163039-5 | Makita 163039-5 TENSION ROLLER ARM |
| 42 | 253922-5 | Makita 253922-5 CUP WASHER 12, MT940 |
| 43 | 152103-7 | Makita 152103-7 TENSION ROLLER COMPLETE |
| 44 | 253922-5 | Makita 253922-5 CUP WASHER 12, MT940 |
| 45 | 325108-2 | Makita 325108-2 Tension Roller Shaft |
| 46 | 911226-8 | Makita 911226-8 PAN HEAD SCREW M5X18 |
| 47 | 342331-4 | |
| 48 | 151346-8 | DISC Makita 151346-8 Driving Roller for 9401 9402 |
| 49 | 341195-3 | Makita 341195-3 BALANCE PLATE |
| 50 | 253922-5 | Makita 253922-5 CUP WASHER 12, MT940 |
| 51 | 254202-2 | Makita 254202-2 KEY 4 LS1013 |
| 52 | 911111-5 | Makita 911111-5 PAN HEAD SCREW M4*10, M926 |
| 53 | 341079-5 | Makita 341079-5 STRAP WASHER |
| 54 | 423029-3 | Makita 423029-3 Carbon Plate for 9401 9402 |
| 55 | 421093-8 | Makita 421093-8 Cork Rubber Plate 9401 9402 9403 |
| 56 | 232029-0 | Makita 232029-0 LEAF SPRING |
| 57 | 231520-5 | |
| 58 | 155885-0 | Makita 155885-0 EDGE SLIDER |
| 59 | 912227-9 | |
| 60 | 325109-0 | Makita 325109-0 SUPPORT PIN |
| 61 | 212003-4 | Makita 212003-4 NEEDLE BEARING 810 |
| 62 | 221193-2 | Makita 221193-2 HELICAL GEAR 10 |
| 63 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 64 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 65 | 152204-1 | Makita 152204-1 GEAR COVER COMPLETE |
| 66 | 911221-8 | Makita 911221-8 PAN HEAD SCREW M5X16 |
| 67 | 222038-7 | Makita 222038-7 V-PULLEY 6-55.7 |
| 68 | 225021-3 | Makita 225021-3 Drive Belt 6-355 |
| 69 | 221194-0 | Makita 221194-0 HELICAL GEAR 42 |
| 70 | 253312-2 | Makita 253312-2 THIN WASHER 12 FOR M991 |
| 71 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 72 | 343165-8 | Makita 343165-8 BELT COVER |
| 73 | 911261-6 | Makita 911261-6 PAN HEAD SCREW M5X40 |
