Makita 9227CB: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 9227CB: 48 positions on 1 sheet

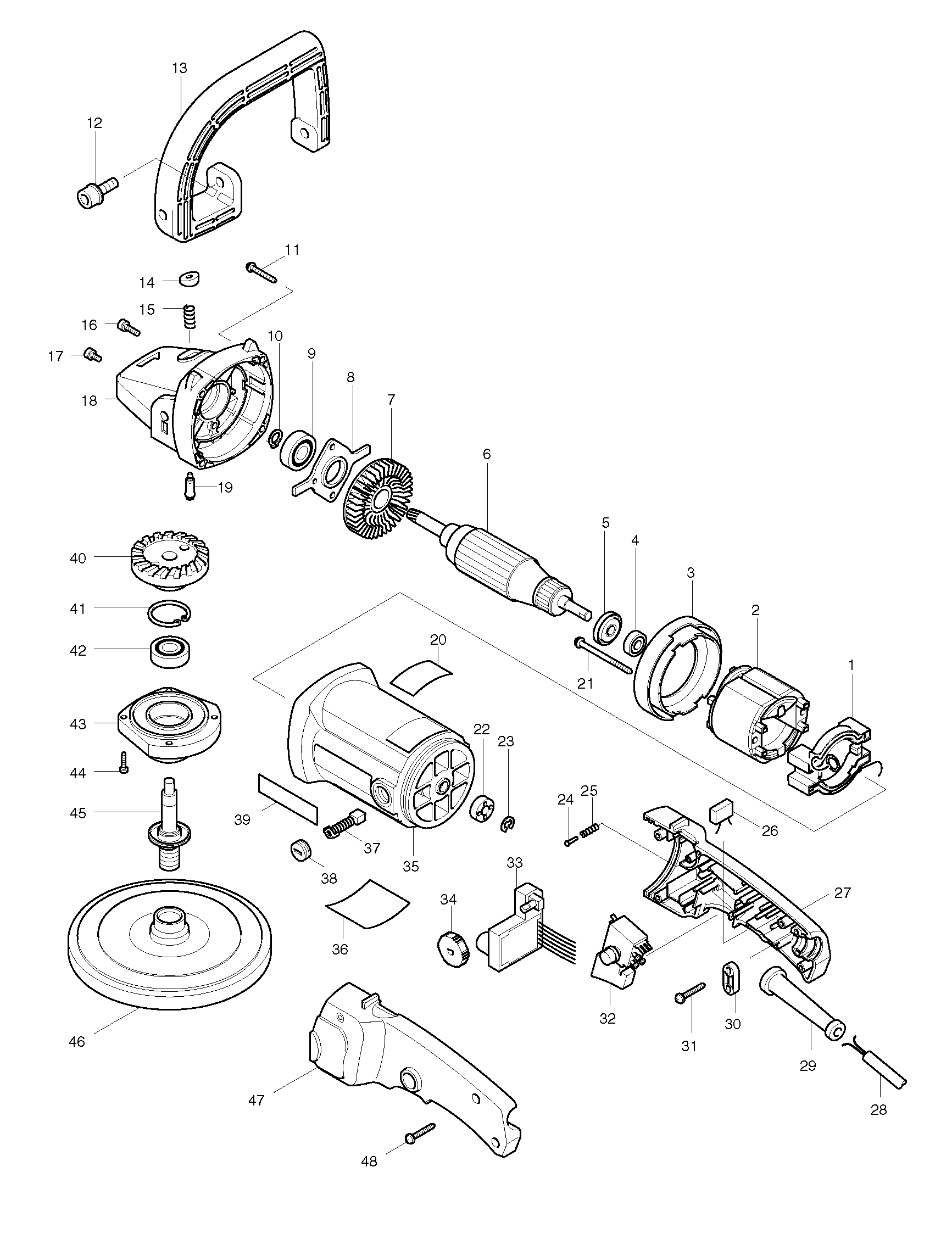

Sheet 1: Makita 9227CB parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 632679-5 | Makita 632679-5 Support Complete for 9227C |
| 2 | 634293-3 | Makita 634293-3 Field 220/240V for 9227CB 9237CB |
| 3 | 416253-5 | Makita 416253-5 BAFFLE PLATE |
| 4 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 5 | 681644-1 | Makita 681644-1 RESIN WASHER, MT110 |
| 6 | 516308-7 | Makita 516308-7 Armature Ass'y for 9227CB 240V |
| 7 | 240002-6 | Makita 240002-6 FAN 70 |
| 8 | 285687-1 | Makita 285687-1 BEARING RETAINER 48 |
| 9 | 211106-1 | Makita 211106-1 Ball Bearing 6201LLB, 9035 |
| 10 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 11 | 266012-5 | Makita 266012-5 TAPPING SCREW 5X35, 9067 |
| 12 | 266171-5 | Makita 266171-5 HEX SOCKET HEAD BOLT M8X |
| 13 | 416348-4 | Makita 416348-4 LOOP HANDLE FOR |
| 14 | 415491-6 | Makita 415491-6 PIN CAP |
| 15 | 233072-2 | Makita 233072-2 COMPRESSION SPRING 8, 9523NB |
| 16 | 911221-8 | Makita 911221-8 PAN HEAD SCREW M5X16 |
| 17 | 911211-1 | Makita 911211-1 PAN HEAD SCREW M5X12 |
| 18 | 159951-5 | Makita 159951-5 GEAR HOUSING COMPLETE FOR |
| 19 | 256446-0 | Makita 256446-0 PIN 6 |
| 20 | 816330-7 | Makita 816330-7 INDICATION LABEL |
| 21 | 266038-7 | Makita 266038-7 TAPPING SCREW?FLANGE?PT?5 X70 |
| 22 | 688110-9 | Makita 688110-9 MAGNET SLEEVE 9227CB |
| 23 | 961012-7 | Makita 961012-7 STOP RING, JR307CT |
| 24 | 255058-6 | Makita 255058-6 RIVET 2 FOR |
| 25 | 233002-3 | Makita 233002-3 COMPRESSION SPRING 3 |
| 26 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 27 | 182917-0 | Makita 182917-0 HANDLE SET FOR 9227CB |
| 28 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 29 | 682516-3 | Makita 682516-3 CORD GUARD 9.3-85, HR2410 |
| 30 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 31 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 32 | 651282-3 | Makita 651282-3 Switch for 9227C 9227CY 9227CE |
| 33 | 631227-7 | Makita 631227-7 Controller 200-250V for 9227C 9227CB 9237CB |
| 34 | 271417-6 | Makita 271417-6 Dial 28 for 9227CB |
| 35 | 182918-8 | Makita 182918-8 MOTOR HOUSING SET 9227CB |
| 36 | 858696-9 | Makita 858696-9 NAME PLATE 9227CB |
| 37 | 191963-2 | Makita 191963-2 Carbon Brushes CB-303 for 5703 9403 9404 9903 |
| 38 | 643750-0 | Makita 643750-0 BRUSH HOLDER CAP, 4100NH |
| 39 | 819001-5 | |
| 40 | 226744-6 | Makita 226744-6 SPIRAL BEVEL GEAR 52 FOR |
| 41 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 42 | 211106-1 | Makita 211106-1 Ball Bearing 6201LLB, 9035 |
| 43 | 316896-2 | Makita 316896-2 BEARING BOX FOR 9227CB |
| 44 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 45 | 152551-0 | Makita 152551-0 SPINDLE COMPLETE FOR |
| 46 | 743053-3 | Makita 743053-3 Rubber Backing Pad Hook and Loop for 9237CB |
| 47 | 182917-0 | Makita 182917-0 HANDLE SET FOR 9227CB |
| 48 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
