Makita 9200Y
Makita 9200Y: exploded parts diagram, 1 sheet, 12 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 9200Y: 12 positions on 1 sheet

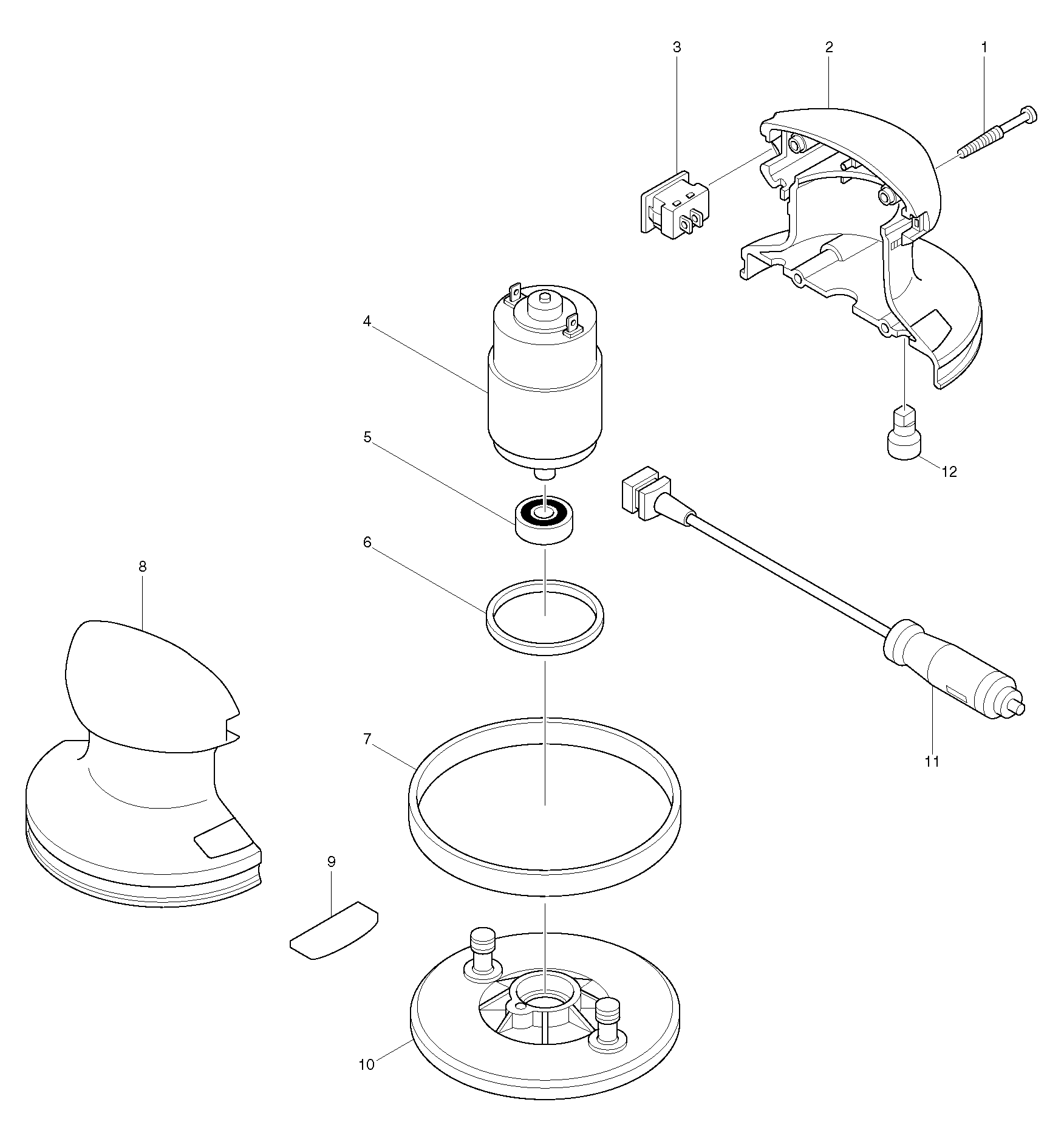

Sheet 1: Makita 9200Y parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265932-0 | Makita 265932-0 TAPPING SCREW 4X35 |
| 2 | 182284-3 | Makita 182284-3 HOUSING SET |
| 3 | 651507-5 | Makita 651507-5 SWITCH VLA01B01 |
| 4 | 629604-5 | Makita 629604-5 DC MOTOR 12V |
| 5 | 211053-6 | Makita 211053-6 BALL BEARING 609LB |
| 6 | 422019-3 | Makita 422019-3 CUSHION RING |
| 7 | 421365-1 | Makita 421365-1 BUMPER |
| 8 | 182284-3 | Makita 182284-3 HOUSING SET |
| 9 | 856607-8 | Makita 856607-8 NAME PLATE 9200Y |
| 10 | 152369-9 | Makita 152369-9 PAD COMPLETE |
| 11 | 667951-6 | Makita 667951-6 POWER SUPPLY CORD 18-2-4 |
| 12 | 421363-5 | Makita 421363-5 FOOT (A) |
