Makita 910
Makita 910: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 910: 29 positions on 1 sheet

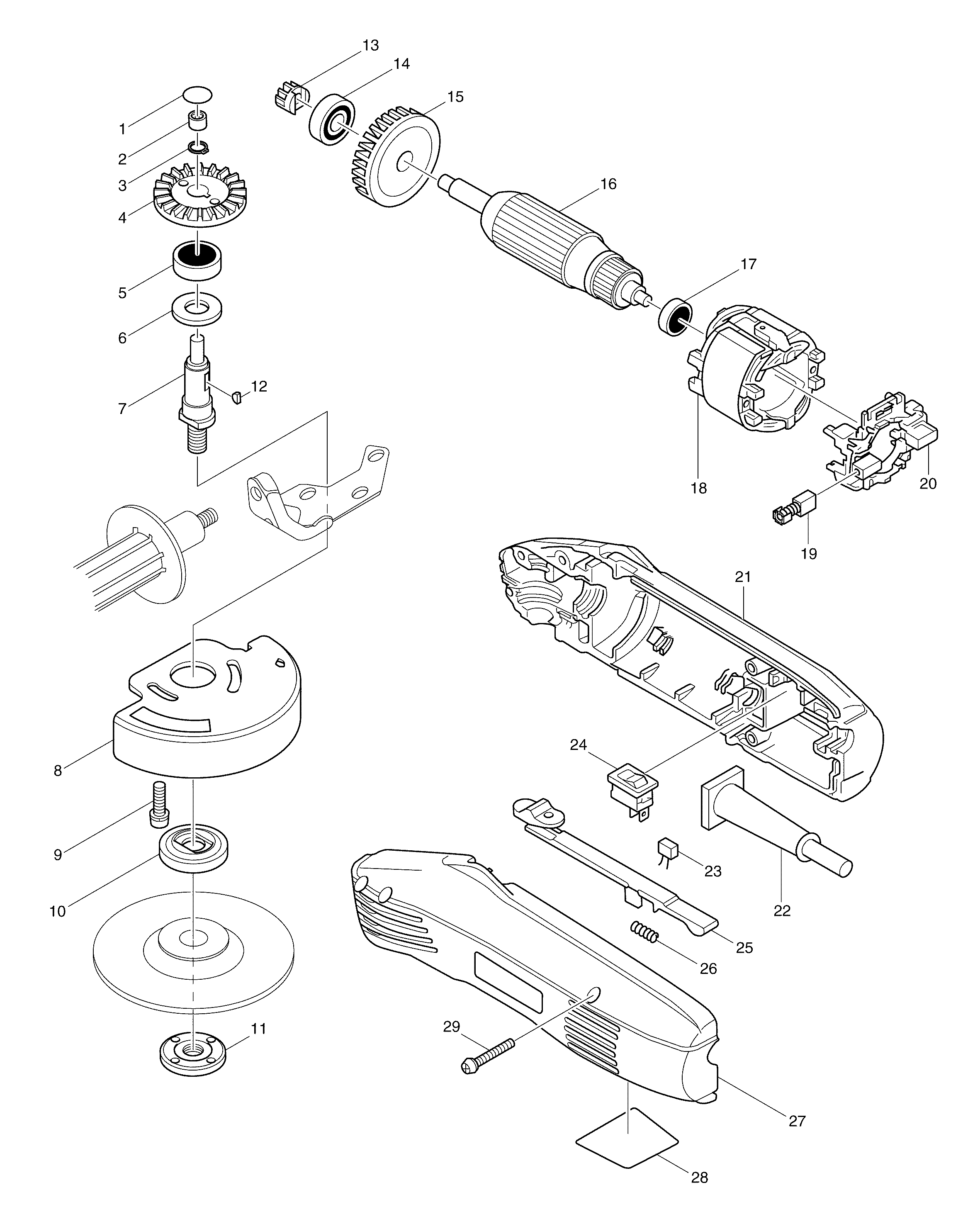

Sheet 1: Makita 910 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 213114-8 | Makita 213114-8 O RING 11 |
| 2 | 212005-0 | Makita 212005-0 Needle Bearing 810, HR2412 |
| 3 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 4 | 221375-6 | Makita 221375-6 SPIRAL BEVEL GEAR 36 |
| 5 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 6 | 253055-6 | |
| 7 | 322439-0 | |
| 8 | 343745-0 | |
| 9 | 911234-9 | Makita 911234-9 PAN HEAD SCREW M5X20 |
| 10 | 224298-7 | |
| 11 | 224543-0 | Makita 224543-0 LOCK NUT M14 ANGLE GRINGERS 180-230MM |
| 12 | 254002-0 | Makita 254002-0 WOOD RUFF KEY 3, 4100NH |
| 13 | 226708-0 | |
| 14 | 211088-7 | Makita 211088-7 BALL BEARING 6000DDW, 9526NB |
| 15 | 241849-1 | LOST Makita 241849-1 FAN 52 |
| 16 | 511968-0 | Makita 511968-0 ARMATURE ASS'Y 220V |
| 17 | 211026-9 | Makita 211026-9 BALL BEARING 627LLB |
| 18 | 633188-7 | |
| 19 | 191962-4 | Old code CB-419 = CB-407 |
| 20 | 632098-5 | Makita 632098-5 TERMINAL BASE COMPLETE |
| 21 | 182781-9 | Makita 182781-9 HOUSING SET |
| 22 | 665383-1 | Makita 665383-1 POWER S.CORD CEE, 4329 |
| 23 | 645111-0 | Makita 645111-0 NOISE SUPPRESSOR |
| 24 | 651505-9 | |
| 25 | 414557-9 | Makita 414557-9 SWITCH LEVER |
| 26 | 231496-6 | |
| 27 | 182781-9 | Makita 182781-9 HOUSING SET |
| 28 | 856626-4 | Makita 856626-4 NAME PLATE 910 |
| 29 | 911158-9 | Makita 911158-9 PAN HEAD SCREW M4*30, MT960 |
