Makita 9069S
Makita 9069S: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 9069S: 43 positions on 1 sheet

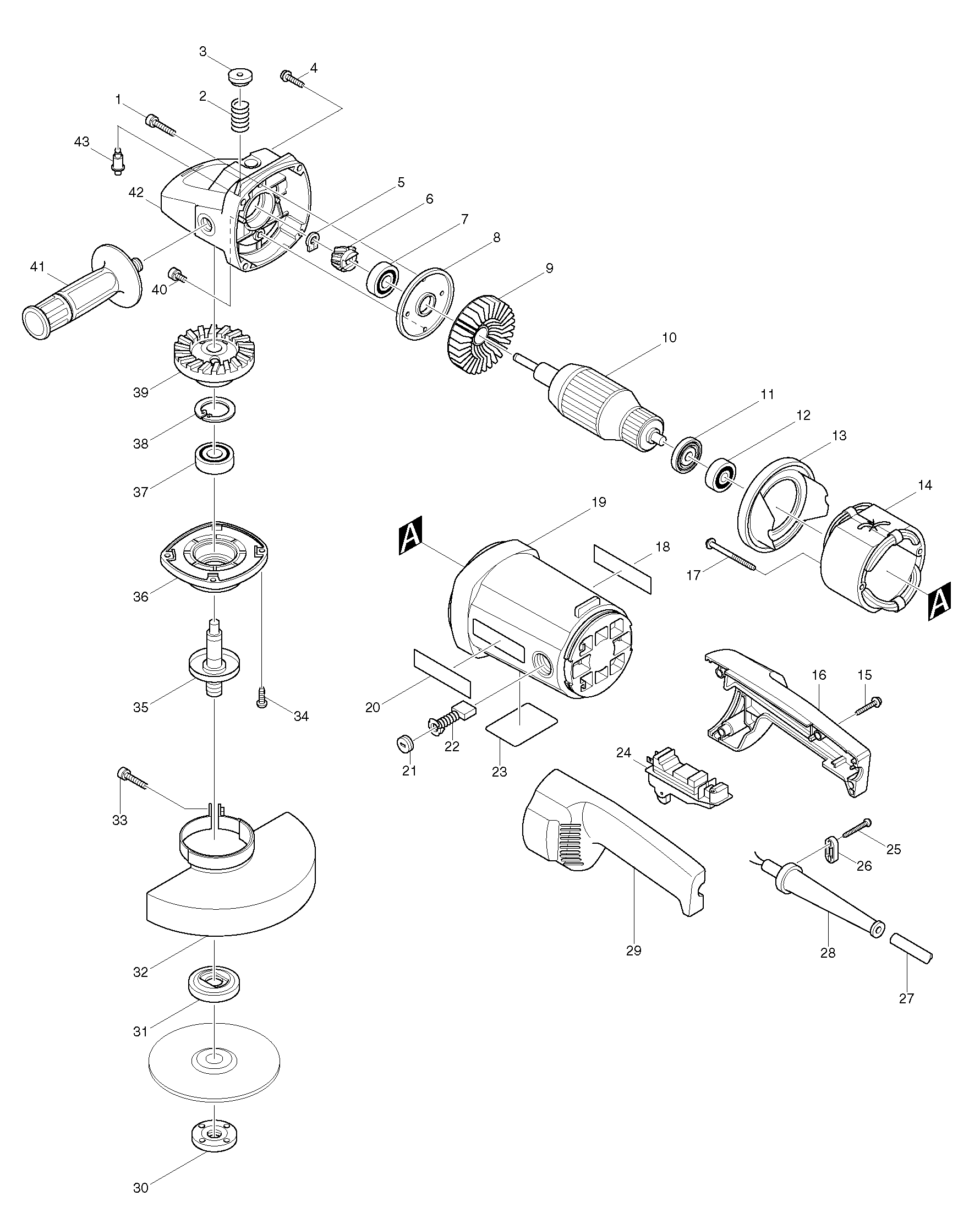

Sheet 1: Makita 9069S parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265976-0 | Makita 265976-0 HEX.SOCKET HEAD BOLT M5X10, 9067 |
| 2 | 233089-5 | Makita 233089-5 COMPRESSION SPRING, 9067 |
| 3 | 416449-8 | Makita 416449-8 PIN CAP, 9067 |
| 4 | 266012-5 | Makita 266012-5 TAPPING SCREW 5X35, 9067 |
| 5 | 961005-4 | Makita 961005-4 Retaining Ring S-9 BGA450 BGA452 9047 9047S 9049 9049S 9057S |
| 6 | 226772-1 | Makita 226772-1 SPIRAL BEVEL GEAR 12 FOR |
| 7 | 211132-0 | Makita 211132-0 BALL BEARING 6301DDW, 9069 |
| 8 | 285688-9 | Makita 285688-9 BEARING RETAINER 57, 9069 |
| 9 | 240011-5 | Makita 240011-5 FAN 80, 9067 |
| 10 | 516773-0 | Makita 516773-0 Armature Assembly 220V-240V for 6069 |
| 11 | 681630-2 | Makita 681630-2 INSULATION WASHER, GA9020 |
| 12 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 13 | 416472-3 | Makita 416472-3 BAFFLE PLATE, 9067 |
| 14 | 526074-8 | Makita 526074-8 FIELD ASSY 230-240V, 9069 |
| 15 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 16 | 183029-2 | Makita 183029-2 HANDLE COVER COMPLETE, 9067 |
| 17 | 266044-2 | Makita 266044-2 TAPPING SCREW PT 5X60, 5806B |
| 18 | 819001-5 | |
| 19 | 150969-9 | Makita 150969-9 MOTOR HOUSING COMPLETE 9069, 9069 |
| 20 | 819001-5 | |
| 21 | 643700-5 | Makita 643700-5 BRUSH HOLDER CAP *, 2414NB |
| 22 | 191957-7 | Makita 191957-7 Carbon Brushes CB-204 for 9049 9069 GA7040 GA7050 GA9010 |
| 23 | 859842-7 | Makita 859842-7 NAME PLATE 9069S |
| 24 | 651147-9 | Makita 651147-9 SWITCH 1362.0102 |
| 25 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 26 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 27 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 28 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 29 | 183029-2 | Makita 183029-2 HANDLE COVER COMPLETE, 9067 |
| 30 | 224543-0 | Makita 224543-0 LOCK NUT M14 ANGLE GRINGERS 180-230MM |
| 31 | 122444-5 | |
| 32 | 165216-5 | Makita 165216-5 Wheel Cover 230mm for 9059SF 9069SF |
| 33 | 265050-4 | Makita 265050-4 PAN HEAD SCREW M8X25 |
| 34 | 266027-2 | Makita 266027-2 TAPPING SCREW CT5X16 |
| 35 | 152606-1 | Makita 152606-1 SPINDLE COMPLETE, 9069 |
| 36 | 317007-2 | Makita 317007-2 BEARING BOX, 9069 |
| 37 | 211278-2 | Makita 211278-2 BALL BEARING 6203DDW, 9069 |
| 38 | 962157-4 | Makita 962157-4 RETAINING RING R-40 |
| 39 | 226771-3 | Makita 226771-3 SPIRAL BEVEL GEAR 50 FOR |
| 40 | 265976-0 | Makita 265976-0 HEX.SOCKET HEAD BOLT M5X10, 9067 |
| 41 | 152539-0 | Makita 152539-0 Grip 36 Complete, 9067 |
| 42 | 150968-1 | Makita 150968-1 GEAR HOUSING COMPLETE |
| 43 | 256452-5 | Makita 256452-5 SHOULDER PIN 8, 9067 |
