All parts of Makita 9059: 49 positions on 1 sheet

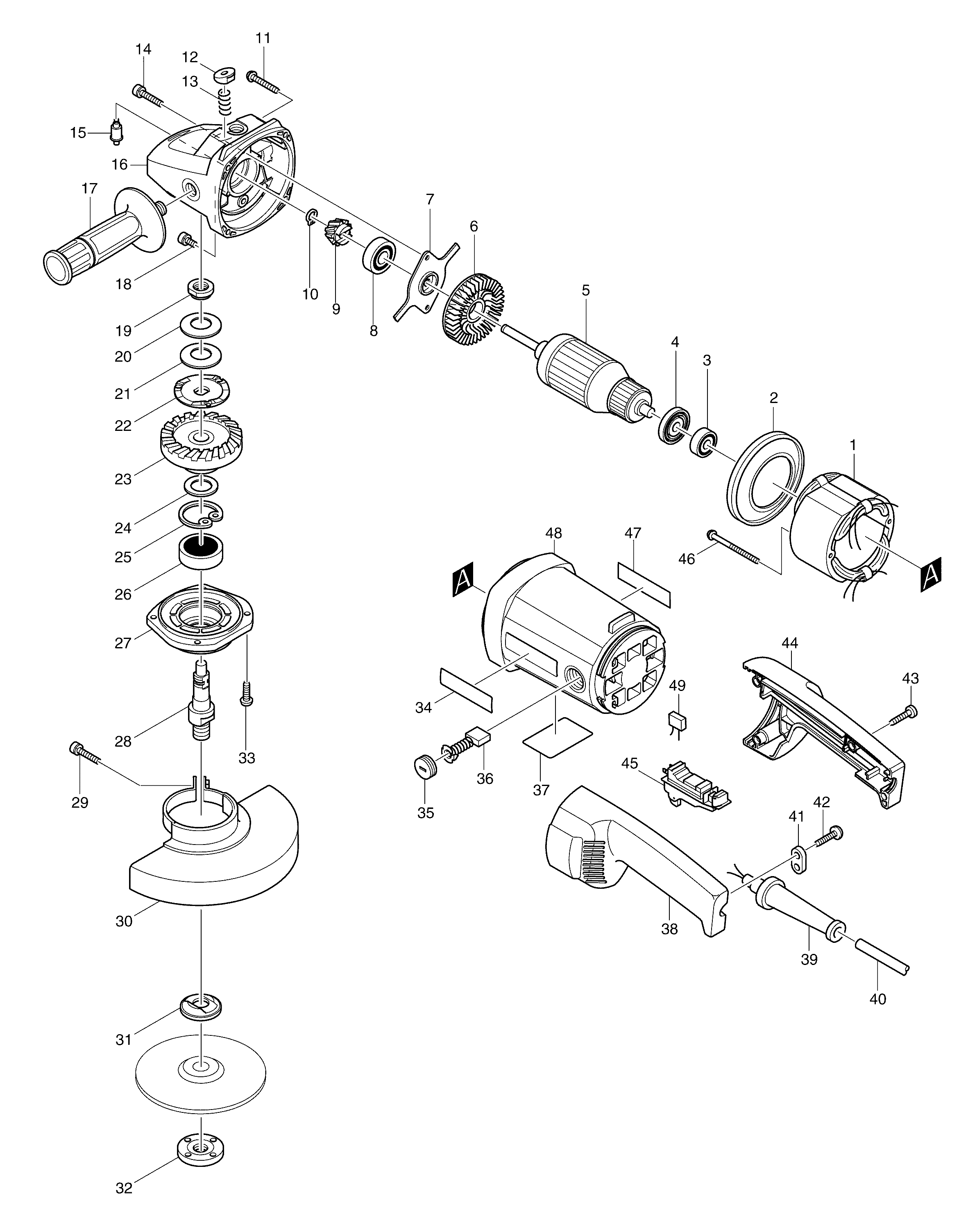

Sheet 1: Makita 9059 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 526053-6 | Makita 526053-6 FIELD ASSY 220-240V, 9059 |
| 2 | 416131-9 | Makita 416131-9 BAFFLE PLATE |
| 3 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 4 | 681630-2 | Makita 681630-2 INSULATION WASHER, GA9020 |
| 5 | 516713-8 | Makita 516713-8 ARMATURE ASSY |
| 6 | 241908-1 | Makita 241908-1 FAN 80 |
| 7 | 285832-8 | Makita 285832-8 BEARING RETAINER 60 9047S F |
| 8 | 211132-0 | Makita 211132-0 BALL BEARING 6301DDW, 9069 |
| 9 | 226740-4 | Makita 226740-4 SPIRAL BEVEL GEAR 12 |
| 10 | 961005-4 | Makita 961005-4 Retaining Ring S-9 BGA450 BGA452 9047 9047S 9049 9049S 9057S |
| 11 | 266152-9 | |
| 12 | 416132-7 | Makita 416132-7 PIN CAP, 9049 |
| 13 | 233031-6 | Makita 233031-6 COMPRESSION SPRING 12, 9049 |
| 14 | 266129-4 | Makita 266129-4 HEX. SOCKET HEAD BOLT M5X |
| 15 | 256445-2 | Makita 256445-2 SHOULDER PIN 6, 9049 |
| 16 | 159907-8 | Makita 159907-8 GEAR HOUSING COMPLETE |
| 17 | 152539-0 | Makita 152539-0 Grip 36 Complete, 9067 |
| 18 | 265976-0 | Makita 265976-0 HEX.SOCKET HEAD BOLT M5X10, 9067 |
| 19 | 252425-6 | Makita 252425-6 NUT M15-23 |
| 20 | 232163-6 | Makita 232163-6 BELLEVILLE SPRING 20, 9049 |
| 21 | 232163-6 | Makita 232163-6 BELLEVILLE SPRING 20, 9049 |
| 22 | 267725-1 | Makita 267725-1 LOCK WASHER |
| 23 | 226739-9 | Makita 226739-9 SPIRAL BEVEL GEAR 53 |
| 24 | 267167-9 | Makita 267167-9 FLAT WASHER 5, 9049 |
| 25 | 962157-4 | Makita 962157-4 RETAINING RING R-40 |
| 26 | 211278-2 | Makita 211278-2 BALL BEARING 6203DDW, 9069 |
| 27 | 316855-6 | Makita 316855-6 BEARING BOX, 9049 |
| 28 | 322902-3 | Makita 322902-3 SPINDLE |
| 29 | 265050-4 | Makita 265050-4 PAN HEAD SCREW M8X25 |
| 30 | 165000-8 | |
| 31 | 122444-5 | |
| 32 | 224543-0 | Makita 224543-0 LOCK NUT M14 ANGLE GRINGERS 180-230MM |
| 33 | 266027-2 | Makita 266027-2 TAPPING SCREW CT5X16 |
| 34 | 819064-1 | Makita 819064-1 MAKITA LOGO LABEL, LS1040 |
| 35 | 643700-5 | Makita 643700-5 BRUSH HOLDER CAP *, 2414NB |
| 36 | 191957-7 | Makita 191957-7 Carbon Brushes CB-204 for 9049 9069 GA7040 GA7050 GA9010 |
| 37 | 858638-3 | |
| 38 | 182842-5 | Makita 182842-5 HANDLE SET 9049 |
| 39 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 40 | 665630-0 | |
| 41 | 687053-2 | Makita 687053-2 CORD CLAMP, 9523NB |
| 42 | 266121-0 | Makita 266121-0 TAPPING SCREW FLANGE PF 4 X18 |
| 43 | 266119-7 | Makita 266119-7 TAPPING SCREW FLANGE PF 4 X25 |
| 44 | 182842-5 | Makita 182842-5 HANDLE SET 9049 |
| 45 | 651146-1 | Makita 651146-1 SWITCH 1267.5102 |
| 46 | 266153-7 | |
| 47 | 819064-1 | Makita 819064-1 MAKITA LOGO LABEL, LS1040 |
| 48 | 159952-3 | Makita 159952-3 MOTOR HOUSING COMPLETE |
| 49 | 645216-6 | Makita 645216-6 NOISE SUPPRESSOR |
