Makita 9046
Makita 9046: exploded parts diagram, 1 sheet, 71 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 9046: 71 positions on 1 sheet

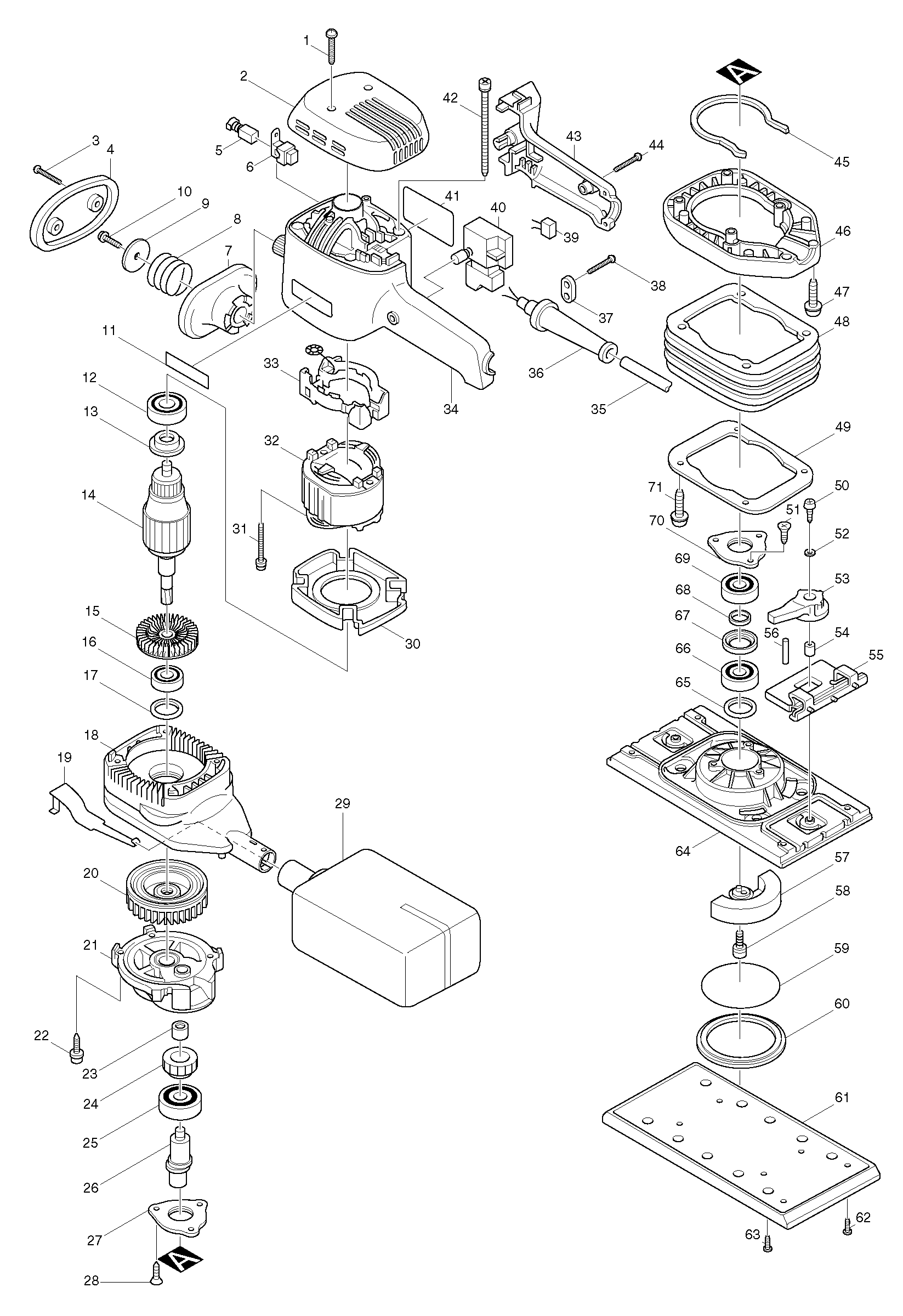

Sheet 1: Makita 9046 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 2 | 415709-5 | Makita 415709-5 TOP COVER |
| 3 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 4 | 415723-1 | Makita 415723-1 GRIP COVER |
| 5 | 191962-4 | Old code CB-419 = CB-407 |
| 6 | 643923-5 | Makita 643923-5 BRUSH HOLDER 6.5-9.5, HR2410 |
| 7 | 415717-6 | Makita 415717-6 GRIP BASE |
| 8 | 231463-1 | Makita 231463-1 COMPRESSION SPRING 24 |
| 9 | 267136-0 | Makita 267136-0 FLAT WASHER 5, LS1040 |
| 10 | 266021-4 | Makita 266021-4 TAPPING SCREW PT.5X20 |
| 11 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 12 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 13 | 681625-5 | Makita 681625-5 INSULATION WASHER, 9523B |
| 14 | 516213-8 | Makita 516213-8 ARMATURE ASS'Y 220V |
| 15 | 241879-2 | Makita 241879-2 FAN 60 |
| 16 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 17 | 267127-1 | Makita 267127-1 FLAT WASHER 26, HR2010 |
| 18 | 415567-9 | Makita 415567-9 SCROLL HOUSING |
| 19 | 344230-6 | Makita 344230-6 EARTH PLATE |
| 20 | 241880-7 | Makita 241880-7 FAN 68 |
| 21 | 316621-1 | Makita 316621-1 GEAR BOX |
| 22 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 23 | 212004-2 | Makita 212004-2 NEEDLE BEARING 810 |
| 24 | 226430-9 | Makita 226430-9 HELICAL GEAR 39 |
| 25 | 211278-2 | Makita 211278-2 BALL BEARING 6203DDW, 9069 |
| 26 | 322708-9 | Makita 322708-9 CRANK SHAFT |
| 27 | 162171-2 | Makita 162171-2 BEARING RETAINER 24 |
| 28 | 266058-1 | Makita 266058-1 TAPPING SCREW CT 4X12 |
| 29 | 152456-4 | Makita 152456-4 Dust Bag for 9046 |
| 30 | 415561-1 | Makita 415561-1 BAFFLE PLATE |
| 31 | 266056-5 | Makita 266056-5 TAPPING SCREW 5X45 |
| 32 | 634223-4 | Makita 634223-4 FIELD 220V |
| 33 | 632514-7 | Makita 632514-7 SUPPORT COMPLETE |
| 34 | 415566-1 | Makita 415566-1 MOTOR HOUSING |
| 35 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 36 | 682516-3 | Makita 682516-3 CORD GUARD 9.3-85, HR2410 |
| 37 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 38 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 39 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 40 | 651263-7 | Makita 651263-7 Switch SGEL206C for 9031 9032 9046 |
| 41 | 857628-3 | Makita 857628-3 NAME PLATE 9046 |
| 42 | 266057-3 | Makita 266057-3 TAPPING SCREW?BIND?BT?5X9 |
| 43 | 415565-3 | Makita 415565-3 HANDLE COVER |
| 44 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 45 | 421496-6 | Makita 421496-6 PACKING |
| 46 | 415563-7 | Makita 415563-7 SCROLL COVER |
| 47 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 48 | 165096-9 | Makita 165096-9 RUBBER SLEEVE 9046 |
| 49 | 344143-1 | Makita 344143-1 PLATE |
| 50 | 266042-6 | Makita 266042-6 TAPPING SCREW BIND.CT 4*20, LS1016L |
| 51 | 266058-1 | Makita 266058-1 TAPPING SCREW CT 4X12 |
| 52 | 253874-0 | Makita 253874-0 Flat Washer 4 for UC3020A LS1016 |
| 53 | 415559-8 | Makita 415559-8 CLAMP LEVER |
| 54 | 257659-6 | Makita 257659-6 SLEEVE 4 |
| 55 | 152457-2 | Makita 152457-2 PAPER CLAMP COMPLETE |
| 56 | 256104-8 | Makita 256104-8 PIN 3 |
| 57 | 316619-8 | Makita 316619-8 BALANCER |
| 58 | 266071-9 | Makita 266071-9 HEX. SOCKET HEAD BOLT M5X |
| 59 | 213755-0 | Makita 213755-0 O RING 75 HM1400 |
| 60 | 344142-3 | Makita 344142-3 UNDER COVER 9046 |
| 61 | 162172-0 | Makita 162172-0 Sander Base Pad for 9046 9046X |
| 62 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 63 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 64 | 316620-3 | Makita 316620-3 BASE |
| 65 | 267127-1 | Makita 267127-1 FLAT WASHER 26, HR2010 |
| 66 | 211227-9 | Makita 211227-9 BALL BEARING 6002DDW |
| 67 | 257189-7 | Makita 257189-7 RING 19 |
| 68 | 257188-9 | Makita 257188-9 RING 15 |
| 69 | 211227-9 | Makita 211227-9 BALL BEARING 6002DDW |
| 70 | 162171-2 | Makita 162171-2 BEARING RETAINER 24 |
| 71 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
