Makita 9035N
Makita 9035N: exploded parts diagram, 1 sheet, 33 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 9035N: 33 positions on 1 sheet

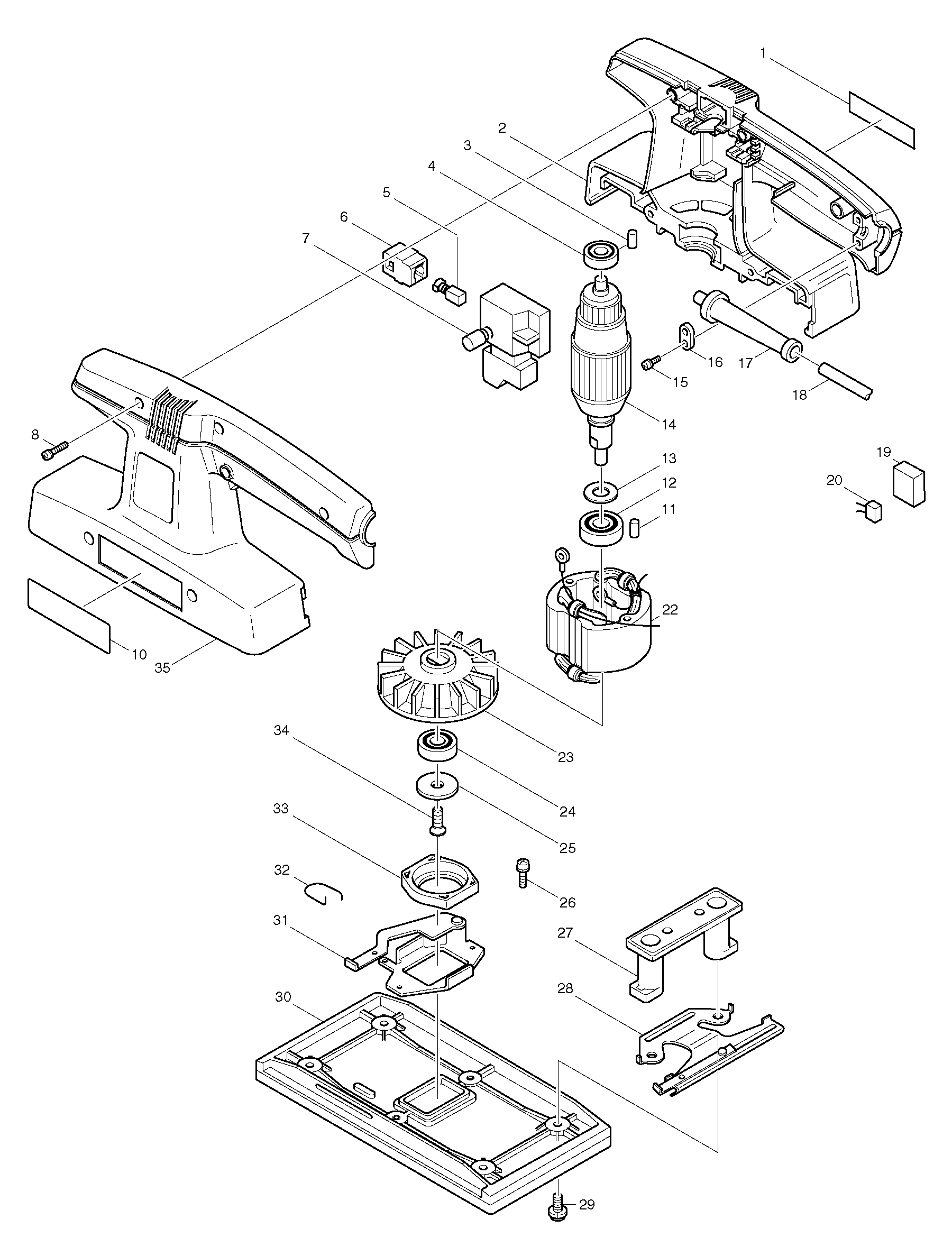

Sheet 1: Makita 9035N parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 819001-5 | |
| 2 | 181758-1 | Makita 181758-1 HOUSING SET |
| 3 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 4 | 211026-9 | Makita 211026-9 BALL BEARING 627LLB |
| 5 | 191627-8 | Makita 191627-8 Carbon Brushes CB-64 for JR3000V BO3710 BO4552 |
| 6 | 643552-4 | Makita 643552-4 BRUSH HOLDER, 6409 |
| 7 | 651235-2 | Makita 651235-2 Switch 2106 9900 9924 9030 JN3200 JR3000 8419 4302 |
| 8 | 911158-9 | Makita 911158-9 PAN HEAD SCREW M4*30, MT960 |
| 10 | 855170-8 | Makita 855170-8 NAME PLATE 9035N |
| 11 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 12 | 211106-1 | Makita 211106-1 Ball Bearing 6201LLB, 9035 |
| 13 | 253069-5 | Makita 253069-5 FLAT WASHER 12 |
| 14 | 518041-7 | Makita 518041-7 ARMATURE ASS Y 220V |
| 15 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 16 | 687001-1 | Makita 687001-1 STRAIN RELIEF B04510 |
| 17 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 18 | 666053-5 | Makita 666053-5 POWER S.CORD HD-21 CORD, 4329 |
| 19 | ||
| 20 | 645209-3 | Makita 645209-3 NOISE SUPPRESSOR |
| 22 | 521299-9 | Makita 521299-9 FIELD ASS Y 220V |
| 23 | 241645-7 | Makita 241645-7 FAN 73 |
| 24 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 25 | 267001-3 | Makita 267001-3 FLAT WASHER 7, BO3700 |
| 26 | 911106-8 | Makita 911106-8 PAN HEAD SCREW M4X8, 5007NB |
| 27 | 421273-6 | Makita 421273-6 FOOT |
| 28 | 163107-4 | Makita 163107-4 CLAMPER |
| 29 | 265005-9 | Makita 265005-9 PAN HEAD SCREW M4X12 |
| 30 | 150344-9 | Makita 150344-9 BASE COMPLETE |
| 31 | 163223-2 | Makita 163223-2 GUIDE PLATE |
| 32 | 231572-6 | Makita 231572-6 TORSION SPRING |
| 33 | 410436-9 | Makita 410436-9 BEARING BOX |
| 34 | 251372-8 | Makita 251372-8 COUNTERSUNK HEAD SCREW M5 X12 |
| 35 | 181758-1 | Makita 181758-1 HOUSING SET |
