All parts of Makita 9032: 54 positions on 1 sheet

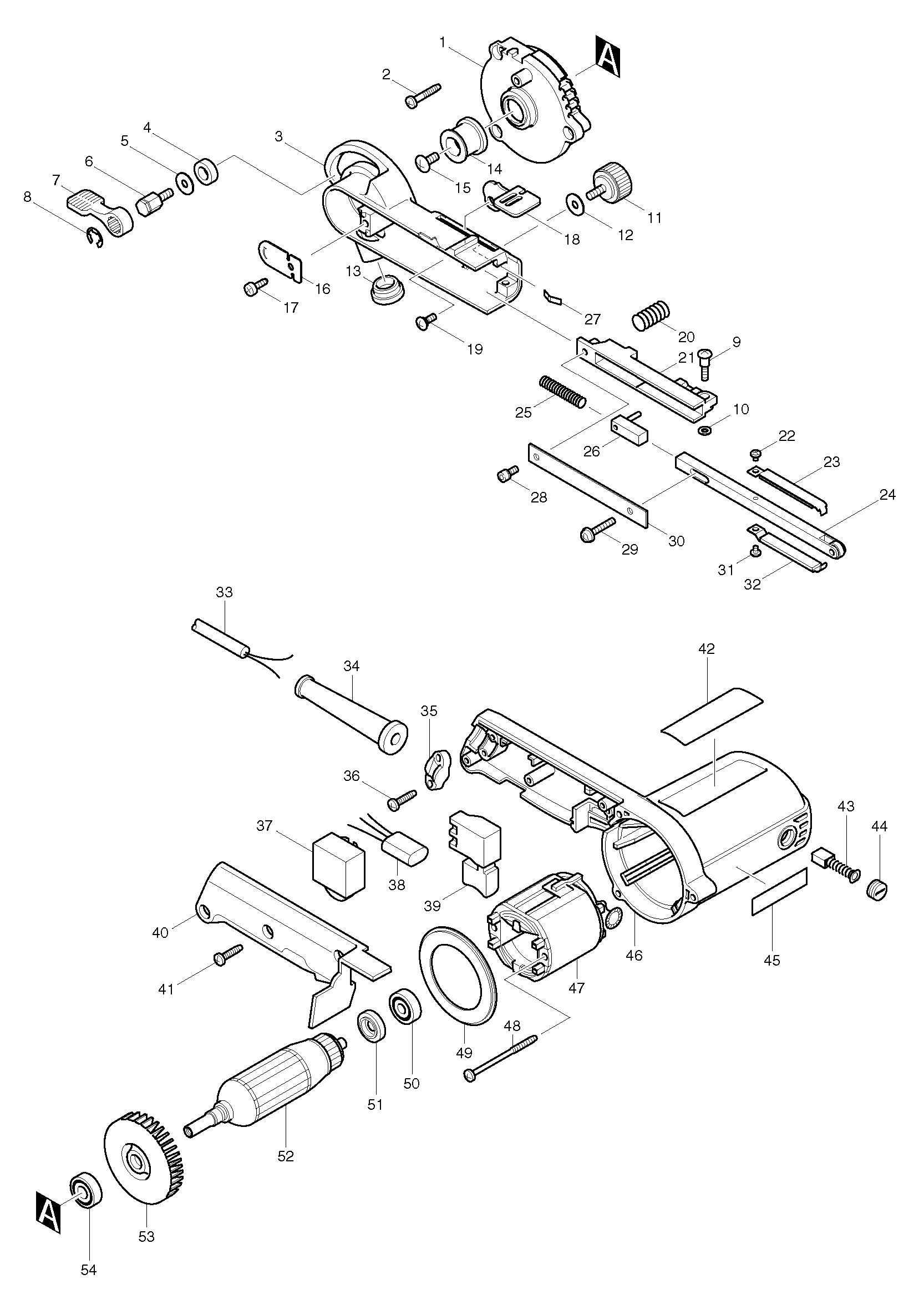

Sheet 1: Makita 9032 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 317523-4 | Makita 317523-4 BRACKET 9032 |
| 2 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 3 | 153308-2 | Makita 153308-2 PULLEY COVER COMPLETE |
| 4 | 257249-5 | Makita 257249-5 RING 9 9032 |
| 5 | 253807-5 | Makita 253807-5 FLAT WASHER 5, LS0714 |
| 6 | 265494-8 | Makita 265494-8 HEX.BOLT M5X13 9032 |
| 7 | 272229-0 | Makita 272229-0 LEVER 40, 3901 |
| 8 | 961014-3 | Makita 961014-3 STOP RING E-8, SS610D |
| 9 | 265090-2 | Makita 265090-2 PAN HEAD SCREW M4X20 |
| 10 | 941052-1 | Makita 941052-1 FLAT WASHER 4 |
| 11 | 265751-4 | Makita 265751-4 THUMB SCREW M5X13 9032 |
| 12 | 253807-5 | Makita 253807-5 FLAT WASHER 5, LS0714 |
| 13 | 421198-4 | Makita 421198-4 CAP FOR |
| 14 | 317522-6 | Makita 317522-6 DRIVING ROLLER 9032 |
| 15 | 265092-8 | Makita 265092-8 TRUSS HEAD SCREW M5X12 |
| 16 | 345196-3 | Makita 345196-3 SAFETY COVER 9032 |
| 17 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 18 | 345197-1 | Makita 345197-1 CAM LEVER 9032 |
| 19 | 265028-7 | Makita 265028-7 + PAN HEAD SCREW M4X11 |
| 20 | 233333-0 | Makita 233333-0 COMPRESSION SPRING 9032 |
| 21 | 317525-0 | Makita 317525-0 ARM HOLDER 9032 |
| 22 | 265040-7 | Makita 265040-7 PAN HEAD SCREW M3X4 9032 |
| 23 | 153314-7 | Makita 153314-7 SHOE 9 COMP. 9032 |
| 24 | 153310-5 | |
| 25 | 233332-2 | Makita 233332-2 COMPRESSION SPRING 6 |
| 26 | 153312-1 | Makita 153312-1 ARM TENSIONER COMP.9032 |
| 27 | 232185-6 | Makita 232185-6 LEAF SPRING, KP0800 |
| 28 | 922111-0 | Makita 922111-0 H.S.HEAD BOLT M4*10 WITH W, EBH252L |
| 29 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 30 | 345195-5 | Makita 345195-5 ARM COVER 9032 |
| 31 | 265040-7 | Makita 265040-7 PAN HEAD SCREW M3X4 9032 |
| 32 | 153314-7 | Makita 153314-7 SHOE 9 COMP. 9032 |
| 33 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 34 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 35 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 36 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 37 | 631185-7 | Makita 631185-7 Controller 240V for 9031 9032 |
| 38 | 645209-3 | Makita 645209-3 NOISE SUPPRESSOR |
| 39 | 651263-7 | Makita 651263-7 Switch SGEL206C for 9031 9032 9046 |
| 40 | 415635-8 | Makita 415635-8 HANDLE COVER 9031 |
| 41 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 42 | 853483-1 | Makita 853483-1 NAME PLATE 9032 |
| 43 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
| 44 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 45 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 46 | 159747-4 | Makita 159747-4 MOTOR HOUSING COMPLETE |
| 47 | 599347-2 | Makita 599347-2 FIELD ASSY 230V 9032 |
| 48 | 266052-3 | Makita 266052-3 TAPPING SCREW, UB1101 |
| 49 | 415634-0 | Makita 415634-0 BAFFLE PLATE |
| 50 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 51 | 681614-0 | Makita 681614-0 INSULATION WASHER |
| 52 | 517389-4 | Makita 517389-4 ARMATURE ASSY 230V 9032 |
| 53 | 241884-9 | Makita 241884-9 FAN 60 |
| 54 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
