Makita 9031
Makita 9031: exploded parts diagram, 1 sheet, 53 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 9031: 53 positions on 1 sheet

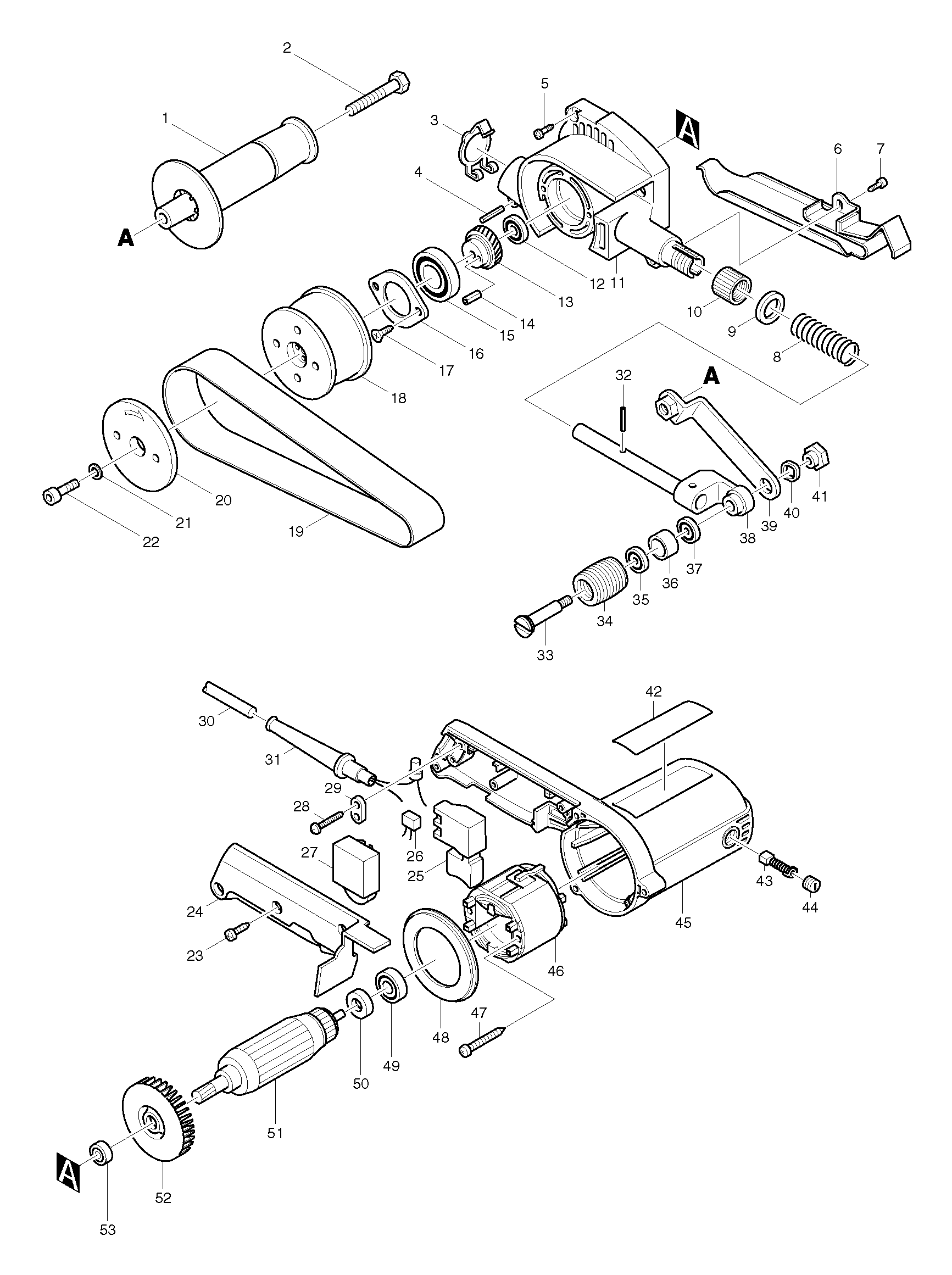

Sheet 1: Makita 9031 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 152490-4 | |
| 2 | ||
| 3 | 286241-4 | Makita 286241-4 CAP 30 |
| 4 | 951116-3 | Makita 951116-3 SPRING PIN 4-20 |
| 5 | 265924-9 | Makita 265924-9 TAPPING SCREW 4X25 |
| 6 | 342152-4 | Makita 342152-4 FLAT SHOE |
| 7 | 266035-3 | Makita 266035-3 TAPPING SCREW BIND CT 5X1 |
| 8 | 231056-4 | Makita 231056-4 COMPRESSION SPRING 13 |
| 9 | 253052-2 | Makita 253052-2 FLAT WASHER 12, TD0900 |
| 10 | 252605-4 | Makita 252605-4 WING NUT M16 |
| 11 | 159748-2 | Makita 159748-2 GEAR HOUSING COMPLETE |
| 12 | 211023-5 | Makita 211023-5 BALL BEARING 607LB |
| 13 | 226435-9 | Makita 226435-9 HELICAL GEAR 35 |
| 14 | 258009-8 | Makita 258009-8 SPRING PIN 3.5-12 |
| 15 | 211331-4 | Makita 211331-4 BALL BEARING 6904DDW |
| 16 | 285830-2 | Makita 285830-2 BEARING RETAINER 44 |
| 17 | 266058-1 | Makita 266058-1 TAPPING SCREW CT 4X12 |
| 18 | 222129-4 | Makita 222129-4 33-64 Pulley |
| 19 | 794115-0 | Makita 794115-0 ABRASIVE BELT 30X533 AA10 |
| 20 | 415624-3 | Makita 415624-3 PULLEY LINER |
| 21 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 22 | 266067-0 | Makita 266067-0 HEX. SOCKET HEAD BOLT M5X |
| 23 | 265941-9 | Makita 265941-9 TAPPING SCREW 4X18 |
| 24 | 415635-8 | Makita 415635-8 HANDLE COVER 9031 |
| 25 | 651263-7 | Makita 651263-7 Switch SGEL206C for 9031 9032 9046 |
| 26 | 645209-3 | Makita 645209-3 NOISE SUPPRESSOR |
| 27 | 631185-7 | Makita 631185-7 Controller 240V for 9031 9032 |
| 28 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 29 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 30 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 31 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 32 | 951116-3 | Makita 951116-3 SPRING PIN 4-20 |
| 33 | 322746-1 | Makita 322746-1 TOP PULLEY SHAFT |
| 34 | 222130-9 | Makita 222130-9 Pulley 30-25 |
| 35 | 210015-1 | Makita 210015-1 BALL BEARING 688DDW |
| 36 | 331450-1 | Makita 331450-1 SLEEVE 12 |
| 37 | 210015-1 | Makita 210015-1 BALL BEARING 688DDW |
| 38 | 154417-0 | Makita 154417-0 ANGLE STAY COMPLETE |
| 39 | 165110-1 | Makita 165110-1 ARM COMPLETE |
| 40 | 253904-7 | Makita 253904-7 WAVE WASHER 12 |
| 41 | 252138-9 | Makita 252138-9 HEX. NUT M6-17 |
| 42 | 857678-8 | Makita 857678-8 NAME PLATE 9031 |
| 43 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
| 44 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 45 | 159747-4 | Makita 159747-4 MOTOR HOUSING COMPLETE |
| 46 | 599328-6 | Makita 599328-6 FIELD ASS'Y 220V |
| 47 | 265988-3 | Makita 265988-3 TAPPING SCREW BIND BT 4X6 |
| 48 | 415634-0 | Makita 415634-0 BAFFLE PLATE |
| 49 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 50 | 681614-0 | Makita 681614-0 INSULATION WASHER |
| 51 | 517148-6 | Makita 517148-6 ARMATURE ASS'Y 220V |
| 52 | 241884-9 | Makita 241884-9 FAN 60 |
| 53 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
