Makita 9016B
Makita 9016B: exploded parts diagram, 1 sheet, 40 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 9016B: 40 positions on 1 sheet

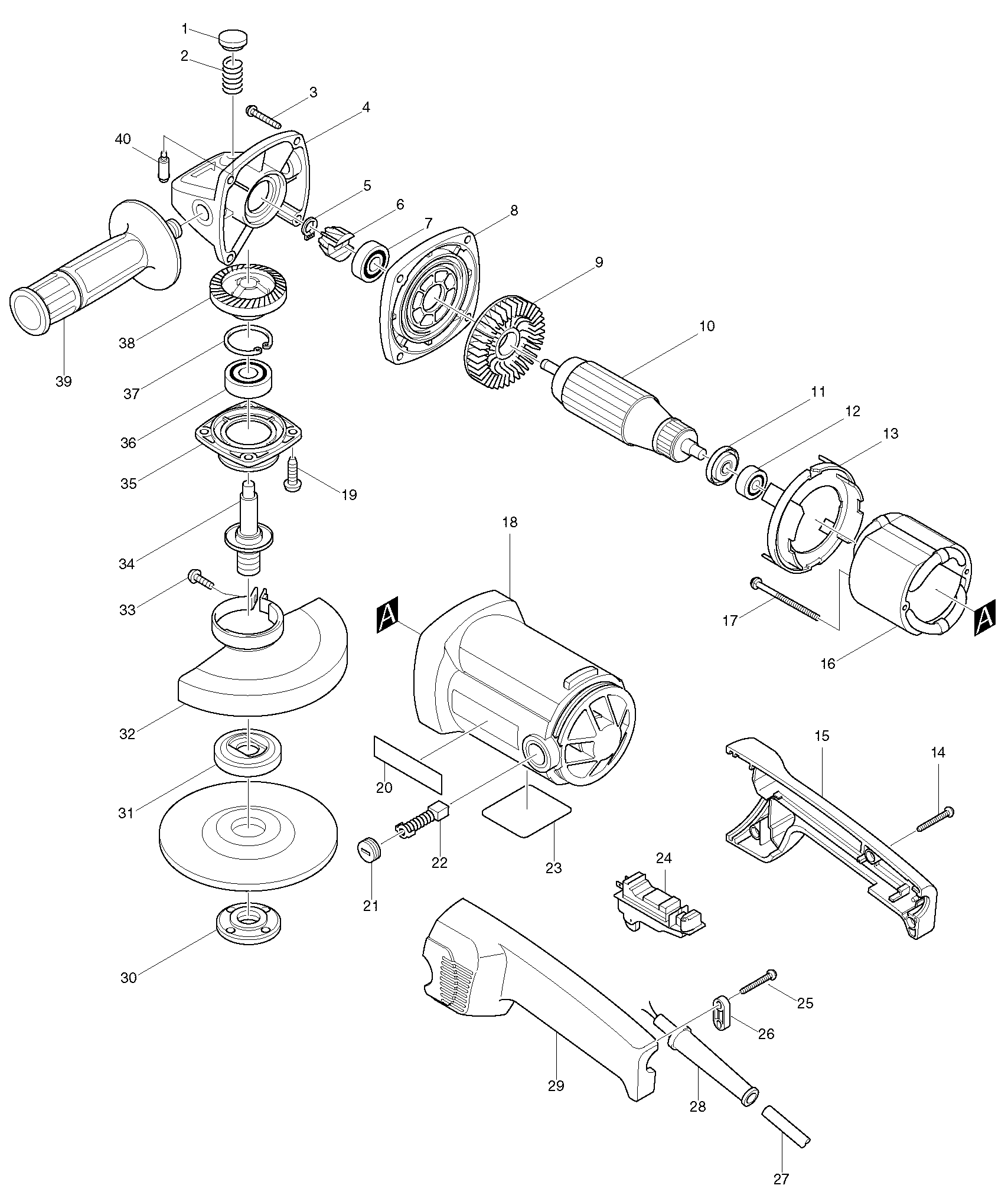

Sheet 1: Makita 9016B parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 416449-8 | Makita 416449-8 PIN CAP, 9067 |
| 2 | 233089-5 | Makita 233089-5 COMPRESSION SPRING, 9067 |
| 3 | 266173-1 | Makita 266173-1 TAPPING SCREW 5X30 |
| 4 | 159995-5 | Makita 159995-5 GEAR HOUSING COMPLETE |
| 5 | 961003-8 | Makita 961003-8 RETAINING RING, HR2450 |
| 6 | 226756-9 | Makita 226756-9 SPIRAL BEVEL GEAR 11 |
| 7 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 8 | 316992-6 | Makita 316992-6 GEAR HOUSING COVER |
| 9 | 240010-7 | Makita 240010-7 FAN 70 |
| 10 | 516334-6 | Makita 516334-6 ARMATURE ASS'Y 230-240V |
| 11 | 681644-1 | Makita 681644-1 RESIN WASHER, MT110 |
| 12 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 13 | 416448-0 | Makita 416448-0 BAFFLE PLATE |
| 14 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 15 | 182990-0 | Makita 182990-0 HANDLE SET |
| 16 | 522838-8 | Makita 522838-8 FIELD ASS'Y 220-240V |
| 17 | 266029-8 | Makita 266029-8 TAPPING SCREW PT 5X65, 5277NB |
| 18 | 159996-3 | Makita 159996-3 MOTOR HOUSING COMPLETE |
| 19 | 266027-2 | Makita 266027-2 TAPPING SCREW CT5X16 |
| 20 | 819001-5 | |
| 21 | 643750-0 | Makita 643750-0 BRUSH HOLDER CAP, 4100NH |
| 22 | 191963-2 | Makita 191963-2 Carbon Brushes CB-303 for 5703 9403 9404 9903 |
| 23 | 859285-3 | |
| 24 | 651146-1 | Makita 651146-1 SWITCH 1267.5102 |
| 25 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 26 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 27 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 28 | 682503-2 | Makita 682503-2 Cord Guard 8-90, 5806B |
| 29 | 182990-0 | Makita 182990-0 HANDLE SET |
| 30 | 224554-5 | Makita 224554-5 Outer Blade Locking Flange M14 for 9069 9554 9015 |
| 31 | 224298-7 | |
| 32 | 165213-1 | |
| 33 | 251391-4 | Makita 251391-4 PAN HEAD SCREW M5X16, 9523NB |
| 34 | 152572-2 | Makita 152572-2 SPINDLE COMPLETE |
| 35 | 316991-8 | Makita 316991-8 BEARING BOX FOR 9015B |
| 36 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 37 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 38 | 226754-3 | Makita 226754-3 SPIRAL BEVEL GEAR 35 |
| 39 | 152492-0 | Makita 152492-0 SIDEHANDLE 6013BR, 9015B |
| 40 | 256446-0 | Makita 256446-0 PIN 6 |
