Makita 9005B
Makita 9005B: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 9005B: 46 positions on 1 sheet

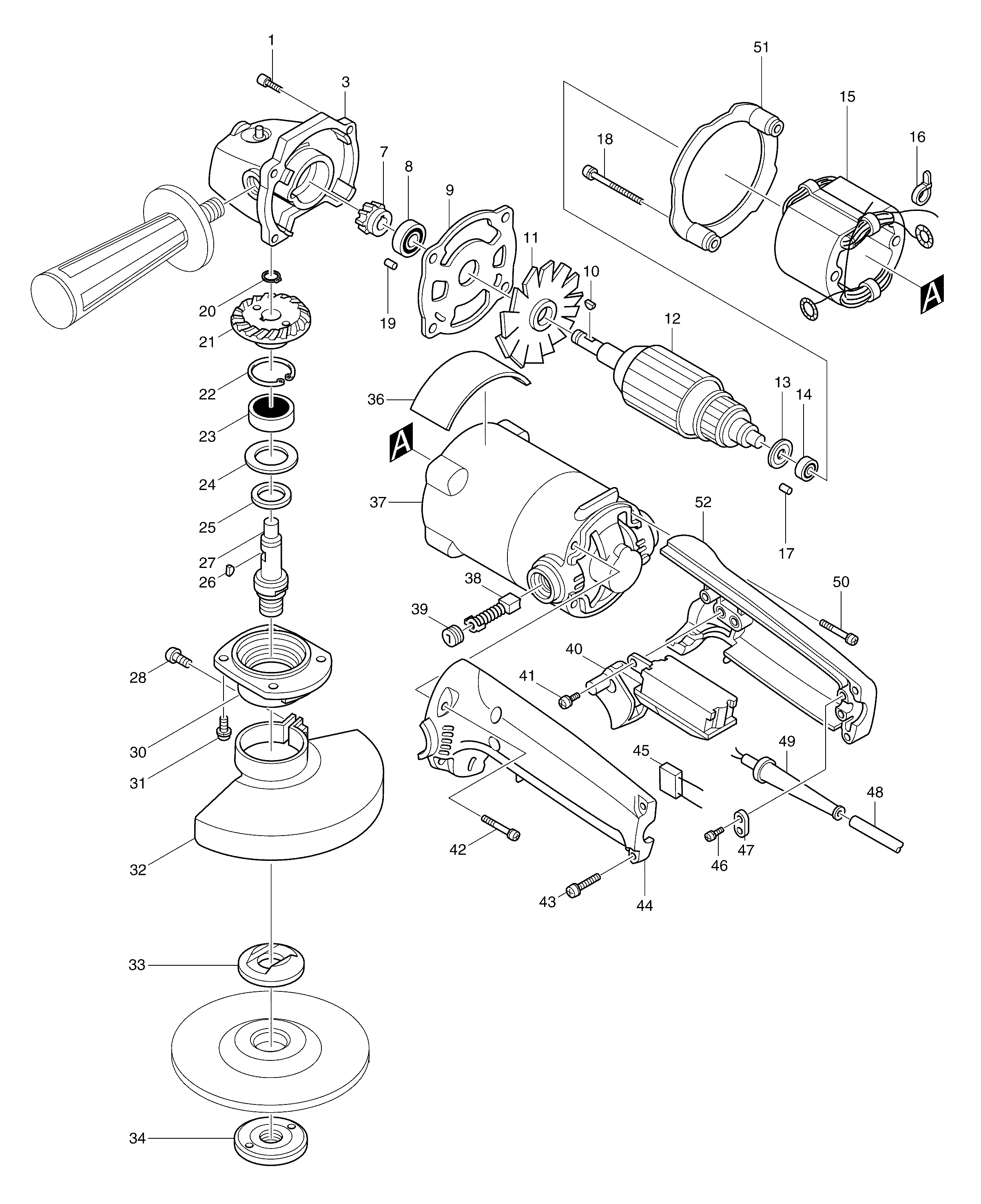

Sheet 1: Makita 9005B parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 911241-2 | Makita 911241-2 PAN HEAD SCREW M5X25 W, JR300VT |
| 3 | 156735-2 | Makita 156735-2 GEAR HOUSING |
| 7 | 181737-9 | Makita 181737-9 SPIRAL BEVEL GEAR SET |
| 8 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 9 | 341681-4 | Makita 341681-4 PLATE |
| 10 | 254002-0 | Makita 254002-0 WOOD RUFF KEY 3, 4100NH |
| 11 | 241517-6 | Makita 241517-6 FAN 70 FOR GA5000 |
| 12 | 516093-2 | Makita 516093-2 ARMATURE ASS'Y 220V |
| 13 | 681613-2 | Makita 681613-2 INSULATION WASHER |
| 14 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 15 | 522673-4 | Makita 522673-4 FIELD ASS'Y 220V |
| 16 | 687010-0 | Makita 687010-0 BAND, 5704R |
| 17 | 263014-2 | Makita 263014-2 RUBBER PIN 4, 3703 |
| 18 | 911290-9 | Makita 911290-9 PAN HEAD SCREW M5X65 |
| 19 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 20 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 21 | 181737-9 | Makita 181737-9 SPIRAL BEVEL GEAR SET |
| 22 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 23 | 211106-1 | Makita 211106-1 Ball Bearing 6201LLB, 9035 |
| 24 | 253824-5 | Makita 253824-5 FLAT WASHER 21 |
| 25 | 443051-4 | Makita 443051-4 FELT RING 20 |
| 26 | 254002-0 | Makita 254002-0 WOOD RUFF KEY 3, 4100NH |
| 27 | 321341-4 | Makita 321341-4 SPINDLE |
| 28 | 251259-4 | Makita 251259-4 + PAN HEAD SCREW M5X16 |
| 30 | 315282-4 | Makita 315282-4 BEARING BOX, 9005B |
| 31 | 911121-2 | Makita 911121-2 PAN HEAD SCREW M4*14, GA400D |
| 32 | 134440-1 | |
| 33 | 122444-5 | |
| 34 | 224543-0 | Makita 224543-0 LOCK NUT M14 ANGLE GRINGERS 180-230MM |
| 36 | 854116-1 | Makita 854116-1 NAME PLATE 9005B |
| 37 | 156734-4 | Makita 156734-4 MOTOR HOUSING |
| 38 | 181030-1 | Makita 181030-1 Carbon Brushes CB-100 for 6906 9005B 9901 PC1100 |
| 39 | 643600-9 | Makita 643600-9 Holder Cup for DA6300 |
| 40 | 651128-3 | Makita 651128-3 Switch C3D-15AS 9627 9000BL 9005B 9015DB GA7911 GA7001L |
| 41 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 42 | 911248-8 | Makita 911248-8 PAN HEAD SCREW M5X28 |
| 43 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 44 | 182418-8 | Makita 182418-8 HANDLE SET |
| 45 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 46 | 265941-9 | Makita 265941-9 TAPPING SCREW 4X18 |
| 47 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 48 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 49 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 50 | 911248-8 | Makita 911248-8 PAN HEAD SCREW M5X28 |
| 51 | 411876-4 | Makita 411876-4 BAFFLE PLATE |
| 52 | 182418-8 | Makita 182418-8 HANDLE SET |
