Makita 8419B2
Makita 8419B2: exploded parts diagram, 1 sheet, 51 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 8419B2: 51 positions on 1 sheet

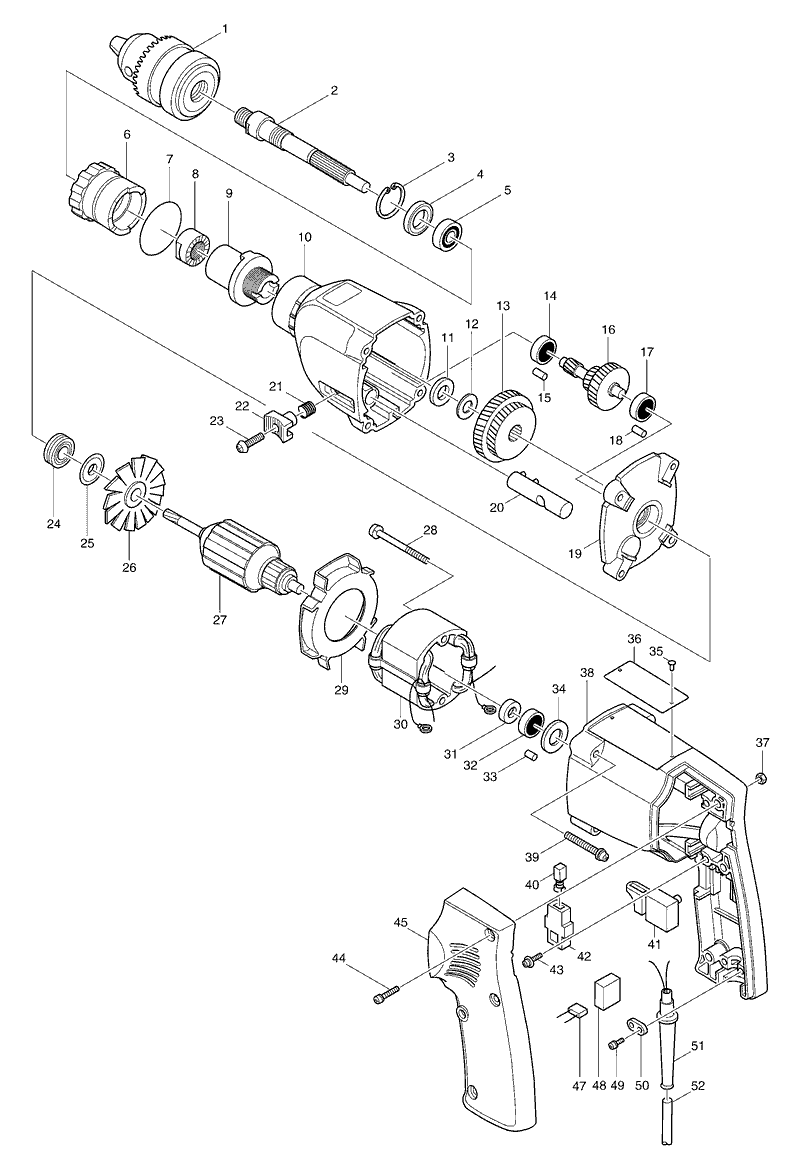

Sheet 1: Makita 8419B2 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 192877-8 | |
| 2 | 325551-5 | Makita 325551-5 SPINDLE |
| 3 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 4 | 213301-9 | Makita 213301-9 DUST SEAL 20 |
| 5 | 211201-7 | Makita 211201-7 BALL BEARING 6002LLB |
| 6 | 323679-3 | Makita 323679-3 CHANGE RING |
| 7 | 213458-6 | Makita 213458-6 O RING 34 |
| 8 | 223029-1 | Makita 223029-1 CAM (A) |
| 9 | 223030-6 | Makita 223030-6 CAM (B) |
| 10 | 156440-1 | Makita 156440-1 HAMMASPYÖRÄ KOTELO 8419B2 |
| 11 | 253798-0 | Makita 253798-0 FLAT WASHER13, HP451D |
| 12 | 961016-9 | Makita 961016-9 STOP RING E-10 JR180D |
| 13 | 226038-9 | Makita 226038-9 GEAR COMPLETE 39-49 |
| 14 | 211026-9 | Makita 211026-9 BALL BEARING 627LLB |
| 15 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 16 | 226039-7 | Makita 226039-7 GEAR COMPLETE 9-19-41 |
| 17 | 211026-9 | Makita 211026-9 BALL BEARING 627LLB |
| 18 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 19 | 156441-9 | Makita 156441-9 GEAR HOUSING COVER |
| 20 | 152135-4 | |
| 21 | 231249-3 | Makita 231249-3 COMPRESSION SPRING 5 |
| 22 | 411475-2 | Makita 411475-2 CHANGE LEVER |
| 23 | 251429-5 | |
| 24 | 211043-9 | Makita 211043-9 BALL BEARING 807LLB |
| 25 | 213002-9 | Makita 213002-9 DUST SEAL 8 |
| 26 | 241325-5 | Makita 241325-5 FAN 58 |
| 27 | 515098-9 | Makita 515098-9 ARMATURE ASS Y 220V |
| 28 | 911185-6 | Makita 911185-6 PAN HEAD SCREW M4X55 |
| 29 | 411456-6 | Makita 411456-6 BAFFLE PLATE |
| 30 | 525088-4 | Makita 525088-4 FIELD ASS Y 220V |
| 31 | 681614-0 | Makita 681614-0 INSULATION WASHER |
| 32 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 33 | 263013-4 | Makita 263013-4 RUBBER PIN 4 |
| 34 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 35 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 36 | 815090-8 | Makita 815090-8 NAME PLATE 8419B-2 |
| 37 | 931102-0 | Makita 931102-0 HEX NUT, 5900B |
| 38 | 156953-2 | Makita 156953-2 MOTOR HOUSING |
| 39 | 911268-2 | Makita 911268-2 PAN HEAD SCREW M5X45 WR, 5806B |
| 40 | 181026-2 | Makita 181026-2 Carbon Brushes CB-55 for 6701B JR300VT JR3000V |
| 41 | 651235-2 | Makita 651235-2 Switch 2106 9900 9924 9030 JN3200 JR3000 8419 4302 |
| 42 | 643551-6 | Makita 643551-6 BRUSH HOLDER 5-8 *, JR300VT |
| 43 | 911124-6 | Makita 911124-6 PAN HEAD SCREW M4X14 |
| 44 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 45 | 411455-8 | Makita 411455-8 HANDLE COVER |
| 47 | 645208-5 | |
| 48 | 685700-9 | |
| 49 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 50 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 51 | 682516-3 | Makita 682516-3 CORD GUARD 9.3-85, HR2410 |
| 52 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
