Makita 8413D
Makita 8413D: exploded parts diagram, 1 sheet, 22 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 8413D: 22 positions on 1 sheet

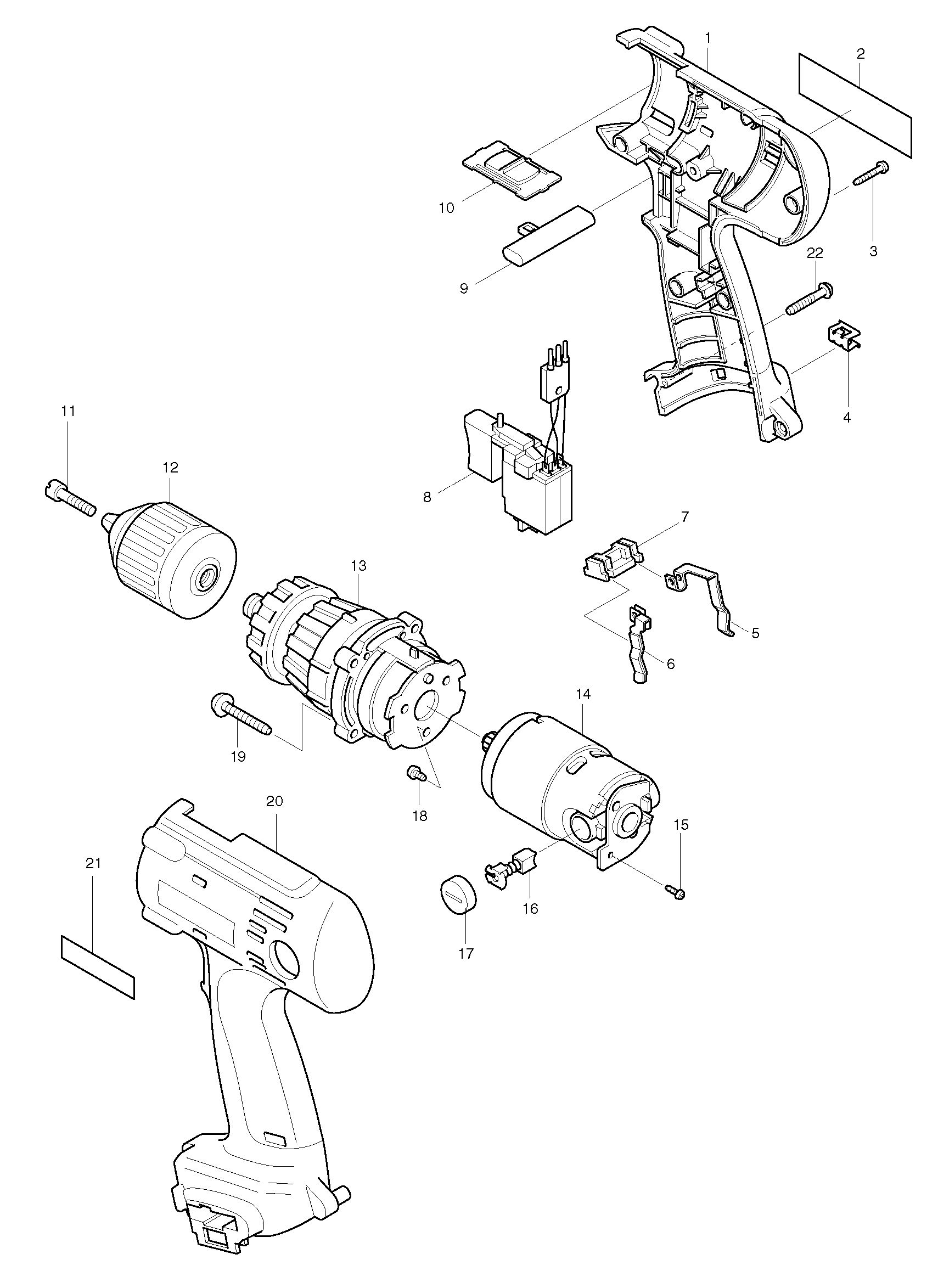

Sheet 1: Makita 8413D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183201-6 | Makita 183201-6 HOUSING SET |
| 2 | 852125-4 | |
| 3 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 4 | 344391-2 | Makita 344391-2 Bit Holder for BDF460 6333D 6336D |
| 5 | 654168-0 | Makita 654168-0 SPRING TERMINAL (+) |
| 6 | 654169-8 | Makita 654169-8 SPRING TERMINAL (-) |
| 7 | 687085-9 | Makita 687085-9 HOLDER, 6226D |
| 8 | 651939-6 | Makita 651939-6 Switch 6336D 6908D 6960D 6313D 6314D 6316D 6333D 841D3 8433D |
| 9 | 416079-5 | Makita 416079-5 Change Lever for 6213D |
| 10 | 125091-1 | Makita 125091-1 Speed Change Lever 6096D 6204D 6214D 6228D 6314D 6343D |
| 11 | 251465-1 | Makita 251465-1 FLAT HEAD SCREW M6X32 |
| 12 | 193064-2 | |
| 13 | 125099-5 | Makita 125099-5 GEAR ASS'Y |
| 14 | 629733-4 | Makita 629733-4 DC MOTOR 12V |
| 15 | 911006-2 | Makita 911006-2 PAN HEAD SCREW M3*8, HR240D |
| 16 | 191971-3 | Makita 191971-3 Carbon Brushes CB-430 |
| 17 | 643929-3 | Makita 643929-3 Holder Cap for 6213D |
| 18 | 266134-1 | Makita 266134-1 TAPPING SCREW ST 4X8 |
| 19 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 20 | 183201-6 | Makita 183201-6 HOUSING SET |
| 21 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 22 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
