Makita 8400VD
Makita 8400VD: exploded parts diagram, 1 sheet, 28 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 8400VD: 28 positions on 1 sheet

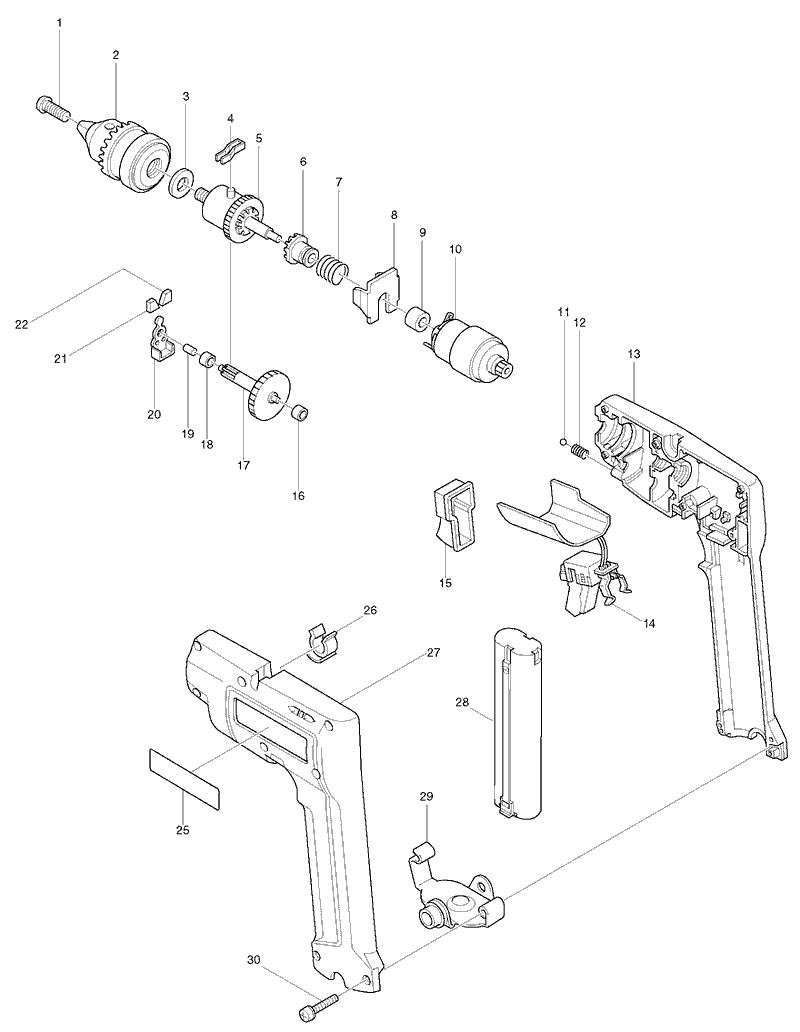

Sheet 1: Makita 8400VD parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 251448-1 | Makita 251448-1 - PAN HEAD SCREW M5X18 |
| 2 | 192879-4 | |
| 3 | 423097-6 | Makita 423097-6 RUBBER PLATE |
| 4 | 342668-9 | |
| 5 | 153147-0 | Makita 153147-0 SPINDLE COMPLETE |
| 6 | 223063-1 | Makita 223063-1 CLUTCH CAM |
| 7 | 231352-0 | Makita 231352-0 COMPRESSION SPRING 17 |
| 8 | 342669-7 | Makita 342669-7 RETAINER |
| 9 | 214014-5 | Makita 214014-5 PLANE BEARING 6, 6409 |
| 10 | 629574-8 | Makita 629574-8 DC Motor 9.6V for 4103D |
| 11 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 12 | 231026-3 | Makita 231026-3 COMPRESSION SPRING 4, LS0714 |
| 13 | 182376-8 | |
| 14 | 651914-2 | Makita 651914-2 Switch TG55A for 8400VD 8402VD DA391D DA302D |
| 15 | 421243-5 | Makita 421243-5 DUST COVER |
| 16 | 214019-5 | Makita 214019-5 PLANE BEARING 4 |
| 17 | 226067-2 | Makita 226067-2 GEAR COMPLETE 17-76 |
| 18 | 214019-5 | Makita 214019-5 PLANE BEARING 4 |
| 19 | 256047-4 | Makita 256047-4 PIN 6 |
| 20 | 164702-3 | |
| 21 | 423030-8 | Makita 423030-8 RUBBER PLUG |
| 22 | 423030-8 | Makita 423030-8 RUBBER PLUG |
| 25 | 856861-4 | |
| 26 | 411640-3 | Makita 411640-3 HOLDER 6 |
| 27 | 182376-8 | |
| 28 | 191681-2 | |
| 29 | 163157-9 | Makita 163157-9 SET PLATE |
| 30 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
