Makita 8391D
Makita 8391D: exploded parts diagram, 1 sheet, 16 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 8391D: 16 positions on 1 sheet

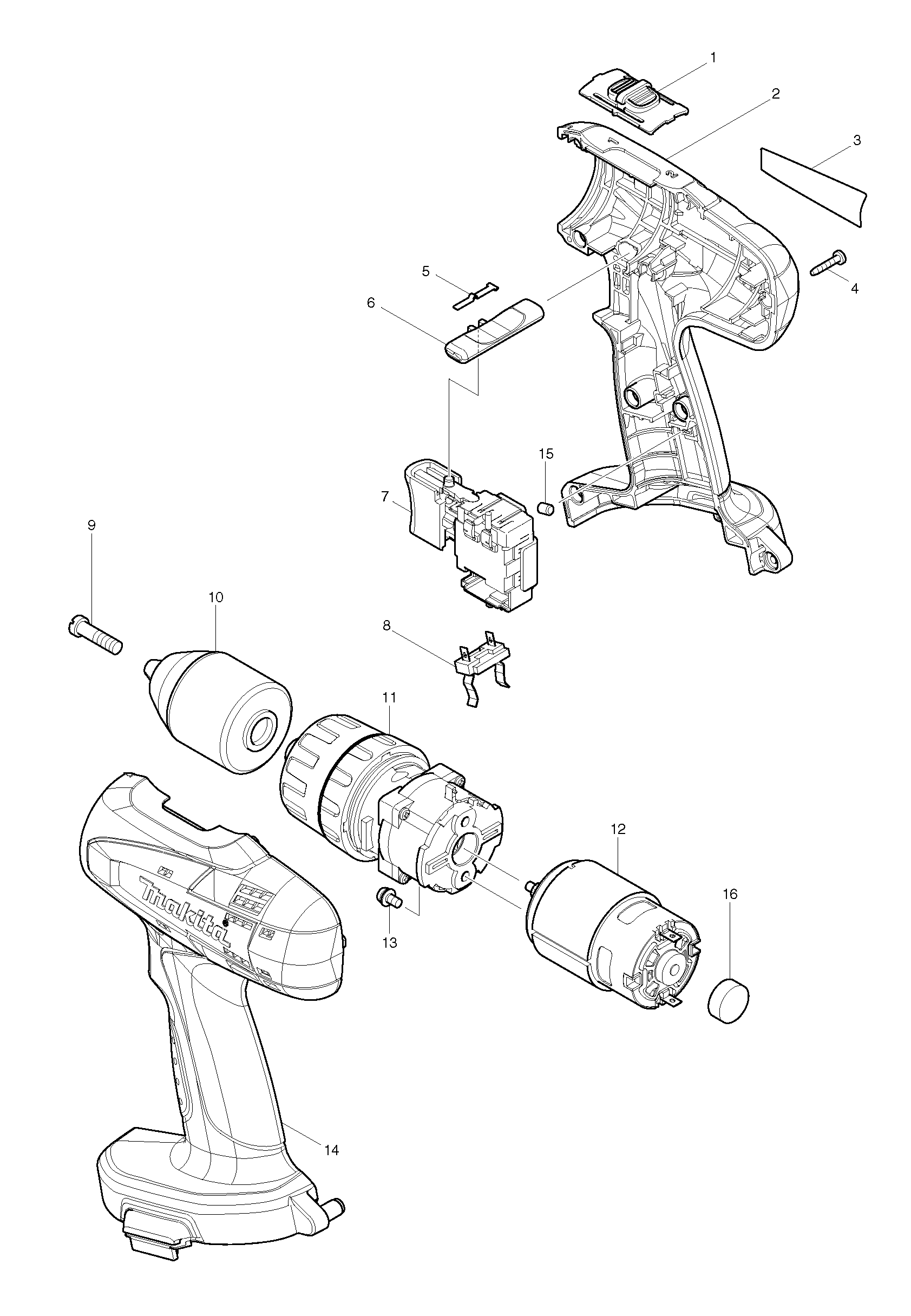

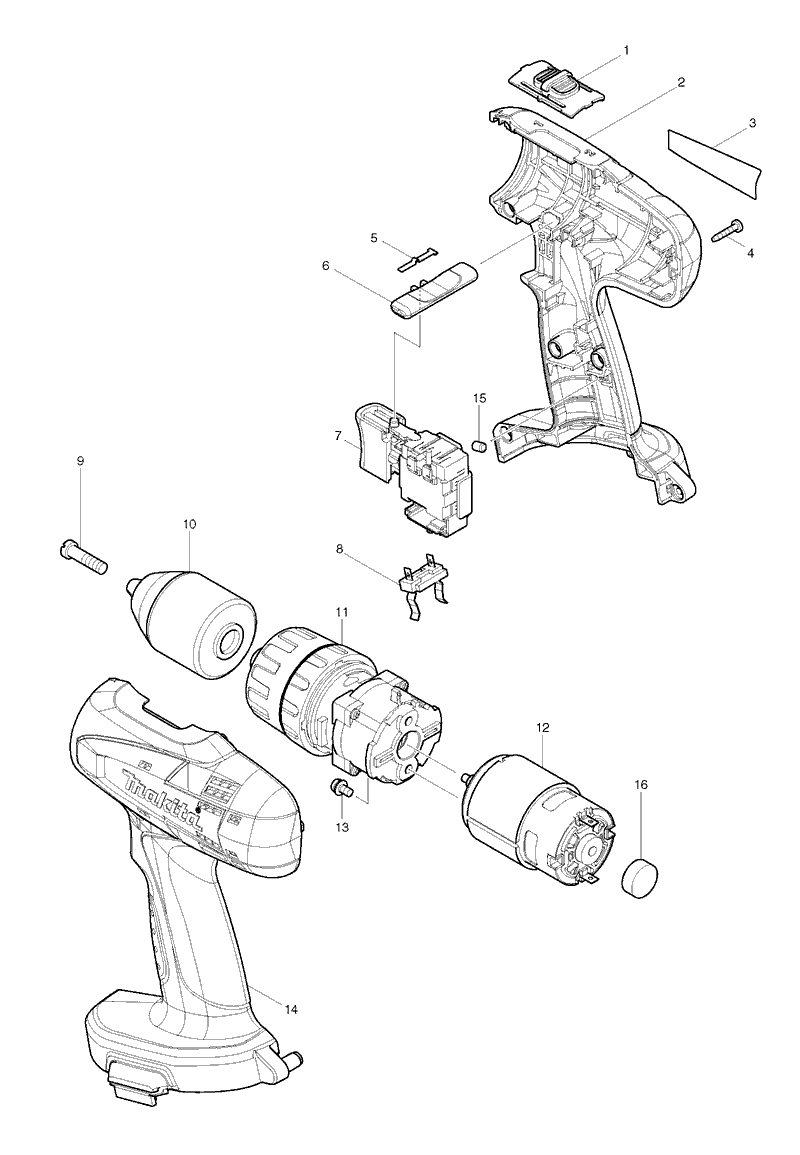

Sheet 1: Makita 8391D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 125310-5 | Makita 125310-5 Speed Change Lever Assembly 6271D BDF450 BHP440 BHP450 |
| 2 | 188513-2 | Makita 188513-2 HOUSING SET, 6391D |
| 3 | 865211-2 | Makita 865211-2 NAME PLATE, 8391D |
| 4 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 5 | 232182-2 | Makita 232182-2 Leaf Spring for 6226D |
| 6 | 450584-2 | Makita 450584-2 F/R Change Lever for 6261D 6271D 6281D 8271D 8281D |
| 7 | 650602-8 | Makita 650602-8 Switch TG563FSB-3 for 6391D 8391D |
| 8 | 643918-8 | Makita 643918-8 BATTERY HOLDER *, 6390D |
| 9 | 251468-5 | Makita 251468-5 Flat Head Screw M6 X 22 6281 8391 BDF456 BHP442 BHP451 |
| 10 | 766004-9 | |
| 11 | 125485-0 | Makita 125485-0 Gear Assembly for 8391D BHP453 DHP453 |
| 12 | 629834-8 | Makita 629834-8 Motor 18V for 6390D BHP453 DHP453 BDF453 |
| 13 | 911108-4 | Makita 911108-4 PAN HEAD SCREW M4*8, 5704R |
| 14 | 188513-2 | Makita 188513-2 HOUSING SET, 6391D |
| 15 | 263024-9 | Makita 263024-9 RUBBER PIN 4 |
| 16 | 421940-3 | Makita 421940-3 CAP, 8390D |
