Makita 8015D
Makita 8015D: exploded parts diagram, 1 sheet, 55 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 8015D: 55 positions on 1 sheet

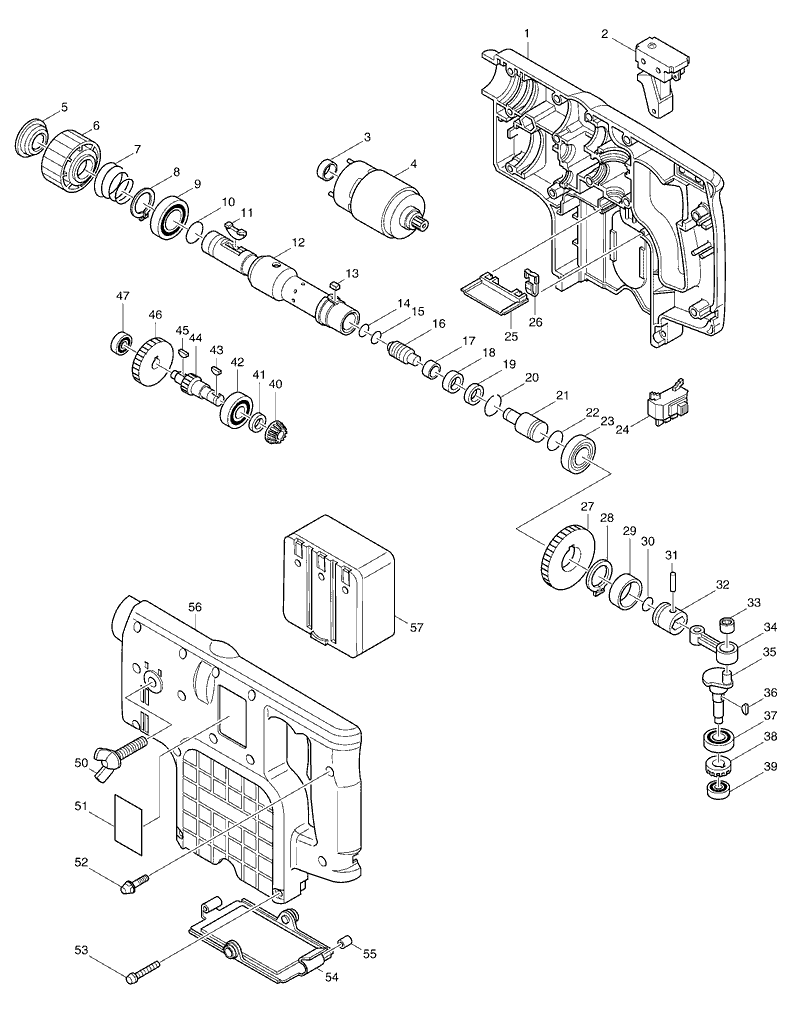

Sheet 1: Makita 8015D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 182488-7 | Makita 182488-7 HOUSING SET |
| 2 | 531052-5 | Makita 531052-5 SWITCH ASS'Y C3BH |
| 3 | 286225-2 | |
| 4 | 629571-4 | |
| 5 | 286220-2 | Makita 286220-2 CAP 34 |
| 6 | 414483-2 | Makita 414483-2 CHANGE RING |
| 7 | 231937-2 | Makita 231937-2 CONICAL COMPR. SPRING 21- |
| 8 | 961060-6 | Makita 961060-6 RETANING RING S-20, HM1800 |
| 9 | 211323-3 | Makita 211323-3 BALL BEARING 6904LLU, HR2412 |
| 10 | 213064-7 | Makita 213064-7 O RING 10 |
| 11 | 322310-8 | Makita 322310-8 KEY 4 |
| 12 | 322184-7 | Makita 322184-7 CYLINDER LINER 20 |
| 13 | 254201-4 | Makita 254201-4 KEY 4 |
| 14 | 213063-9 | Makita 213063-9 O RING 10, HR2412 |
| 15 | 213063-9 | Makita 213063-9 O RING 10, HR2412 |
| 16 | 321913-5 | Makita 321913-5 IMPACT BOLT |
| 17 | 262038-5 | Makita 262038-5 RUBBER RING 17 HR2000 |
| 18 | 322214-4 | |
| 19 | 257152-0 | |
| 20 | 231944-5 | |
| 21 | 321911-9 | Makita 321911-9 STRIKER |
| 22 | 213214-4 | Makita 213214-4 O RING 16 |
| 23 | 213418-8 | Makita 213418-8 OIL SEAL 28 |
| 24 | 531054-1 | Makita 531054-1 SWITCH ASS Y C3BC |
| 25 | 414164-8 | Makita 414164-8 PLATE |
| 26 | 654083-8 | Makita 654083-8 SPRING TERMINAL |
| 27 | 221976-0 | Makita 221976-0 SPUR GEAR 53 |
| 28 | 961105-0 | Makita 961105-0 RETAINING RING S-25 |
| 29 | 214355-9 | Makita 214355-9 PLANE BEARING 25 |
| 30 | 213214-4 | Makita 213214-4 O RING 16 |
| 31 | 256123-4 | Makita 256123-4 PIN 5 |
| 32 | 321483-4 | Makita 321483-4 PISTON |
| 33 | 212005-0 | Makita 212005-0 Needle Bearing 810, HR2412 |
| 34 | 321489-2 | Makita 321489-2 ROD |
| 35 | 322183-9 | Makita 322183-9 CRANK SHAFT |
| 36 | 254031-3 | Makita 254031-3 WOODRUFF KEY 3 |
| 37 | 211204-1 | |
| 38 | 221383-7 | |
| 39 | 211019-6 | Makita 211019-6 BALL BEARING 626, EBH250U |
| 40 | 221383-7 | |
| 41 | 257151-2 | Makita 257151-2 RING 10 |
| 42 | 211064-1 | Makita 211064-1 BALL BEARING 6000, 2414NB |
| 43 | 254031-3 | Makita 254031-3 WOODRUFF KEY 3 |
| 44 | 221977-8 | Makita 221977-8 SPUR GEAR 12 |
| 45 | 254031-3 | Makita 254031-3 WOODRUFF KEY 3 |
| 46 | 221978-6 | Makita 221978-6 SPUR GEAR 54 |
| 47 | 211019-6 | Makita 211019-6 BALL BEARING 626, EBH250U |
| 50 | 271284-9 | |
| 51 | 856167-0 | Makita 856167-0 NAME PLATE 8015D |
| 52 | 911253-5 | Makita 911253-5 PANHEAD SCREW M5*30, EBH252L |
| 53 | 911278-9 | Makita 911278-9 PAN HEAD SCREW M5X55 |
| 54 | 168202-5 | Makita 168202-5 SET PLATE |
| 55 | 257622-9 | Makita 257622-9 SLEEVE 5 |
| 56 | 182488-7 | Makita 182488-7 HOUSING SET |
| 57 | 191592-1 |
