Makita 6953
Makita 6953: exploded parts diagram, 1 sheet, 45 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6953: 45 positions on 1 sheet

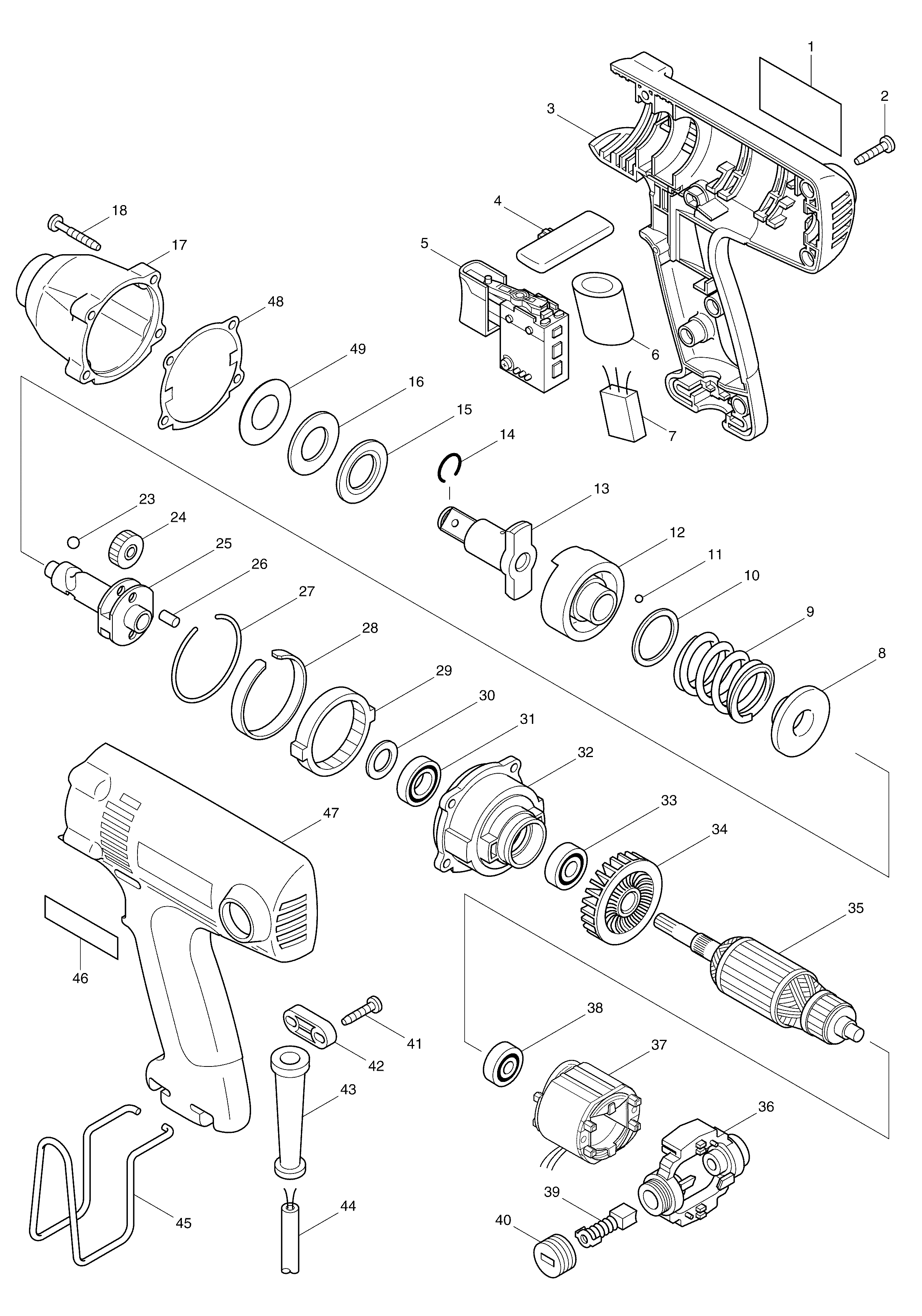

Sheet 1: Makita 6953 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 853010-4 | |
| 2 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 3 | 183394-9 | Makita 183394-9 HOUSING SET6952 |
| 4 | 417553-6 | Makita 417553-6 F/R CHANGE LEVER6952 |
| 5 | 650523-4 | Makita 650523-4 Switch C3MA-DB for 6953 TW0200 TW0250 220-240V |
| 6 | 685722-9 | Makita 685722-9 SPONGE SHEET |
| 7 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 8 | 267759-4 | Makita 267759-4 CUP WASHER 146952 |
| 9 | 233335-6 | |
| 10 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 11 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 12 | 324174-6 | |
| 13 | 324176-2 | |
| 14 | 231907-1 | Makita 231907-1 RING SPRING 10 |
| 15 | 267227-7 | |
| 16 | 261120-7 | |
| 17 | 152827-5 | |
| 18 | 922156-8 | |
| 23 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 24 | 227027-7 | Makita 227027-7 SPUR GEAR 22BTW251 |
| 25 | 324090-2 | Makita 324090-2 SPINDLE6952 |
| 26 | 268070-7 | |
| 27 | 233910-8 | Makita 233910-8 RING SPRING 436952 |
| 28 | 344991-8 | Makita 344991-8 C-SLEEVE 456952 |
| 29 | 227001-5 | Makita 227001-5 INTERNAL GEAR 51 |
| 30 | 267212-0 | Makita 267212-0 FLAT WASHER 12, 6935FD |
| 31 | 211140-1 | Makita 211140-1 BALL BEARING 6901LLB, TD140D |
| 32 | 317428-8 | Makita 317428-8 INTERNAL GEAR CASE6952 |
| 33 | 210024-0 | Makita 210024-0 BALL BEARING 608LLU, HR2810 |
| 34 | 240046-6 | |
| 35 | 517554-5 | Makita 517554-5 ARMATURE ASS'Y 230-240V |
| 36 | 152990-4 | Makita 152990-4 HOLDER ARM COMPLETE6952 |
| 37 | 635049-7 | |
| 38 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 39 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
| 40 | 643928-5 | Makita 643928-5 BRUSH HOLDER CAP, 9523NB |
| 41 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 42 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 43 | 682566-8 | Makita 682566-8 CORD GUAUD 10-110, 6824 |
| 44 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 45 | 324129-1 | |
| 46 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 47 | 183394-9 | Makita 183394-9 HOUSING SET6952 |
| 48 | 442137-1 | Makita 442137-1 GASKET6952 |
| 49 | 267235-8 |
