Makita 6936FD
Makita 6936FD: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6936FD: 48 positions on 1 sheet

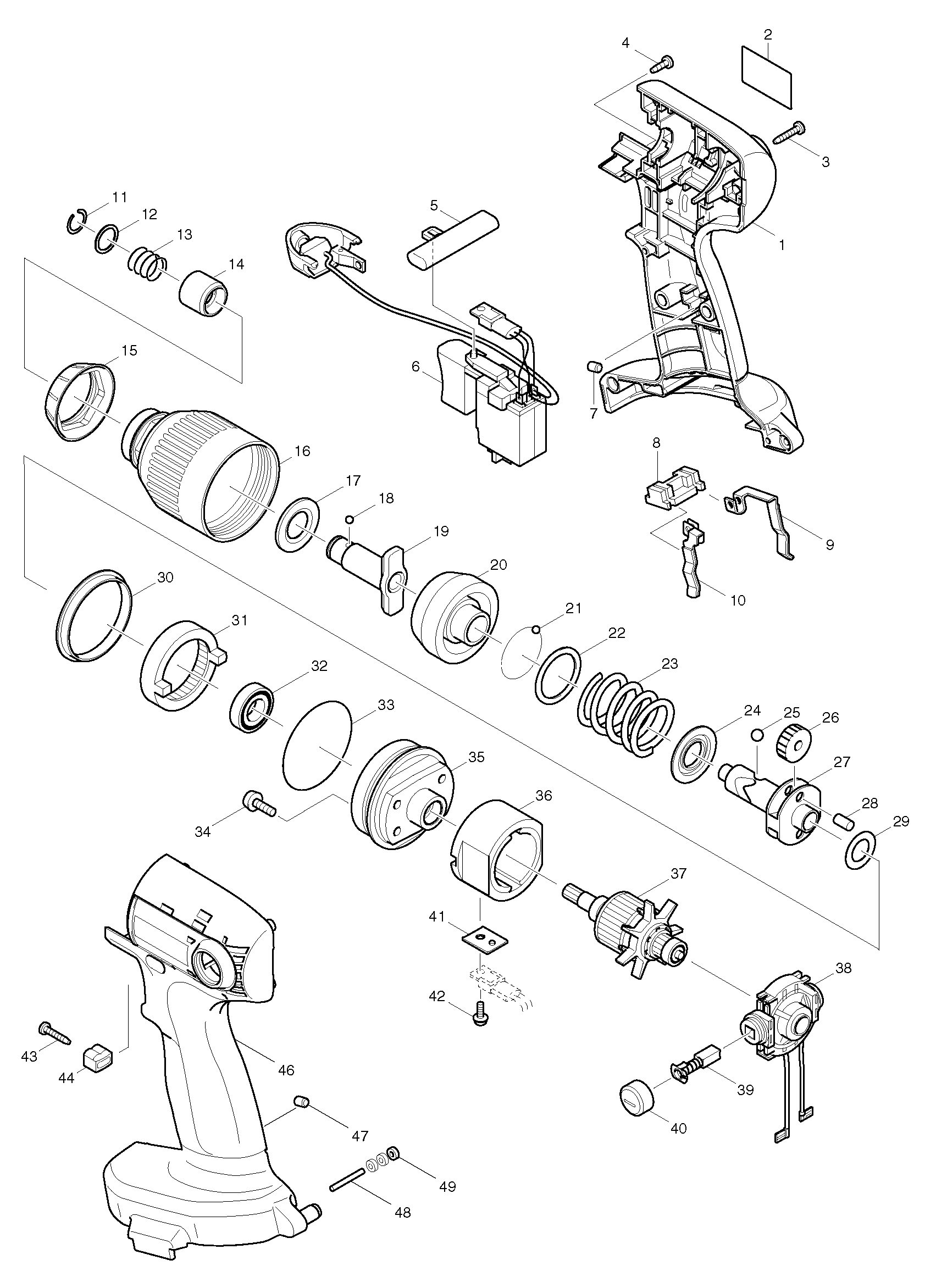

Sheet 1: Makita 6936FD parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 188078-4 | |
| 2 | 862145-0 | |
| 3 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 4 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 5 | 416079-5 | Makita 416079-5 Change Lever for 6213D |
| 6 | 638437-7 | Makita 638437-7 Switch for 6936FD 6936FDWAE |
| 7 | 263024-9 | Makita 263024-9 RUBBER PIN 4 |
| 8 | 687085-9 | Makita 687085-9 HOLDER, 6226D |
| 9 | 654253-9 | |
| 10 | 654254-7 | |
| 11 | 231951-8 | Makita 231951-8 Ring Spring 11 for 6935FD |
| 12 | 267085-1 | Makita 267085-1 Flat Washer 12 6935FD TD126 DTD154 |
| 13 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 14 | 324420-7 | Makita 324420-7 Sleeve for 6935FD |
| 15 | 421847-3 | Makita 421847-3 BUMPER, 6980FD |
| 16 | 153808-2 | Makita 153808-2 HAMMER CASE COMPLETE, 6980FD |
| 17 | 261108-7 | Makita 261108-7 NYLON WASHER 14, 6935FD |
| 18 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 19 | 324432-0 | Makita 324432-0 Anvil M for 6935FD |
| 20 | 324359-4 | |
| 21 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 22 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 23 | 233381-9 | |
| 24 | 267766-7 | Makita 267766-7 FLAT WASHER 14, 6935FD |
| 25 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 26 | 226336-1 | Makita 226336-1 SPUR GEAR 22, 6935FD |
| 27 | 324220-5 | Makita 324220-5 SPINDLE, 6935FD |
| 28 | 256253-1 | Makita 256253-1 PIN 5, TD140D |
| 29 | 267212-0 | Makita 267212-0 FLAT WASHER 12, 6935FD |
| 30 | 257254-2 | Makita 257254-2 RING 41, 6935FD |
| 31 | 227112-6 | Makita 227112-6 INTERNAL GEAR 51, 6935FD |
| 32 | 211150-8 | Makita 211150-8 BALL BEARING 6901ZZ, 6935FD |
| 33 | 213620-3 | Makita 213620-3 O RING, 5704R |
| 34 | 911516-9 | Makita 911516-9 PAN HEAD SCREW M4X12, 6935FD |
| 35 | 317597-5 | Makita 317597-5 INTERNAL GEAR CASE, 6935FD |
| 36 | 638155-7 | Makita 638155-7 YORK UNIT |
| 37 | 619179-2 | Makita 619179-2 Armature for 6936FD |
| 38 | 638156-5 | Makita 638156-5 END BELL COMPLETE, 6935FD |
| 39 | 193466-2 | Makita 193466-2 CARBON BRUSH CB-434 |
| 40 | 643933-2 | Makita 643933-2 HOLDER CAP, 6935FD |
| 41 | 689096-0 | Makita 689096-0 FET SPACER, 6935FD |
| 42 | 266170-7 | Makita 266170-7 TAPPING SCREW ST3X8 |
| 43 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 44 | 313118-1 | Makita 313118-1 STOPPER, 6935FD |
| 46 | 188078-4 | |
| 47 | 263024-9 | Makita 263024-9 RUBBER PIN 4 |
| 48 | 256252-3 | Makita 256252-3 PIN, 6936FD |
| 49 | 262117-9 |
