Makita 6934FD: exploded parts diagram, 1 sheet, 39 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6934FD: 39 positions on 1 sheet

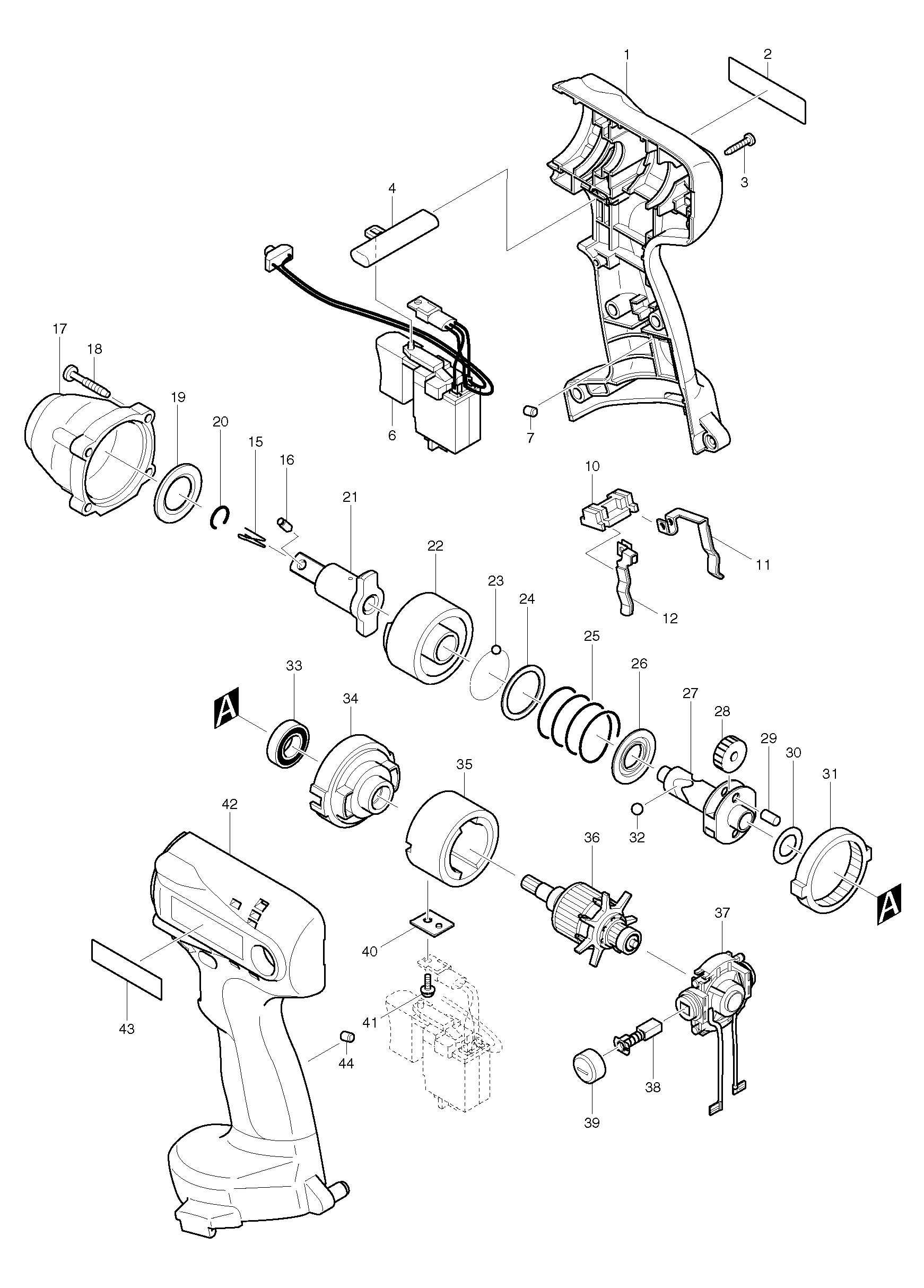

Sheet 1: Makita 6934FD parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183682-4 | |
| 2 | 850750-5 | |
| 3 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 4 | 416079-5 | Makita 416079-5 Change Lever for 6213D |
| 6 | 638288-8 | Makita 638288-8 SWITCH UNITC3LA-1A-TDLCE(N), 6916FD |
| 7 | 263024-9 | Makita 263024-9 RUBBER PIN 4 |
| 10 | 687085-9 | Makita 687085-9 HOLDER, 6226D |
| 11 | 654168-0 | Makita 654168-0 SPRING TERMINAL (+) |
| 12 | 654169-8 | Makita 654169-8 SPRING TERMINAL (-) |
| 15 | ||
| 16 | ||
| 17 | 151946-4 | Makita 151946-4 HAMMER CASE COMPLETE |
| 18 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 19 | 261116-8 | Makita 261116-8 NYLON WASHER 18 |
| 20 | 231907-1 | Makita 231907-1 RING SPRING 10 |
| 21 | 323892-3 | Makita 323892-3 ANVIL, 6918FD |
| 22 | 324404-5 | |
| 23 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 24 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 25 | 233276-6 | Makita 233276-6 COMPRESSION SPRING 25, 6918FD |
| 26 | 267766-7 | Makita 267766-7 FLAT WASHER 14, 6935FD |
| 27 | 324220-5 | Makita 324220-5 SPINDLE, 6935FD |
| 28 | 226336-1 | Makita 226336-1 SPUR GEAR 22, 6935FD |
| 29 | 256253-1 | Makita 256253-1 PIN 5, TD140D |
| 30 | 267212-0 | Makita 267212-0 FLAT WASHER 12, 6935FD |
| 31 | 227001-5 | Makita 227001-5 INTERNAL GEAR 51 |
| 32 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 33 | 211140-1 | Makita 211140-1 BALL BEARING 6901LLB, TD140D |
| 34 | 417269-3 | Makita 417269-3 INTERNAL GEAR CASE, 6916FD |
| 35 | 632965-4 | Makita 632965-4 YOKE PCE |
| 36 | 619132-8 | Makita 619132-8 Armature 6932FD |
| 37 | 638156-5 | Makita 638156-5 END BELL COMPLETE, 6935FD |
| 38 | 193466-2 | Makita 193466-2 CARBON BRUSH CB-434 |
| 39 | 643933-2 | Makita 643933-2 HOLDER CAP, 6935FD |
| 40 | 689096-0 | Makita 689096-0 FET SPACER, 6935FD |
| 41 | 266170-7 | Makita 266170-7 TAPPING SCREW ST3X8 |
| 42 | 183682-4 | |
| 43 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 44 | 263024-9 | Makita 263024-9 RUBBER PIN 4 |
