Makita 6931D
Makita 6931D: exploded parts diagram, 1 sheet, 45 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6931D: 45 positions on 1 sheet

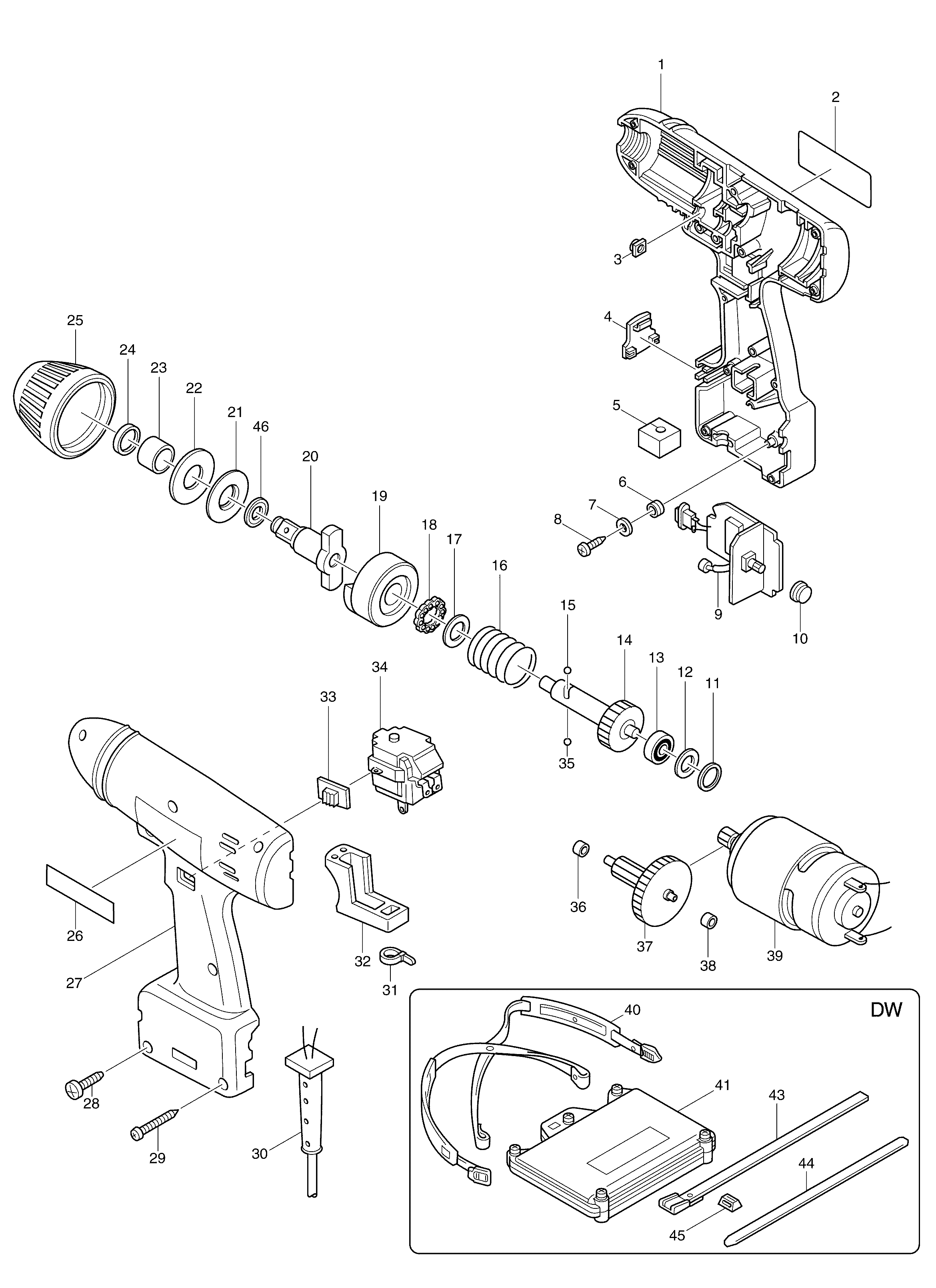

Sheet 1: Makita 6931D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 182611-4 | Makita 182611-4 HOUSING SET |
| 2 | 857634-8 | Makita 857634-8 NAME PLATE 6931D |
| 3 | 415390-2 | Makita 415390-2 PLUG A |
| 4 | 415392-8 | Makita 415392-8 PLUG C |
| 5 | 443094-6 | Makita 443094-6 CONDENSER COVER |
| 6 | 262527-0 | Makita 262527-0 RUBBER RING 5 |
| 7 | 253821-1 | Makita 253821-1 FLAT WASHER 3 |
| 8 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 9 | 631168-7 | Makita 631168-7 CONTROL CIRCUIT |
| 10 | 415391-0 | Makita 415391-0 PLUG B |
| 11 | 213261-5 | Makita 213261-5 O RING 17 |
| 12 | 253707-9 | Makita 253707-9 FLAT WASHER 16 |
| 13 | 210007-0 | Makita 210007-0 BALL BEARING 608VV, 6827 |
| 14 | 153185-2 | Makita 153185-2 SPINDLE COMPLETE |
| 15 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 16 | 231472-0 | Makita 231472-0 COMPRESSION SPRING 20 |
| 17 | 216203-8 | |
| 18 | 211229-5 | Makita 211229-5 THRUST BALL BEARING 1528 |
| 19 | 322253-4 | Makita 322253-4 HAMMER |
| 20 | 322275-4 | Makita 322275-4 Anvil for 6902 6904VH BTW201 BTW200 |
| 21 | 267054-2 | Makita 267054-2 FLAT WASHER 18 |
| 22 | 261079-8 | |
| 23 | 257623-7 | Makita 257623-7 SLEEVE 18 |
| 24 | 213257-6 | Makita 213257-6 OIL SEAL 18 |
| 25 | 421355-4 | Makita 421355-4 DUMPER 6902D |
| 26 | 819001-5 | |
| 27 | 182611-4 | Makita 182611-4 HOUSING SET |
| 28 | 265925-7 | |
| 29 | 265876-4 | Makita 265876-4 TAPPING SCREW BT 4X40 |
| 30 | 661992-4 | Makita 661992-4 POWER SUPPLY CORD 1.25-2- |
| 31 | 687010-0 | Makita 687010-0 BAND, 5704R |
| 32 | 415671-4 | Makita 415671-4 SWITCH LEVER, 6222D |
| 33 | 414740-8 | Makita 414740-8 F/R CHANGE LEVER, 6222D |
| 34 | 651909-5 | Makita 651909-5 SWITCH C3KE-8, 6221D |
| 35 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 36 | 214012-9 | Makita 214012-9 PLANE BEARING 6 |
| 37 | 226089-2 | Makita 226089-2 GEAR COMPLETE 13-38 |
| 38 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 39 | 629591-8 | |
| 40 | 163318-1 | Makita 163318-1 SHOULDER STRAP |
| 41 | 192348-5 | |
| 43 | 163315-7 | Makita 163315-7 WAIST BELT |
| 44 | 444015-1 | Makita 444015-1 ADJUST BELT |
| 45 | 414755-5 | Makita 414755-5 SQUARE RING |
| 46 | 231907-1 | Makita 231907-1 RING SPRING 10 |
