Makita 6914D
Makita 6914D: exploded parts diagram, 1 sheet, 44 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6914D: 44 positions on 1 sheet

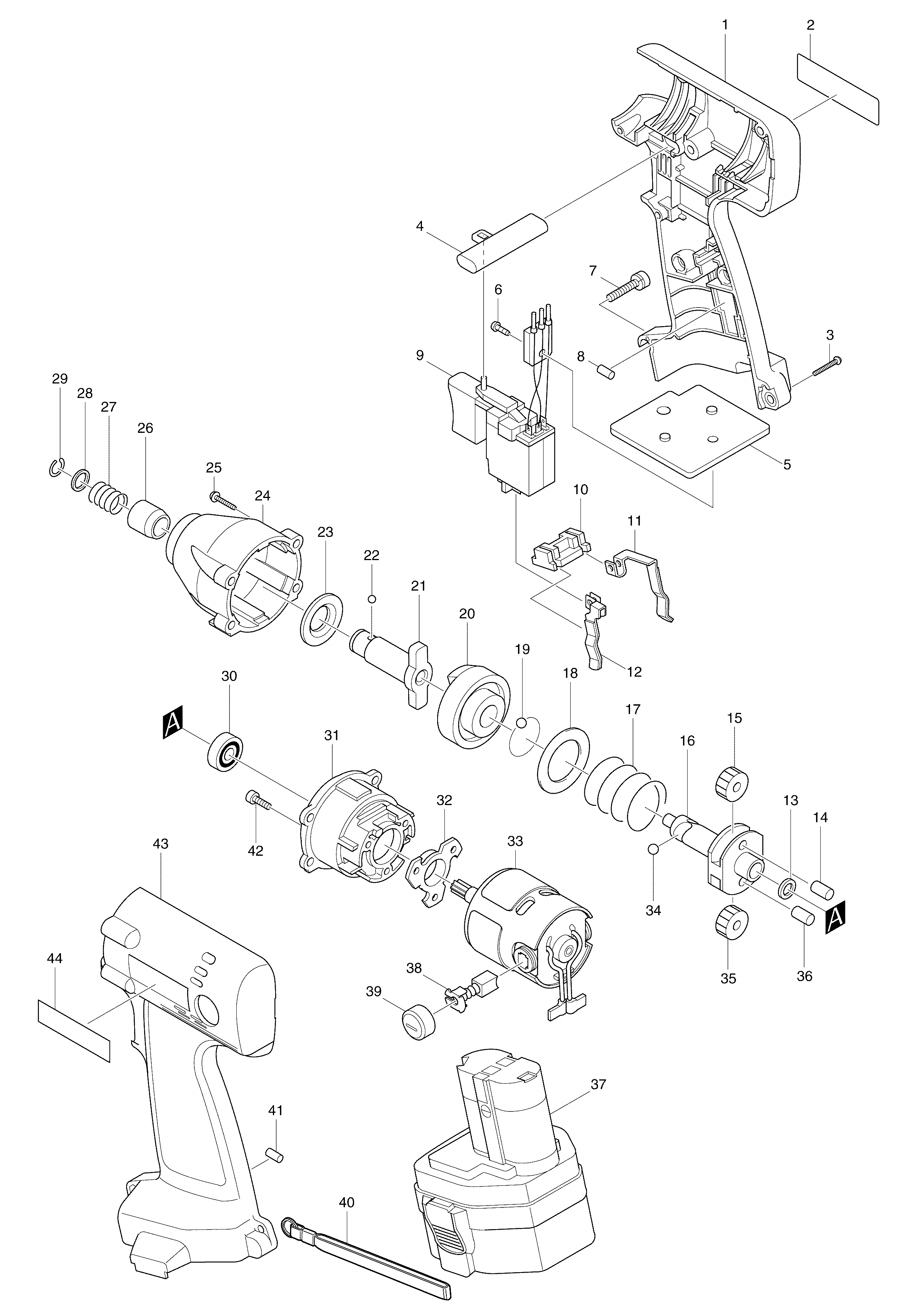

Sheet 1: Makita 6914D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 182945-5 | Makita 182945-5 HOUSING SET FOR 6960DW |
| 2 | 859072-0 | Makita 859072-0 NAME PLATE 6914D |
| 3 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 4 | 416079-5 | Makita 416079-5 Change Lever for 6213D |
| 5 | 689070-8 | Makita 689070-8 HEAT SINK |
| 6 | 911006-2 | Makita 911006-2 PAN HEAD SCREW M3*8, HR240D |
| 7 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 8 | 263024-9 | Makita 263024-9 RUBBER PIN 4 |
| 9 | 651939-6 | Makita 651939-6 Switch 6336D 6908D 6960D 6313D 6314D 6316D 6333D 841D3 8433D |
| 10 | 687085-9 | Makita 687085-9 HOLDER, 6226D |
| 11 | 654168-0 | Makita 654168-0 SPRING TERMINAL (+) |
| 12 | 654169-8 | Makita 654169-8 SPRING TERMINAL (-) |
| 13 | 253052-2 | Makita 253052-2 FLAT WASHER 12, TD0900 |
| 14 | 256253-1 | Makita 256253-1 PIN 5, TD140D |
| 15 | 226340-0 | Makita 226340-0 SPUR GEAR 18 |
| 16 | 323731-7 | |
| 17 | 233205-9 | Makita 233205-9 COMPRESSION SPRING 24 |
| 18 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 19 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 20 | 322999-2 | Makita 322999-2 HAMMER |
| 21 | 322754-2 | Makita 322754-2 ANVIL |
| 22 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 23 | 261108-7 | Makita 261108-7 NYLON WASHER 14, 6935FD |
| 24 | 152570-6 | Makita 152570-6 HAMMER CASE COMPLETE |
| 25 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 26 | 322434-0 | Makita 322434-0 SLEEVE |
| 27 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 28 | 267085-1 | Makita 267085-1 Flat Washer 12 6935FD TD126 DTD154 |
| 29 | 231951-8 | Makita 231951-8 Ring Spring 11 for 6935FD |
| 30 | 211101-1 | Makita 211101-1 BEARING 6001LLB, JR3060T |
| 31 | 152575-6 | |
| 32 | 416400-8 | Makita 416400-8 PLATE |
| 33 | 629717-2 | Makita 629717-2 DC MOTOR |
| 34 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 35 | 226340-0 | Makita 226340-0 SPUR GEAR 18 |
| 36 | 256253-1 | Makita 256253-1 PIN 5, TD140D |
| 37 | 192597-4 | |
| 38 | 191966-6 | Makita 191966-6 Carbon Brushes CB-424 |
| 39 | 643933-2 | Makita 643933-2 HOLDER CAP, 6935FD |
| 40 | ||
| 41 | 263024-9 | Makita 263024-9 RUBBER PIN 4 |
| 42 | 266177-3 | Makita 266177-3 Hex Socket Head Bolt M3*10 4322 |
| 43 | 182945-5 | Makita 182945-5 HOUSING SET FOR 6960DW |
| 44 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
