Makita 6911HD
Makita 6911HD: exploded parts diagram, 1 sheet, 28 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6911HD: 28 positions on 1 sheet

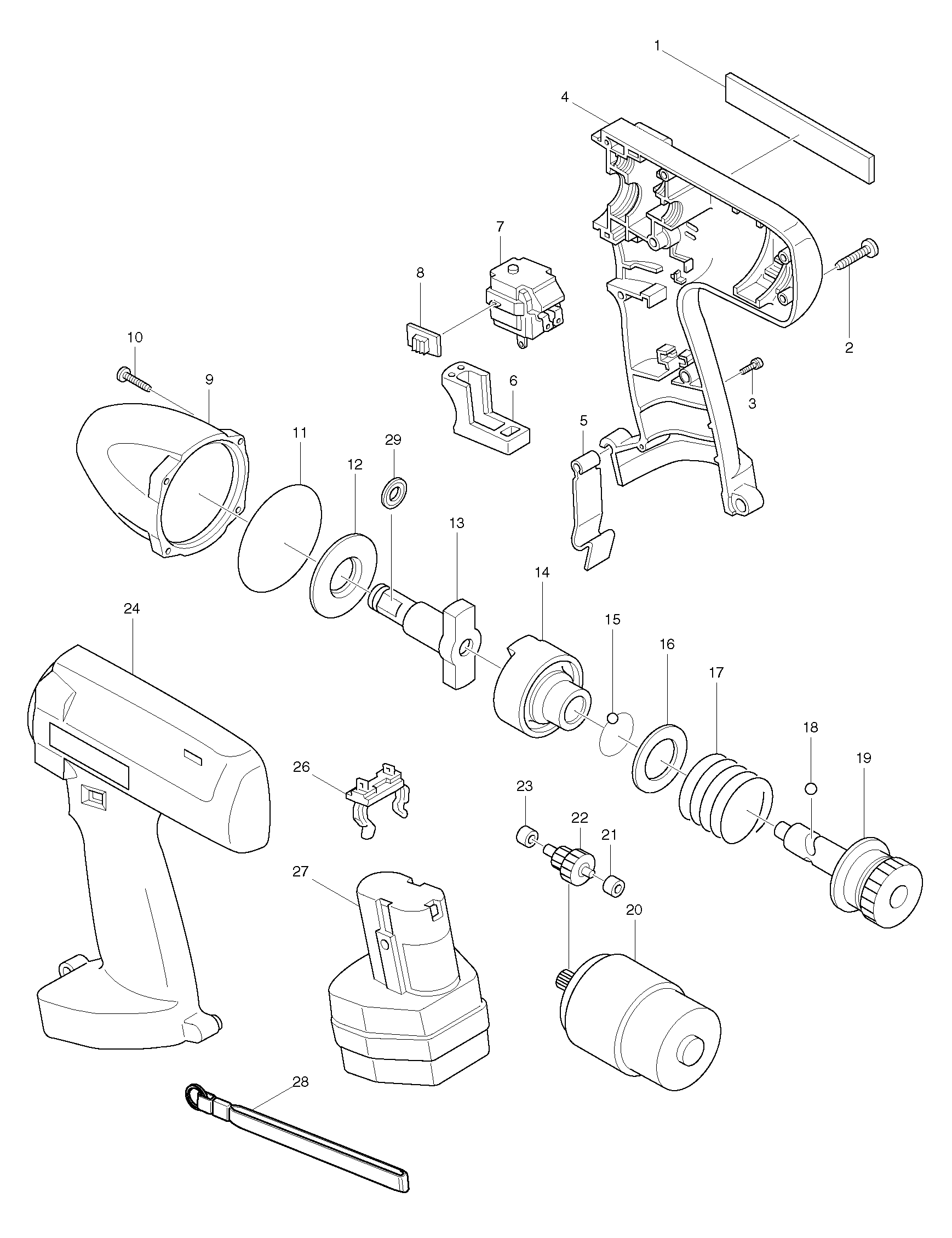

Sheet 1: Makita 6911HD parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 857182-7 | |
| 2 | 265925-7 | |
| 3 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 4 | 182532-0 | Makita 182532-0 HOUSING SET |
| 5 | 343579-1 | |
| 6 | 414708-4 | |
| 7 | 651909-5 | Makita 651909-5 SWITCH C3KE-8, 6221D |
| 8 | 414740-8 | Makita 414740-8 F/R CHANGE LEVER, 6222D |
| 9 | 152411-6 | Makita 152411-6 HAMMER CASE COMPLETE |
| 10 | 265925-7 | |
| 11 | 213604-1 | Makita 213604-1 O RING 50 |
| 12 | 267054-2 | Makita 267054-2 FLAT WASHER 18 |
| 13 | 322592-2 | Makita 322592-2 Anvil for 6915D |
| 14 | 322527-3 | Makita 322527-3 HAMMER |
| 15 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 16 | 267088-5 | Makita 267088-5 FLAT WASHER 28 |
| 17 | 233045-5 | Makita 233045-5 COMPRESSION SPRING 30 |
| 18 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 19 | 153216-7 | Makita 153216-7 SPINDLE COMPLETE |
| 20 | 629638-8 | Makita 629638-8 DC MOTOR 12V 6911D SC120 |
| 21 | 214027-6 | Makita 214027-6 PLANE BEARING 4 |
| 22 | 226115-7 | |
| 23 | 214027-6 | Makita 214027-6 PLANE BEARING 4 |
| 24 | 182532-0 | Makita 182532-0 HOUSING SET |
| 26 | 643918-8 | Makita 643918-8 BATTERY HOLDER *, 6390D |
| 27 | 192536-4 | |
| 28 | ||
| 29 | 231907-1 | Makita 231907-1 RING SPRING 10 |
