All parts of Makita 6910: 51 positions on 1 sheet

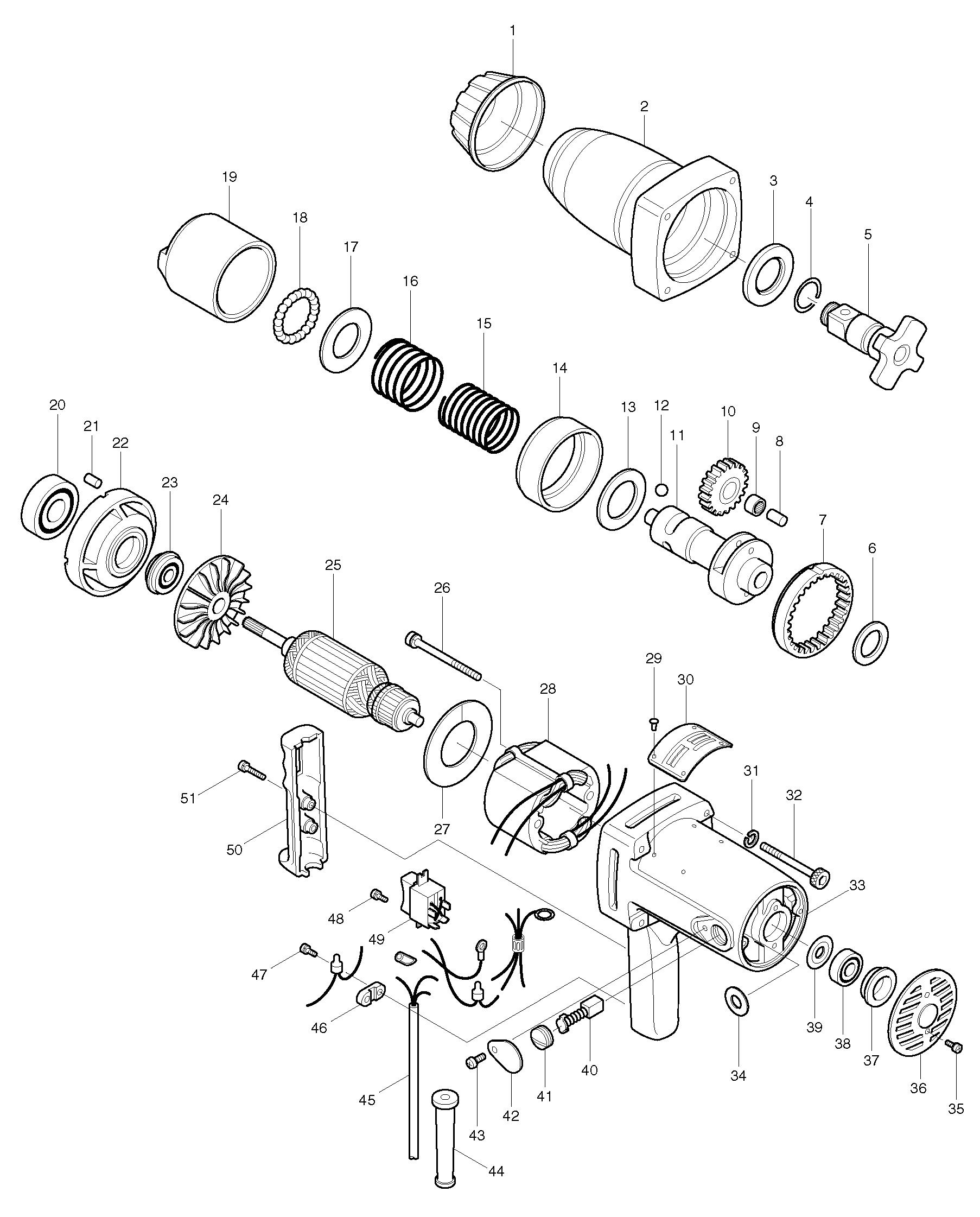

Sheet 1: Makita 6910 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 421120-1 | Makita 421120-1 BUMPER |
| 2 | 156135-6 | Makita 156135-6 HAMMER CASE |
| 3 | 253909-7 | Makita 253909-7 FLAT WASHER 35 |
| 4 | 231921-7 | Makita 231921-7 RING SPRING 22 |
| 5 | 325587-4 | Makita 325587-4 Anvil for 6910 TW1000 |
| 6 | 253182-9 | Makita 253182-9 FLAT WASHER 36 |
| 7 | 221815-4 | Makita 221815-4 INTERNAL GEAR 82 |
| 8 | 256051-3 | Makita 256051-3 PIN 10 |
| 9 | 212063-6 | Makita 212063-6 NEEDLE BEARING 1012 |
| 10 | 221816-2 | Makita 221816-2 SPUR GEAR 37 |
| 11 | 325416-1 | Makita 325416-1 SPINDLE 6910 |
| 12 | 216010-9 | Makita 216010-9 STEEL BALL 10.3 |
| 13 | 253713-4 | Makita 253713-4 FLAT WASHER 35 |
| 14 | 333112-7 | Makita 333112-7 RING 79 |
| 15 | 231211-8 | Makita 231211-8 COMPRESSION SPRING 36 |
| 16 | 231212-6 | Makita 231212-6 COMPRESSION SPRING 49 |
| 17 | 253712-6 | Makita 253712-6 FLAT WASHER 36 |
| 18 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 19 | 325415-3 | Makita 325415-3 HAMMER 6910 |
| 20 | 211451-4 | Makita 211451-4 BALL BEARING 6007LLB |
| 21 | 256040-8 | Makita 256040-8 PIN 5 |
| 22 | 312739-6 | Makita 312739-6 BEARING HOUSING |
| 23 | 211217-2 | Makita 211217-2 BALL BEARING 1511LLB |
| 24 | 241613-0 | Makita 241613-0 FAN 90 |
| 25 | 513285-4 | Makita 513285-4 ARMATURE ASS'Y 220V |
| 26 | 265343-9 | |
| 27 | 413009-7 | Makita 413009-7 BAFFLE PLATE |
| 28 | 623255-6 | Makita 623255-6 FIELD 220V |
| 29 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 30 | 815015-2 | Makita 815015-2 NAME PLATE 6910 |
| 31 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 32 | 922382-9 | Makita 922382-9 HEX. SOCKET HEAD BOLT M6X |
| 33 | 156136-4 | Makita 156136-4 MOTOR HOUSING |
| 34 | 681002-1 | Makita 681002-1 INSULATION WASHER |
| 35 | 911216-1 | Makita 911216-1 PAN HEAD SCREW M5X14 |
| 36 | 284016-5 | Makita 284016-5 REAR COVER |
| 37 | 421075-0 | Makita 421075-0 CUSHION RING |
| 38 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 39 | 213051-6 | Makita 213051-6 DUST SEAL 10 |
| 40 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 41 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 42 | 341367-0 | Makita 341367-0 Brush Cap Cover |
| 43 | 911111-5 | Makita 911111-5 PAN HEAD SCREW M4*10, M926 |
| 44 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 45 | 665231-4 | Makita 665231-4 POWER SUPPLY CORD 1.00-3- |
| 46 | 687000-3 | |
| 47 | 911123-8 | Makita 911123-8 PAN HEAD SCREW M4*14, N5900B |
| 48 | 911106-8 | Makita 911106-8 PAN HEAD SCREW M4X8, 5007NB |
| 49 | 651558-8 | Makita 651558-8 SWITCH SL220SD-4 |
| 50 | 312742-7 | Makita 312742-7 HANDLE COVER |
| 51 | 911146-6 | Makita 911146-6 PAN HEAD SCREW M4X25 |
