Makita 6908D
Makita 6908D: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6908D: 43 positions on 1 sheet

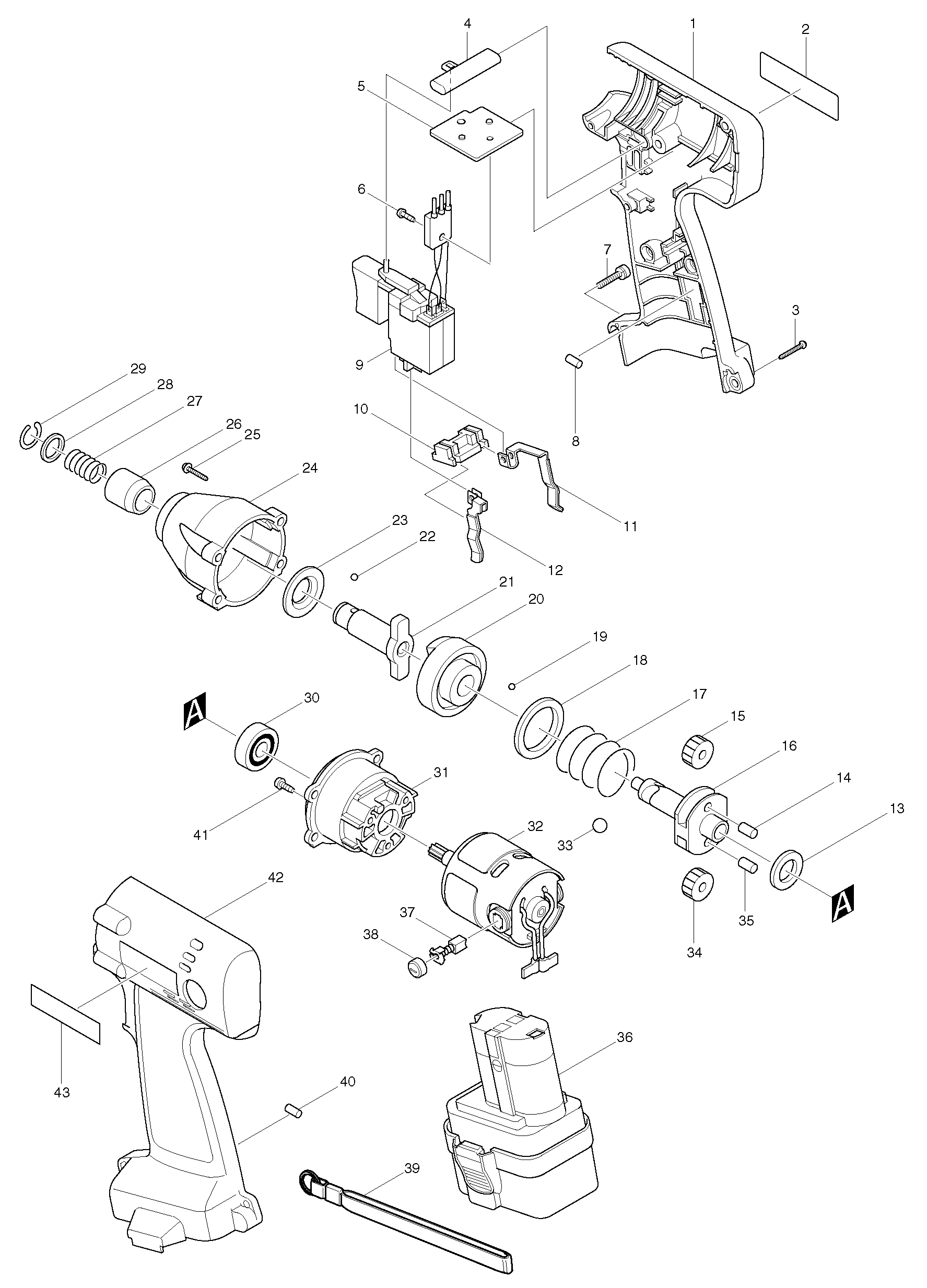

Sheet 1: Makita 6908D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 182919-6 | Makita 182919-6 HOUSING SET FOR 6908DW |
| 2 | 858715-1 | Makita 858715-1 NAME PLATE 6908D |
| 3 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 4 | 416079-5 | Makita 416079-5 Change Lever for 6213D |
| 5 | 689070-8 | Makita 689070-8 HEAT SINK |
| 6 | 911006-2 | Makita 911006-2 PAN HEAD SCREW M3*8, HR240D |
| 7 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 8 | 263024-9 | Makita 263024-9 RUBBER PIN 4 |
| 9 | 651939-6 | Makita 651939-6 Switch 6336D 6908D 6960D 6313D 6314D 6316D 6333D 841D3 8433D |
| 10 | 687085-9 | Makita 687085-9 HOLDER, 6226D |
| 11 | 654168-0 | Makita 654168-0 SPRING TERMINAL (+) |
| 12 | 654169-8 | Makita 654169-8 SPRING TERMINAL (-) |
| 13 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 14 | 256253-1 | Makita 256253-1 PIN 5, TD140D |
| 15 | 226336-1 | Makita 226336-1 SPUR GEAR 22, 6935FD |
| 16 | 322958-6 | Makita 322958-6 SPINDLE |
| 17 | 233193-0 | |
| 18 | 267148-3 | Makita 267148-3 FLAT WASHER 23 |
| 19 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 20 | 322957-8 | Makita 322957-8 HAMMER |
| 21 | 322754-2 | Makita 322754-2 ANVIL |
| 22 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 23 | 261108-7 | Makita 261108-7 NYLON WASHER 14, 6935FD |
| 24 | 152555-2 | Makita 152555-2 HAMMER CASE COMPLETE |
| 25 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 26 | 322434-0 | Makita 322434-0 SLEEVE |
| 27 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 28 | 267085-1 | Makita 267085-1 Flat Washer 12 6935FD TD126 DTD154 |
| 29 | 231951-8 | Makita 231951-8 Ring Spring 11 for 6935FD |
| 30 | 211101-1 | Makita 211101-1 BEARING 6001LLB, JR3060T |
| 31 | 416313-3 | Makita 416313-3 INTERNAL GEAR CASE |
| 32 | 629710-6 | Makita 629710-6 DC MOTOR 6908D |
| 33 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 34 | 226336-1 | Makita 226336-1 SPUR GEAR 22, 6935FD |
| 35 | 256253-1 | Makita 256253-1 PIN 5, TD140D |
| 36 | 192595-8 | |
| 37 | 191966-6 | Makita 191966-6 Carbon Brushes CB-424 |
| 38 | 643933-2 | Makita 643933-2 HOLDER CAP, 6935FD |
| 39 | ||
| 40 | 263024-9 | Makita 263024-9 RUBBER PIN 4 |
| 41 | 266166-8 | Makita 266166-8 TAPPING SCREW CT 3X8 |
| 42 | 182919-6 | Makita 182919-6 HOUSING SET FOR 6908DW |
| 43 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
