Makita 6906: exploded parts diagram, 1 sheet, 51 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6906: 51 positions on 1 sheet

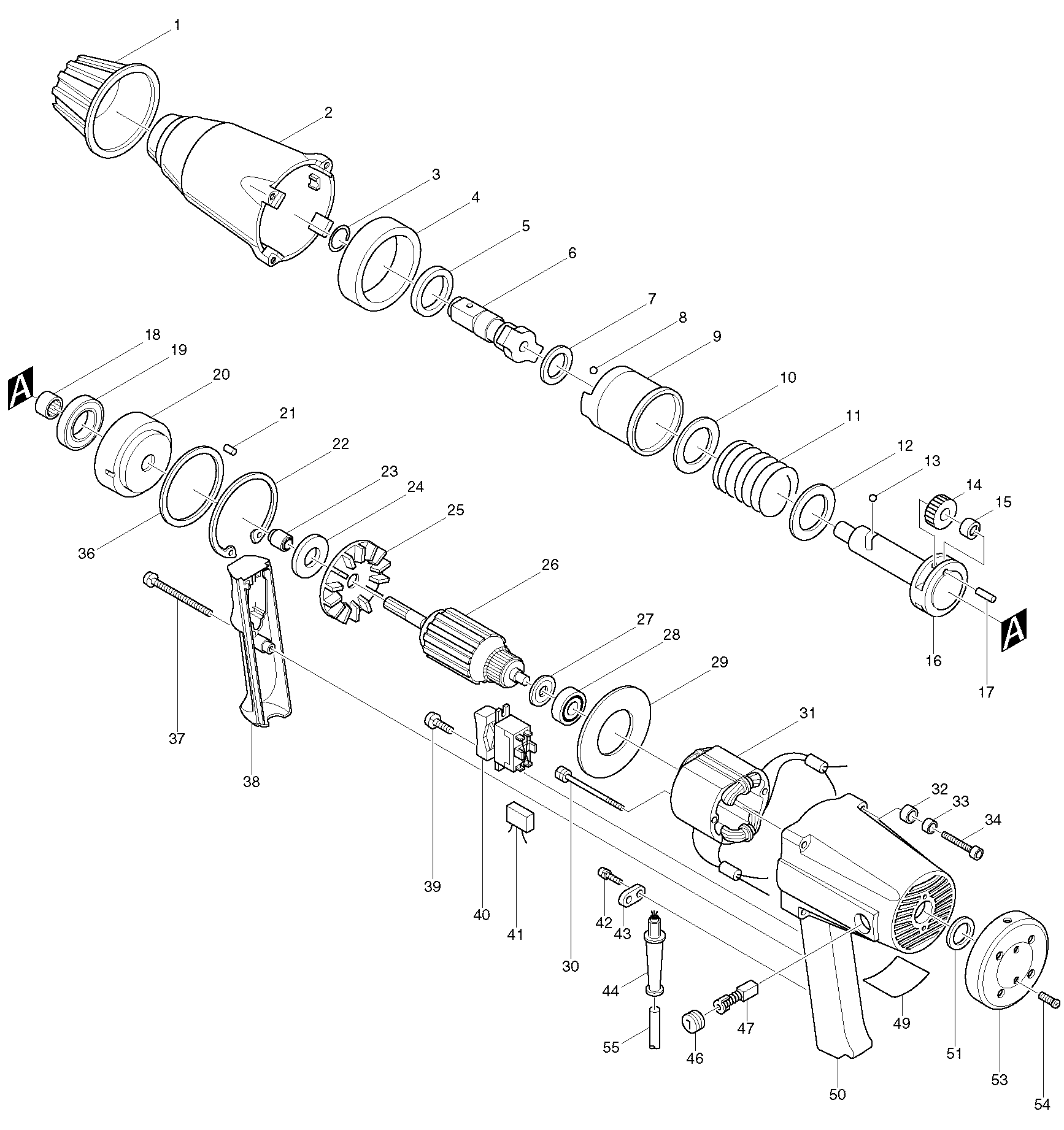

Sheet 1: Makita 6906 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 421112-0 | Makita 421112-0 BUMPER FOR |
| 2 | 156087-1 | Makita 156087-1 HAMMER CASE |
| 3 | 231920-9 | Makita 231920-9 RING SPRING 16 FOR |
| 4 | 257040-1 | Makita 257040-1 RING 65 6906 |
| 5 | 253939-8 | Makita 253939-8 FLAT WASHER 25 |
| 6 | 325586-6 | Makita 325586-6 ANVIL |
| 7 | 261023-5 | Makita 261023-5 WASHER 27 |
| 8 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 9 | 325318-1 | Makita 325318-1 HAMMER |
| 10 | 253764-7 | Makita 253764-7 FLAT WASHER 30 |
| 11 | 231135-8 | Makita 231135-8 COMPRESSION SPRING 37 |
| 12 | 253765-5 | Makita 253765-5 FLAT WASHER 36 |
| 13 | 216009-4 | Makita 216009-4 STEEL BALL 7.1 |
| 14 | 221243-3 | Makita 221243-3 SPUR GEAR 29 |
| 15 | 212011-5 | Makita 212011-5 NEEDLE BEARING 609 |
| 16 | 325322-0 | Makita 325322-0 SPINDLE |
| 17 | 256041-6 | Makita 256041-6 PIN 6 |
| 18 | 212151-9 | Makita 212151-9 NEEDLE BEARING 1412 |
| 19 | 211441-7 | Makita 211441-7 BALL BEARING 3009 |
| 20 | 221242-5 | Makita 221242-5 INTERNAL GEAR 65 |
| 21 | 256040-8 | Makita 256040-8 PIN 5 |
| 22 | 962352-6 | Makita 962352-6 RETAINING RING R-75 |
| 23 | 216103-2 | Makita 216103-2 INNER RACE 1016 |
| 24 | 253180-3 | Makita 253180-3 FLAT WASHER 10, 6220D |
| 25 | 241609-1 | Makita 241609-1 FAN 73 |
| 26 | 512883-1 | Makita 512883-1 ARMATURE ASS'Y 220V |
| 27 | 681613-2 | Makita 681613-2 INSULATION WASHER |
| 28 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 29 | 413008-9 | Makita 413008-9 BAFFLE PLATE 6906 |
| 30 | 265350-2 | Makita 265350-2 PAN HEAD SCREW M5X70 |
| 31 | 527419-3 | Makita 527419-3 FIELD ASS Y 220V 6906 |
| 32 | 253929-1 | Makita 253929-1 CUP WASHER 5 |
| 33 | 262001-8 | Makita 262001-8 URETHANE RING 5, 6906 |
| 34 | 922262-9 | Makita 922262-9 HEX. SOCKET HEAD BOLT M5X |
| 36 | 253774-4 | Makita 253774-4 FLAT WASHER 65 |
| 37 | 911173-3 | Makita 911173-3 PAN HEAD SCREW M4X45 |
| 38 | 414959-9 | Makita 414959-9 HANDLE COVER |
| 39 | 911106-8 | Makita 911106-8 PAN HEAD SCREW M4X8, 5007NB |
| 40 | 651564-3 | Makita 651564-3 Switch SL220SD-4 for 6300LR 6905B 6013BR DA6300 6301LR |
| 41 | 645206-9 | Makita 645206-9 NOISE SUPPRESSOR LF1000 |
| 42 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 43 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 44 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 46 | 643600-9 | Makita 643600-9 Holder Cup for DA6300 |
| 47 | 181030-1 | Makita 181030-1 Carbon Brushes CB-100 for 6906 9005B 9901 PC1100 |
| 49 | 815088-5 | Makita 815088-5 NAME PLATE 6906 |
| 50 | 159414-1 | Makita 159414-1 MOTOR HOUSING |
| 51 | 262010-7 | Makita 262010-7 URETHANE RING 18 |
| 53 | 284065-2 | Makita 284065-2 REAR COVER |
| 54 | 922221-3 | Makita 922221-3 HEX. BOLT, GA9010 |
| 55 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
