Makita 6891D
Makita 6891D: exploded parts diagram, 1 sheet, 22 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6891D: 22 positions on 1 sheet

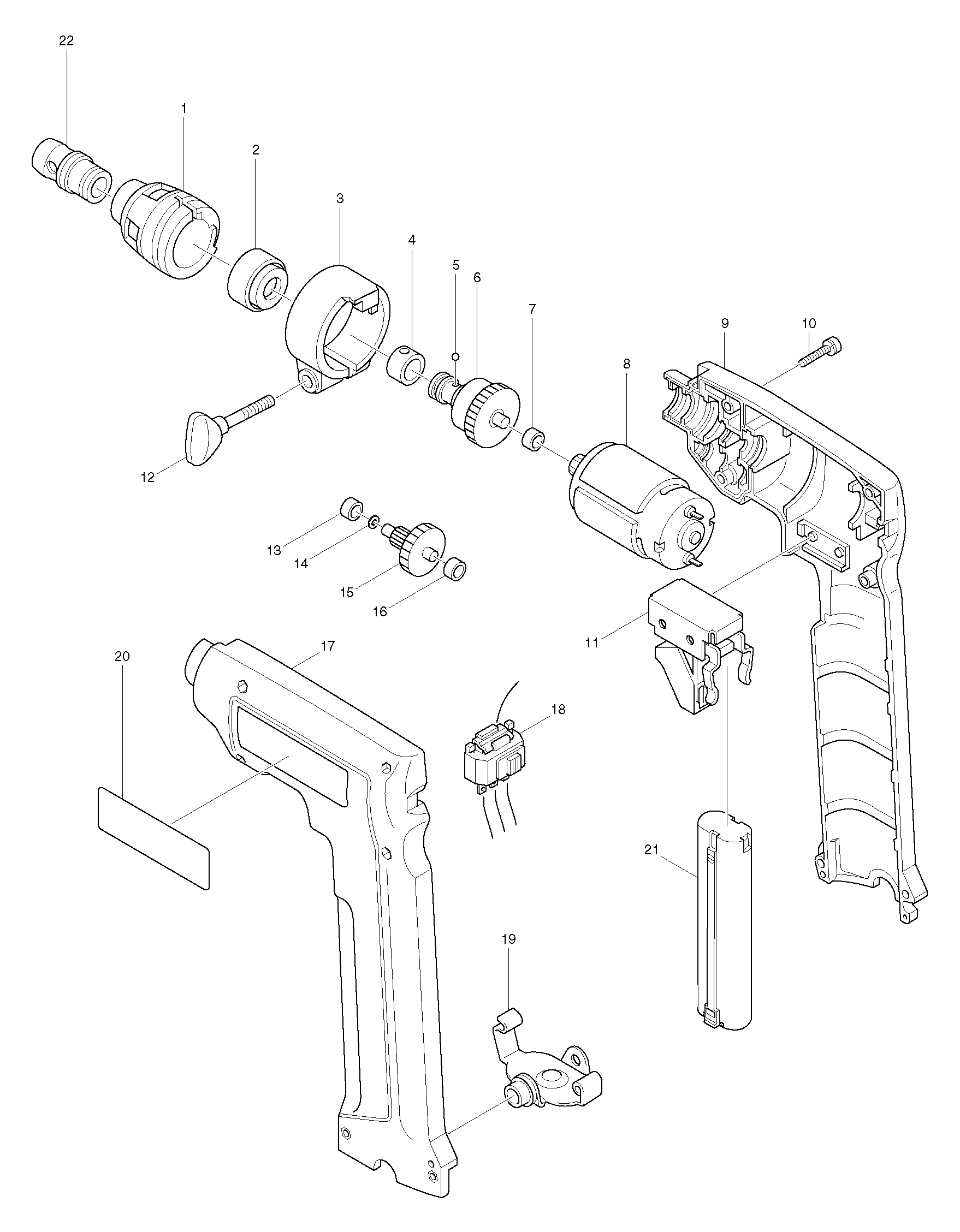

Sheet 1: Makita 6891D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 410908-4 | |
| 2 | 421314-8 | Makita 421314-8 DUST RING |
| 3 | 410907-6 | Makita 410907-6 LOCK RING |
| 4 | 232050-9 | Makita 232050-9 LEAF SPRING, 6827 |
| 5 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 6 | 153169-0 | |
| 7 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 8 | 629581-1 | Makita 629581-1 DC Motor 9.6V for 6095D UM1690D |
| 9 | 182138-4 | Makita 182138-4 HOUSING SET |
| 10 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 11 | 651354-4 | Makita 651354-4 SWITCH C3BF-AJ |
| 12 | 251880-9 | Makita 251880-9 SCREW M5X33 |
| 13 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 14 | 253811-4 | Makita 253811-4 FLAT WASHER 5, 5007MG |
| 15 | 226075-3 | |
| 16 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 17 | 182138-4 | Makita 182138-4 HOUSING SET |
| 18 | 531057-5 | Makita 531057-5 SWITCH ASSY C3BC-01 |
| 19 | 163157-9 | Makita 163157-9 SET PLATE |
| 20 | 855795-8 | Makita 855795-8 NAME PLATE 6891D |
| 21 | 191681-2 | |
| 22 | 152407-7 | Makita 152407-7 STOPPER COMPLETE |
